TOPTICLOCK

TOPTICLOCK

Supplier
Toptica-China
Part Number
TOPTICLOCK
Category
Research & Education
Origin
China

TOPTICLOCK is the world's first commercially available optical quantum clock based on a single laser-cooled, trapped ytterbium ion (Yb+). It offers unmatched precision and stability, making it a groundbreaking solution for timekeeping and synchronization in industrial and scientific applications.

Specification Snapshot
Power consumption after warm-up
<700W
Dimensions
2 rack compartments, together 2000x1600x1000mm^3 (HxWxD)
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

TOPTICLOCK is the world's first commercially available optical quantum clock based on a single laser-cooled, trapped ytterbium ion (Yb+). It offers unmatched precision and stability, making it a groundbreaking solution for timekeeping and synchronization in industrial and scientific applications.

Specifications

ParameterValue
Outputoptical, SM/PM fiber-coupled, 871nm, 1mW (with fiber-noise cancellation FNC)
Relative frequency instability<2·10^-15 (1s), <1·10^-16 (100s), <1·10^-16 (10,000s), <1·10^-17 (500,000s)
Relative frequency accuracy<5·10^-17, 2·10^-17 (typical)
Power consumption after warm-up<700W
Power Supply Voltage220-240V/50Hz or 110-120V/60Hz
Dimensions2 rack compartments, together 2000x1600x1000mm^3 (HxWxD)
Weight<1000kg
Optical quantum clock outputRF 10MHz/100MHz, 1PPS TTL
Relative frequency instability (100MHz)5·10^-15 (1s, typical), 1·10^-15 (100s, typical), <1·10^-16 (10,000s, typical)

Applications

1. National and international time services (UTC) and contributions to TAI (Temps Atomique International) 2. Network synchronization and long-term holdover in GNSS-denied environments (Global Navigation Satellite System) 3. Satellite navigation and space-based infrastructure 4. Fundamental quantum metrology and highest precision physics

Key Features

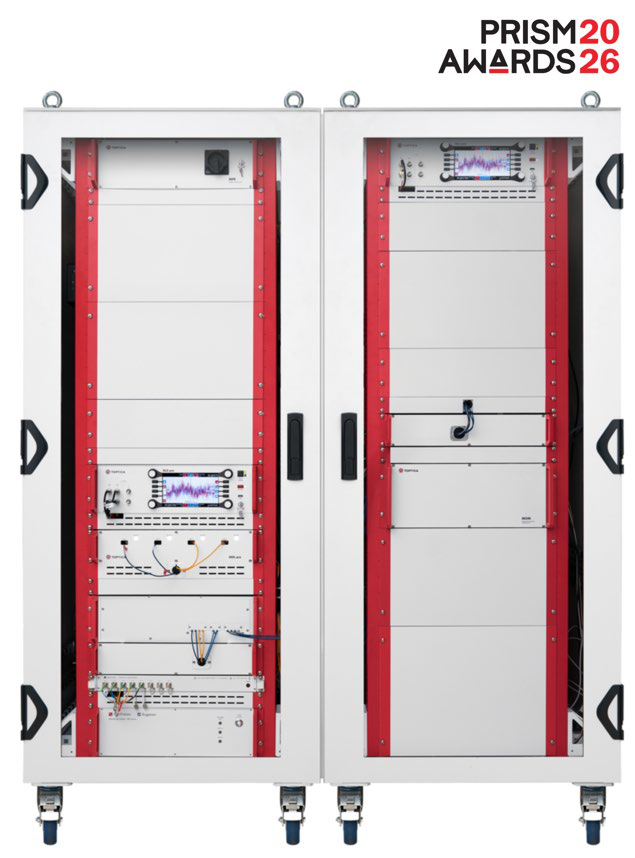

1. Laser-cooled trapped ytterbium ion for exceptional frequency precision 2. Fully integrated into two 19-inch industrial racks for reliable operation 3. Remote access and control for modern laboratory environments 4. Fiber optical output at 871nm 5. Seamless combination with TOPTICA’s optical frequency comb DFC for RF and PPS outputs 6. Customizable configurations to meet specific application needs

Datasheet

Product Datasheet
PDF
Download

Supplier Information

To
Toptica-China
View Supplier →
<p>The TOPTICA Group is headquartered in Grafelfen, near Munich, Germany. Based on this, we have grown into a family of photonics experts from around the world and have established further research and production bases in Rochester, New York, USA, and Bordeaux, Nouveau-Aquitaine, France. In addition, we have also established a global sales service network and cooperation system, such as TOPTICA Japan companies located in Tokyo and Osaka, and TOPTICA China companies located in Beijing and Shanghai. You can find TOPTICA's solid business network in various photonic technology hotspots around the world.</p><p><br></p><p>What is our core business? We develop and manufacture high-end laser systems for scientific discovery and industrial innovation. From semiconductor lasers and fiber lasers to amplifiers and frequency conversion technologies, we focus on providing high-quality photonic solutions.</p><p><br></p><p>As a group, we cover many important aspects of the photonics value chain. This started with the in-house design of laser diodes by TOPTICA EAGLEYARD, a member of the Group since 2013. We work closely with partners in the crystal and fiber fields to ensure seamless synergy of laser systems. Our business scope extends to many cutting-edge projects, such as building artificial guide stars for the world's largest astronomical telescopes in TOPTICA PROJECTS, and developing optical quantum clocks that can redefine time measurement. TOPTICA Group can provide a variety of photonics solutions from "rare earth elements to sodium guide stars".</p>
