TeraFlash pro
TeraFlash pro is a versatile time-domain terahertz platform designed for scientific applications, offering high dynamic range and bandwidth for precise measurements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Spectral Range | 0.1–6THz (typ. 6.5THz) |
| Spectral Peak Dynamic Range | 100dB |
| Usable Terahertz Path Length | 15–110cm, continuously adjustable via software |
| Laser Wavelength | 1560nm |
| Laser Pulse Width | typ. 50–80fs |
| External Fiber Length | 2.5m (other lengths u.r.) |
| Terahertz Emitter | PCA-TD-250-TX-1: InGaAs/InP photoconductive switch with strip-line antenna, 2.5m fiber pigtail |
| Terahertz Receiver | PCA-TD-250-TX-1: InGaAs/InP photoconductive switch with dipole antenna, 2.5m fiber pigtail |
| Antenna Package | Cylindrical, Ø25mm, integrated Si lens and SM/PM fiber pigtail |
| Number of Channels (Antenna Pairs) | 2 |
| Scan Range | 5–2500ps, software-controlled |
| Scan Speed | 166 traces/s (5ps), 95 traces/s (20ps), 60 traces/s (50ps), 6 traces/s (200ps) |
| Average Terahertz Power | typ. 70μW |
| Frequency Resolution @ Max. Scan Range | 0.4GHz |
| Computer Interface | Ethernet |
| Computer Software | GUI or command set |
| Size (HxWxD) | 180x450x560mm³ |
| System Weight | 20kg |
| Operating Voltage | 110/220V AC |
| Accessories | Transmission optomechanics |

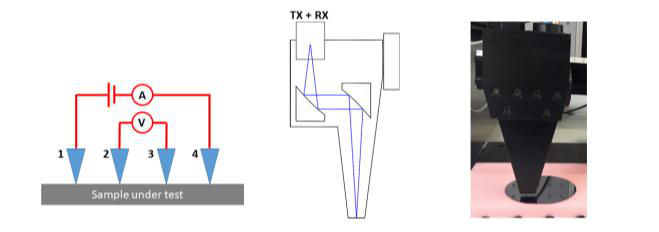

| Accessories | Reflection head |
| Accessories | Imaging extension |
Applications
Key Features
Datasheet
