8694 Digital Positioner

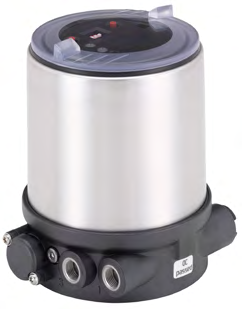

The 8694 digital positioner is designed for integration into process control valves, offering precise and reliable control with advanced features.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 4. Size on page 8 |
| Material | PPS |
| Material | EPDM |
| Material | PC |
| Protection Class | IP65/IP67 according to EN 60529, 4X according to NEMA 250 standard |
| Operating Voltage | 24VDC±25% |
| Power Consumption | ≤3.5W |
| Electrical Connection | M12, 8-pin, 4-pin |
| Electrical Protection | III according to DIN EN 61140 |
| Ambient Temperature | -10°C to +60°C |
| Control Air Supply Pressure | 0-7bar |
| Control Air Supply Port | G1/8 stainless steel |
| Stroke Range | 3-45mm |
| Communication Interface | AS-Interface, IO-Link, Bürkert system bus (büS) |
| Initialization Positioner | Automatic adjustment via X.TUNE |
| Status Indication | LED |
| Signal Input | 4-20mA, 0-20mA |
| Signal Output | 4-20mA (optional) |
| Ripple | Max 10% |
| Certification | ATEX |
| Certification | IECEx |
| Certification | UL |
| Certification | FM |
| Certification | CCC |
| Installation Method | Direct installation on ELEMENT 23xx/2103 control valves |
| Actuator Series/Size | 23xx series: 70/90mm, 130/225mm; 27xx series: 175/225mm |
| Control Accuracy | ±0.1mm |
| Cable Gland | M16×1.5 (cable Ø5-10mm) |
| Cable Length | 5m, 10m |
| Data Transmission Rate | 230.4kbit/s (COM3) |
| Explosion Protection Mode | II 3D Ex tc IIIC T135°C Dc, II 3G Ex ic IIC T4 Gc |
| Operating Altitude | Up to 2000m |
| Valve Type | ELEMENT 23xx/2103 |
| Control Signal | Digital |
| Control Signal | Analog |
| Valve Interface | G1/8 |
| Modular Design | Yes |
