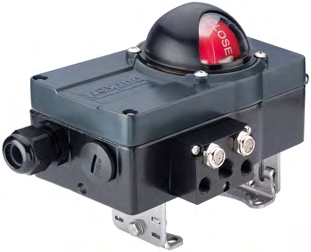

Type 1061 Position Feedback Unit
The Type 1061 combines the functions of a position feedback indicator and an optional solenoid valve in one unit. It is compatible with pneumatic rotary actuators and offers multiple variants for diverse applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Housing Material | Aluminium |
| Seal Material | PUR |
| Base Coating | RAL9005 |
| Cover Coating | RAL7016 |
| Dome Material | Polycarbonate |
| Switching Precision | <1.5° |
| Bracket | Adjustable |
| Hole Gauge | 80/130mm x 30mm |
| Height | 20/30mm |
| Switching Capacity | 4A, 230VAC |
| Ambient Temperature Without Solenoid Valve | -25°C...85°C |
| Ambient Temperature With 3/2-way Solenoid Valve | -10°C...55°C |
| Ambient Temperature With 5/2-way Solenoid Valve | -10°C...55°C |
| Degree of Protection | IP65 according to EN60529 |
| Limit Switch Type | Crouzet 83.161.301 Micro Switch |
| Inductive Sensor | Pepperl+Fuchs NBB2-V3-E2 |
| Solenoid Valve Type | Type 6524 (3/2-way), Type 6525 (5/2-way) |
| Solenoid Valve Operating Voltage | 24VDC |
| Solenoid Valve Power | 0.8W |
| Solenoid Valve Orifice | 4mm |
| Solenoid Valve Air Connection | G1/4, G1/4 |
