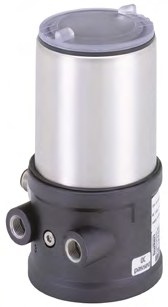

Type 8695 Control Head
The Type 8695 control head is designed for decentralized automation of ELEMENT Type 21xx pneumatic process valves with smaller nominal diameters. It features contact-free inductive valve position registration, integrated pilot air duct, and multicolored LED status display.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Body Material | PPS |
| Body Material | stainless steel |
| Seal Material | EPDM |
| Cover material | PC |
| Operating Keys | 2 |
| Service Interface | Connected to PC via USB connection |
| Configuration Tool | Burkert Communicator |
| Status Display | Multicolored LEDs |
| Communication | AS-Interface, IO-Link, Bürkert system bus (büS) |
| Position Sensor | Inductive (contactless) with self-adjusting switching points |
| Stroke Range for Linear Actuator | 2.5...32mm |
| Electrical Connection | Circular plug M12 |
| Control Medium | Neutral gases, air, quality class according to ISO 8573-1 |
| Dust Content | Class 7 (<40μm particle size) |
| Particle Density | Class 5 (<10mg/m³) |
| Pressure Dew Point | Class 3 (<-20°C) |
| Oil Content | Class X (<25mg/m³) |
| Supply Pressure | 0.7...7bar |
| Pilot Air Port | Threaded connection G1/4, stainless steel |
| Electrical Data - Operating Voltage | 24V DC ±25% |
| Electrical Data - Power Consumption | 2W or 5W at maximum load on one active digital output |
| Electrical Data - Protection Class | III according to DIN EN 61140 |
| Ambient Temperature Range | -10...+55°C (with pilot valve), -20...+60°C (without pilot valve) |
| Degree of Protection | IP65/IP67 according to EN 60529, 4X according to NEMA 250 Standard |
| Installation Position | Direct mounting |
| Installation Position | preferably upright |
| Installation Altitude | Up to 2000m above sea level |
