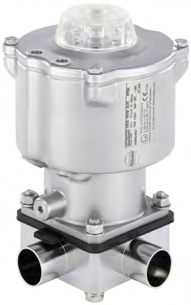

Robolux Pneumatic Multiway Diaphragm Valve
Compact design, space-saving installation, reduced installation costs, and minimized valve welds.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | 1.4435 stainless steel (316L), EPDM (AD), high-performance PTFE/EPDM (EK), composite GYLON®/EPDM (ER), 1.4308 stainless steel (CF8) |
| Surface Roughness | Ra≤0.5μm (ASME BPE SF1) (external Ra≤1.6μm), Ra≤0.38μm (ASME BPE SF4/DIN HE4) (external Ra≤1.6μm) |
| Maximum Allowable Pressure | 6-10bar for RV50/70, 6-7bar for RV110 |
| Medium Temperature | EPDM (AD): -5°C to +130°C (+140°C for short-term use up to 60 minutes), High-performance PTFE/EPDM (EK): -5°C to +130°C (+140°C for short-term use up to 60 minutes), Composite GYLON®/EPDM (ER): -15°C to +130°C (+140°C for short-term use up to 60 minutes) |
| Ambient Temperature | 0°C to +60°C |
| Protection Class | IP65/IP67 compliant with EN 60529 standard |
| Connection Size | 1/4 inch to 2 inches, DN04-DN50 |
| Certification | ATEX, IECEx, FDA, USP, EC 1935/2004, TA-Luft |
Applications
Key Features
Datasheet
