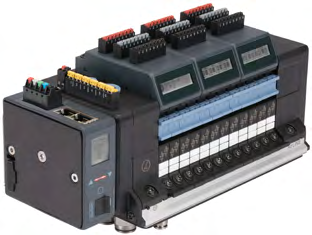

AirLINE Type 8652
AirLINE Type 8652 is designed for optimizing process automation with advanced valve island technology, ensuring safety and efficiency in industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to page 10 and 11 |
| Material | PA (Polyamide), NBR and PUR |
| Single Valve Width | 11mm |
| Number of Valves | Max 24, Max 48 |
| Circuit Function/Mode of Operation | Refer to page 7 |
| Pressure Range | 3-10bar |
| Flow Rate | 310l/min at +20°C, inlet pressure 6bar, outlet pressure 1bar |
| Switching Time | 15ms (open), 15ms (close) |
| Operating Voltage | 24VDC |
| Voltage Deviation | ±10% |
| Power Consumption | 0.7W (standby), 0.175W (operation) |
| Current Consumption | 29mA (standby), 7mA (operation) |
| Total Current | Max 48DI |
| Protection Class | IP20, IP65 |
| Ambient Temperature | -20°C to +60°C |
| Storage Temperature | -10°C to +55°C |
| Connection Type | PROFIBUS DP, PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CANopen |
