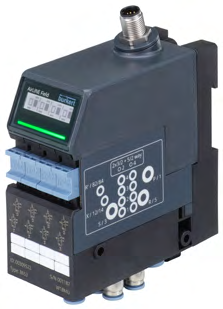

AirLINE Field Type 8653
The AirLINE Field Type 8653 is designed for optimizing process automation with advanced diagnostics and fieldbus connectivity.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 48.6mm |
| Material | PPA |
| Material | NBR |
| Material | PUR |
| Valve Width | 11mm |
| Maximum Number of Functional Modules | 8 |
| Electric Drive Operation Mode | Refer to 'Electrical Functions' |
| Pneumatic Interface Specifications | Not required |
| Pressure Range | 0-8bar |
| External Supply Pressure | 3-8bar |
| Flow Rate Qn | 310l/min |
| Switching Time | Continuous operation (100% ED) |
| Operating Voltage | 24VDC |
| Current Consumption | <400mA |
| Ambient Temperature | -10°C to +60°C |
| Operating Temperature | -10°C to +60°C |
| Protection Level | IP65, IP67 |
| Connection Type | D6, D8, D5/16 |
| Certification | UL Listed |
| Software | Burkert Communicator |
