Optical Prism
This optical prism is designed for precise light manipulation and is made from high-quality optical-grade materials such as K9 and BK7 glass. It offers excellent surface quality and is suitable for various optical applications.
Save to Favorites
Overview

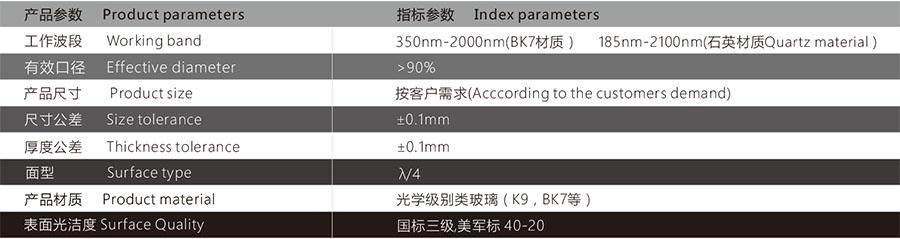

Specifications
| Parameter | Value |
|---|---|
| Working band (BK7 material) | 350nm-2000nm |
| Working band (Quartz material) | 185nm-2100nm |
| Effective diameter | >90% |
| Product size | According to the customers demand |
| Size Tolerance | ±0.1mm |
| Surface type | λ/4 |
Applications
