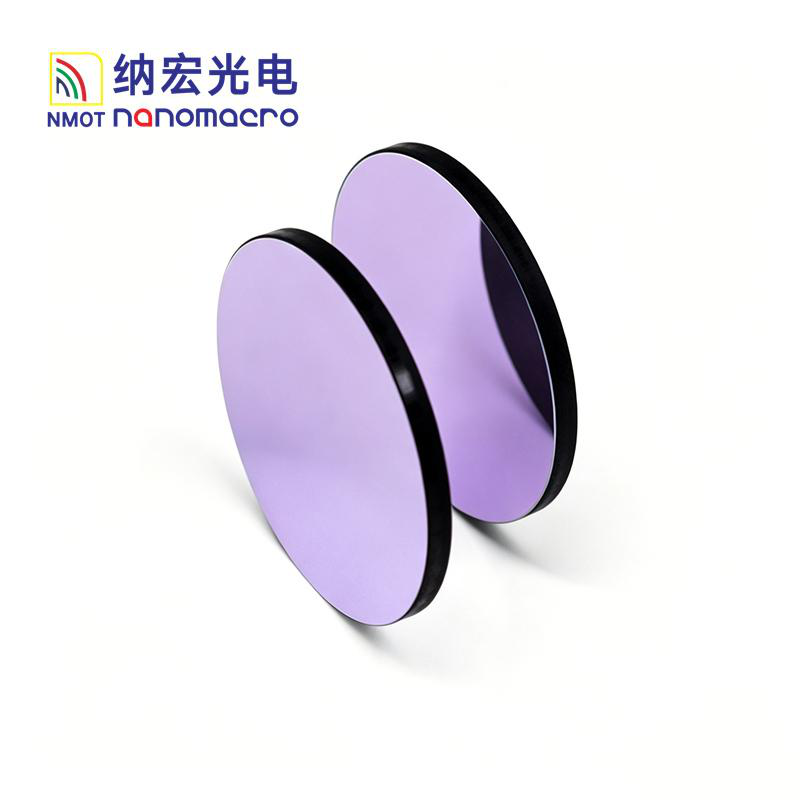

窄带滤光片
Narrowband filters are optical components designed to transmit a specific wavelength range while blocking others. These filters are widely used in various optical systems for precise wavelength selection.
Save to Favorites
Overview

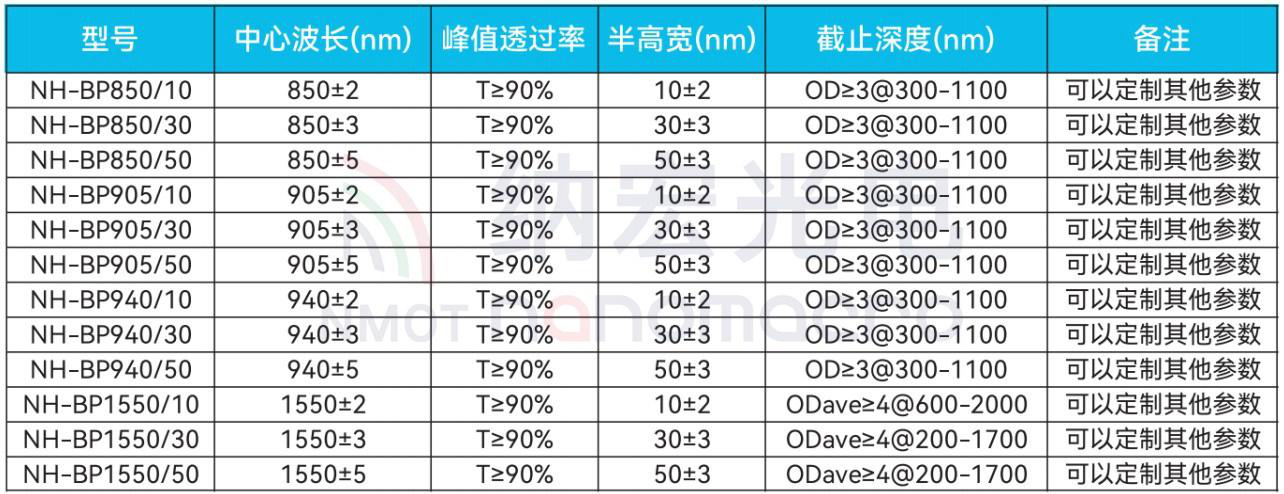

Specifications
| Parameter | Value |
|---|---|
| Model | NH-BP850/10, NH-BP850/30, NH-BP850/50, NH-BP905/10, NH-BP905/30, NH-BP905/50, NH-BP940/10, NH-BP940/30, NH-BP940/50, NH-BP1550/10, NH-BP1550/30, NH-BP1550/50 |
| Central Wavelength (nm) NH-BP850/10 | 850±2 |
| Central Wavelength (nm) NH-BP850/30 | 850±3 |
| Central Wavelength (nm) NH-BP850/50 | 850±5 |
| Central Wavelength (nm) NH-BP905/10 | 905±2 |
| Central Wavelength (nm) NH-BP905/30 | 905±3 |
| Central Wavelength (nm) NH-BP905/50 | 905±5 |
| Central Wavelength (nm) NH-BP940/10 | 940±2 |
| Central Wavelength (nm) NH-BP940/30 | 940±3 |
| Central Wavelength (nm) NH-BP940/50 | 940±5 |
| Central Wavelength (nm) NH-BP1550/10 | 1550±2 |
| Central Wavelength (nm) NH-BP1550/30 | 1550±3 |
| Central Wavelength (nm) NH-BP1550/50 | 1550±5 |
| Peak Transmittance NH-BP850/10 | T≥90% |
| Peak Transmittance NH-BP850/30 | T≥90% |
| Peak Transmittance NH-BP850/50 | T≥90% |
| Peak Transmittance NH-BP905/10 | T≥90% |
| Peak Transmittance NH-BP905/30 | T≥90% |
| Peak Transmittance NH-BP905/50 | T≥90% |
| Peak Transmittance NH-BP940/10 | T≥90% |
| Peak Transmittance NH-BP940/30 | T≥90% |
| Peak Transmittance NH-BP940/50 | T≥90% |
| Peak Transmittance NH-BP1550/10 | T≥90% |
| Peak Transmittance NH-BP1550/30 | T≥90% |
| Peak Transmittance NH-BP1550/50 | T≥90% |
| FWHM (nm) NH-BP850/10 | 10±2 |
| FWHM (nm) NH-BP850/30 | 30±3 |
| FWHM (nm) NH-BP850/50 | 50±3 |
| FWHM (nm) NH-BP905/10 | 10±2 |
| FWHM (nm) NH-BP905/30 | 30±3 |
| FWHM (nm) NH-BP905/50 | 50±3 |
| FWHM (nm) NH-BP940/10 | 10±2 |
| FWHM (nm) NH-BP940/30 | 30±3 |
| FWHM (nm) NH-BP940/50 | 50±3 |
| FWHM (nm) NH-BP1550/10 | 10±2 |
| FWHM (nm) NH-BP1550/30 | 30±3 |
| FWHM (nm) NH-BP1550/50 | 50±3 |
| Blocking Depth NH-BP850/10 | OD≥3@300-1100 |
| Blocking Depth NH-BP850/30 | OD≥3@300-1100 |
| Blocking Depth NH-BP850/50 | OD≥3@300-1100 |
| Blocking Depth NH-BP905/10 | OD≥3@300-1100 |
| Blocking Depth NH-BP905/30 | OD≥3@300-1100 |
| Blocking Depth NH-BP905/50 | OD≥3@300-1100 |
| Blocking Depth NH-BP940/10 | OD≥3@300-1100 |
| Blocking Depth NH-BP940/30 | OD≥3@300-1100 |
| Blocking Depth NH-BP940/50 | OD≥3@300-1100 |
| Blocking Depth NH-BP1550/10 | ODave≥4@600-2000 |
| Blocking Depth NH-BP1550/30 | ODave≥4@600-2000 |
| Blocking Depth NH-BP1550/50 | ODave≥4@600-2000 |
