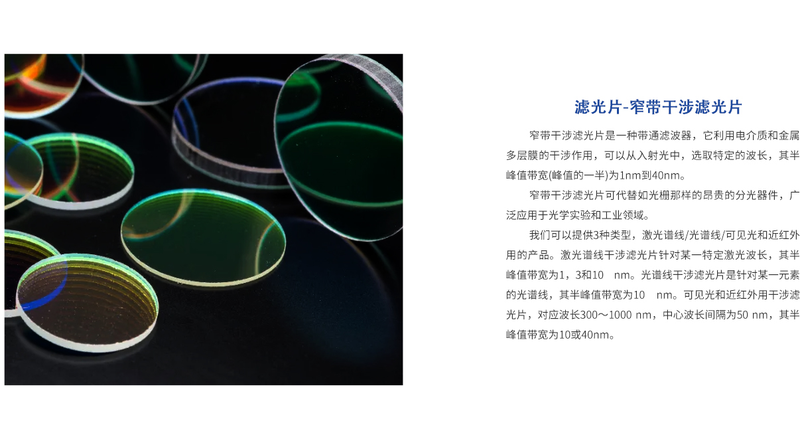

A narrowband interference filter is a bandpass filter that selects specific wavelengths using interference in dielectric and metallic multilayer coatings.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

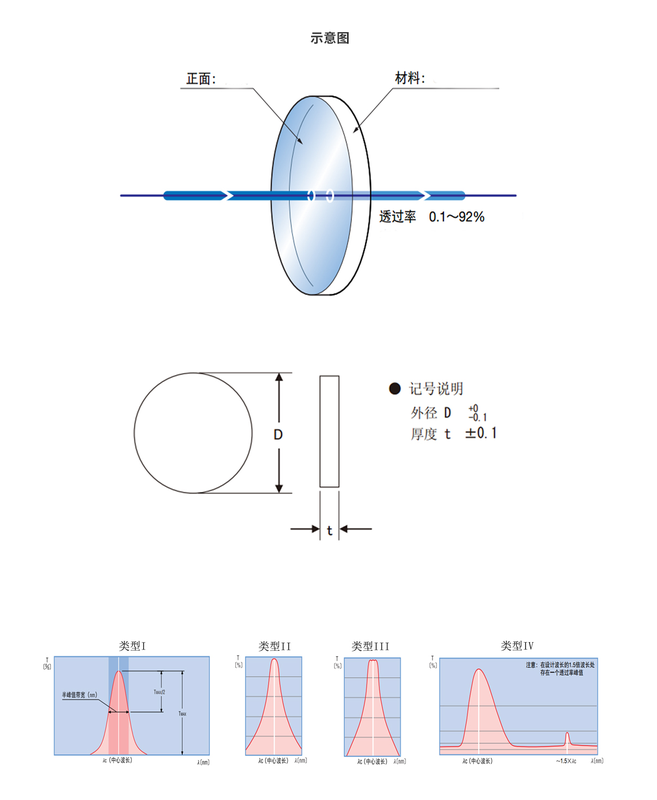

A narrowband interference filter is a bandpass filter that selects specific wavelengths using interference in dielectric and metallic multilayer coatings. Its full width at half maximum ranges from 1nm to 40nm. It can replace expensive dispersive components such as gratings in optical experiments and industrial applications. Three types are available: laser-line, spectral-line, and visible/near-infrared filters. Laser-line filters target a specific laser wavelength with FWHM values of 1, 3 or 10 nm. Spectral-line filters target an element's spectral line with 10 nm FWHM. Visible/near-infrared filters cover 300–1000nm at 50 nm center-wavelength intervals, with 10 or 40nm FWHM.

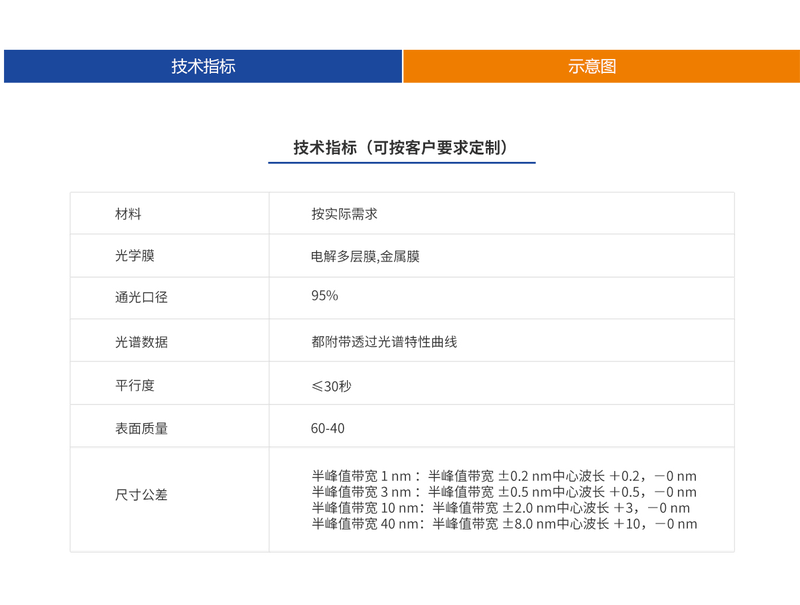

Specifications

ParameterValue
MaterialAs Required
Optical CoatingElectrolytic Multilayer Coating, Metal Coating
Clear Aperture95%
Parallelism≤30 arcsec
Surface Quality60-40
Dimensional Tolerance - Full Width at Half Maximum [Full Width at Half Maximum 1nm]±0.2nm
Dimensional Tolerance - Center Wavelength [Full Width at Half Maximum 1nm]+0.2 nm,−0nm
Dimensional Tolerance - Full Width at Half Maximum [Full Width at Half Maximum 3nm]±0.5nm
Dimensional Tolerance - Center Wavelength [Full Width at Half Maximum 3nm]+0.5 nm,−0nm
Dimensional Tolerance - Full Width at Half Maximum [Full Width at Half Maximum 10nm]±2.0nm
Dimensional Tolerance - Center Wavelength [Full Width at Half Maximum 10nm]+3 nm,−0nm
Dimensional Tolerance - Full Width at Half Maximum [Full Width at Half Maximum 40nm]±8.0nm
Dimensional Tolerance - Center Wavelength [Full Width at Half Maximum 40nm]+10 nm,−0nm
