XDR-100
The XDR-100 is a high-precision optical inspection device designed for advanced material analysis and quality control. It features a compact design and cutting-edge technology for accurate and efficient performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Resolution | 0.1nm |
| Measurement Range | 0-100mm |
| Power Supply Voltage | 220V |
| Dimensions | 400x300x250mm |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-

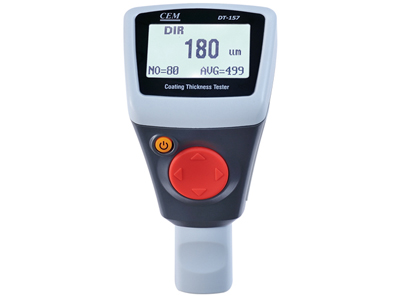

Coating Thickness Gauge DT-157
Size Measurement
Cem-meter
Working Principle [Ferromagnetic]: Magnetic induction Working Principle [Non-ferromagnetic]: Eddy current Measuring Range [Ferromagnetic]: 0~2000 μm
DT-157 is a newly developed high-precision, fast-response, multi-functional coating thickness gauge by CEM; it integrates automatic switching between magnetic and non-magnetic measurement; DT-157 is an upgraded version of the DT-156 coating thickness gauge, and is a new type of high-precision coating thickness gauge; compared with DT-156, it has higher precision, a wider measurement range, simpler operation, and more powerful functions.
-

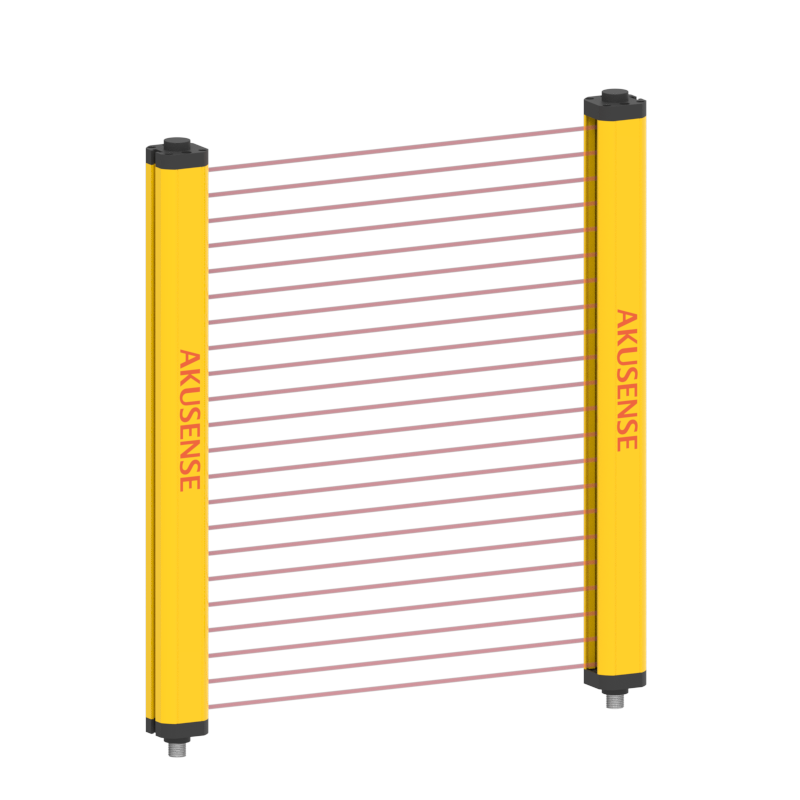

BAL02-T12803A BAL series measuring light curtain
Size Measurement
Akusense
Working Principle: Photoelectric sensor Detection method: Through-beam Light source: Infrared LED
-

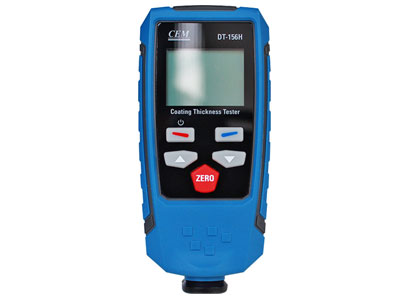

DT-156H Coating thickness gauge
Size Measurement
Cem-meter
Working Principle [Ferromagnetic]: Magnetic induction Working Principle [Non-ferromagnetic]: Eddy current Measuring range [Ferromagnetic/non-ferromagnetic]: 0~1350 μm
The DT-156H is a higher-precision thickness gauge launched by CEM based on the original DT-156.
-

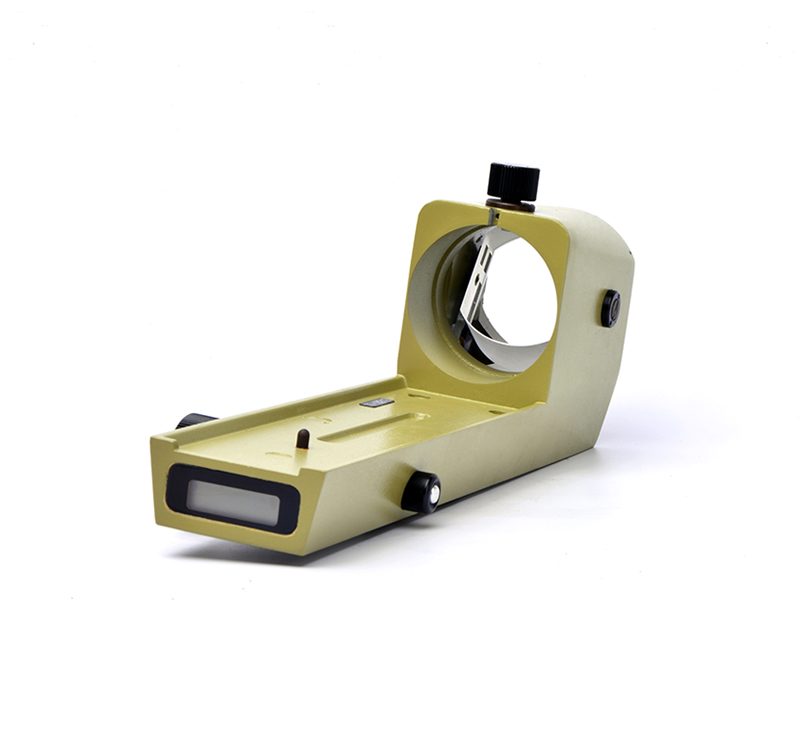

Plate Micrometer (DPM)
Size Measurement
Cnzhongxing
-

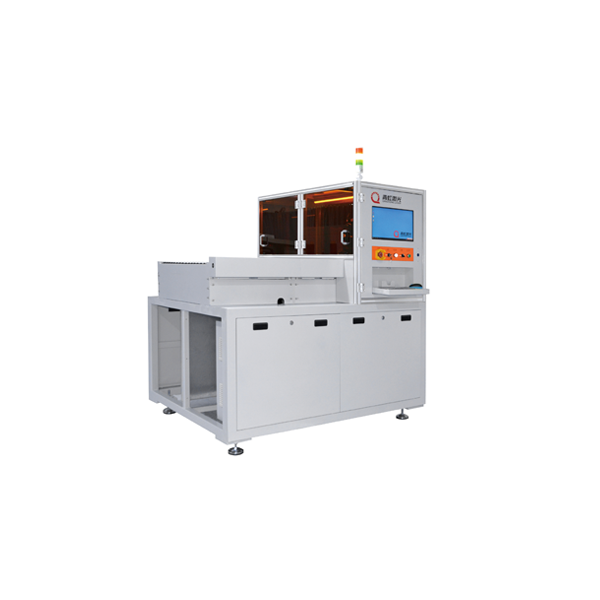

Hole-surface copper thickness inspection (BM-QK01)
Size Measurement
Qhlaser
Hole copper detection range: 5~80 um Hole copper detection accuracy: ±5 % Surface copper detection range: 0.25~200 um
Mainly used for surface copper thickness and hole copper thickness inspection of PCB copper-clad laminates; usually arranged after the electroplating line to determine the quality of electroplating and the stability of electroplated copper thickness, and to adjust actual electroplating parameters based on inspection data.; ● Adopts imported well-known brand hole copper inspection instruments, with reliable accuracy and stability;; ● In-line equipment, connected to the electroplating line, to achieve full inspection of every board;; ● The equipment is equipped with an independently developed QR code recognition system, which can accurately read the QR code on the board surface and achieve data binding;; ● Floating mechanism design for the hole copper probe to avoid accidental damage;; ● Independently developed software, meeting personalized and customized needs, supporting MES system integration.; Copper-clad laminate hole-surface copper thickness inspection
