DryICE Cryostat
DryICE Cryostat is a high-performance cooling system designed for scientific research and industrial applications, offering ultra-low temperatures and customizable features.
Save to Favorites
Overview
Specifications

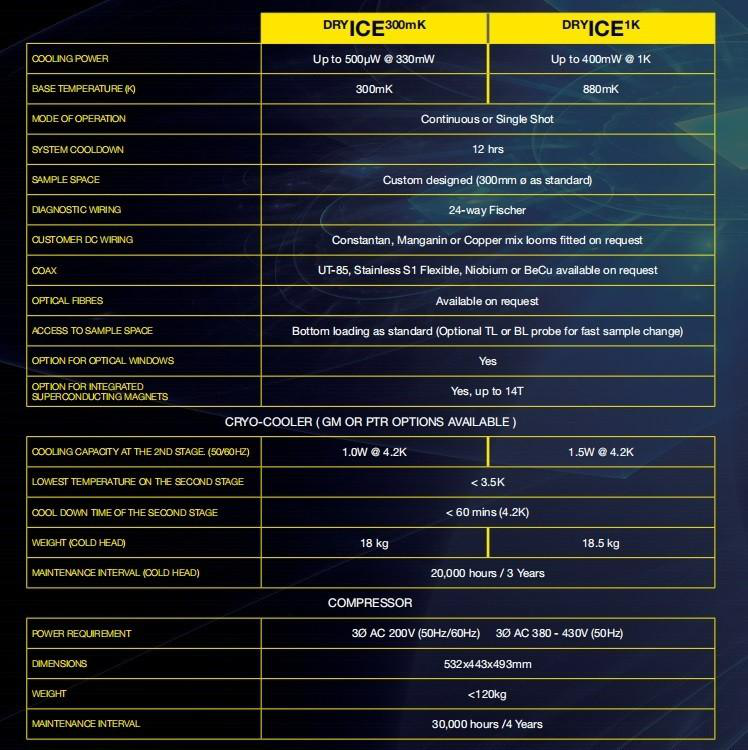

| Parameter | Value |
|---|---|
| Cooling Power (300mK) | Up to 500μW @ 330mW |
| Cooling Power (1K) | Up to 400mW @ 1K |
| Base Temperature (K) | 300mK, 880mK |
| Mode of Operation | Continuous or Single Shot |
| System Cooldown | 12 hrs |
| Sample Space | Custom designed (300mm Ø as standard) |
| Diagnostic Wiring | 24-way Fischer |
| Customer DC Wiring | Constantan |
| Customer DC Wiring | Manganin or Copper mix loops fitted on request |
| COAX | UT-85, Stainless S1 Flexible, Niobium or BeCu available on request |
| Optical Fibres | Available on request |
| Access to Sample Space | Bottom loading as standard (Optional TL or BL probe for fast sample change) |
| Option for Optical Windows | Yes |
| Option for Integrated Superconducting Magnets | Yes, up to 14T |
| Cooling Capacity at the 2nd Stage (50/60Hz) | 1.0W @ 4.2K, 1.5W @ 4.2K |
| Lowest Temperature on the Second Stage | <3.5K |
| Cool Down Time of the Second Stage | <60 mins (4.2K) |
| Weight (Cold Head) | 18kg, 18.5kg |
| Maintenance Interval (Cold Head) | 20,000 hours / 3 years |
| Compressor Power Requirement | 3Ø AC 200V (50Hz/60Hz), 3Ø AC 380-430V (50Hz) |
| Compressor Dimensions | 532x443x493mm |
| Compressor Weight | <120kg |
| Compressor Maintenance Interval | 30,000 hours / 4 years |
