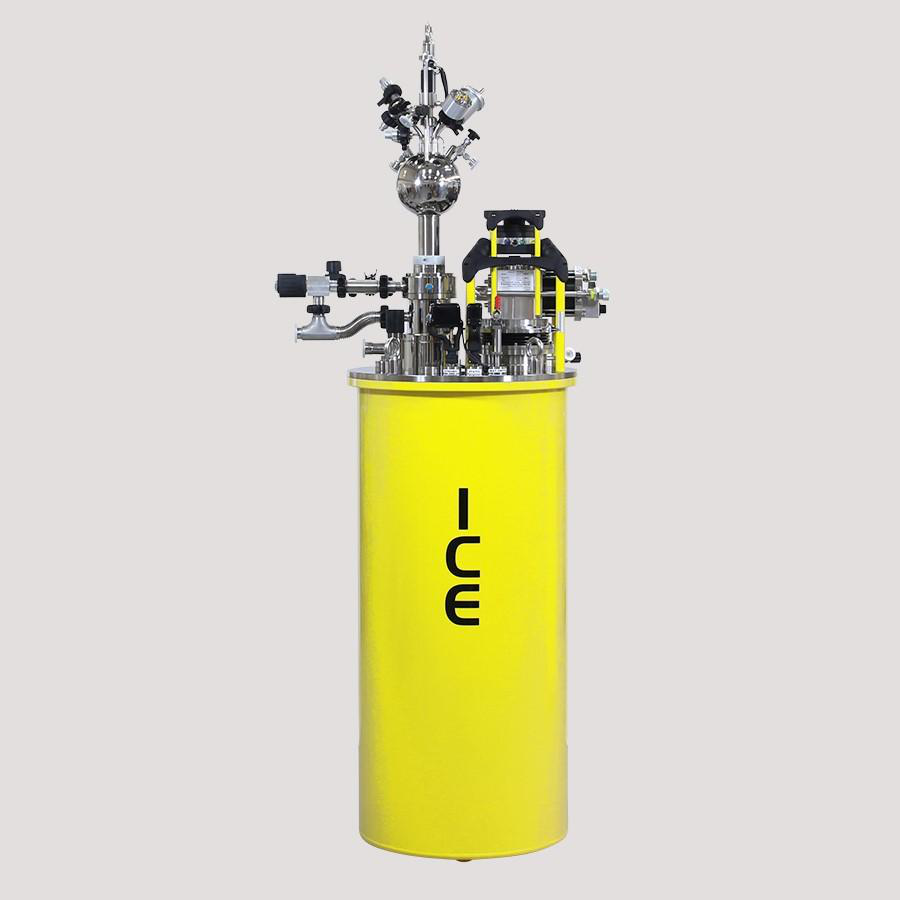

DRY ICE 1.5K
DRY ICE 1.5K is a high-performance cryogenic system designed for precise temperature control and sample manipulation, featuring advanced cooling power, integrated superconducting magnets, and versatile sample space options.
Save to Favorites
Overview

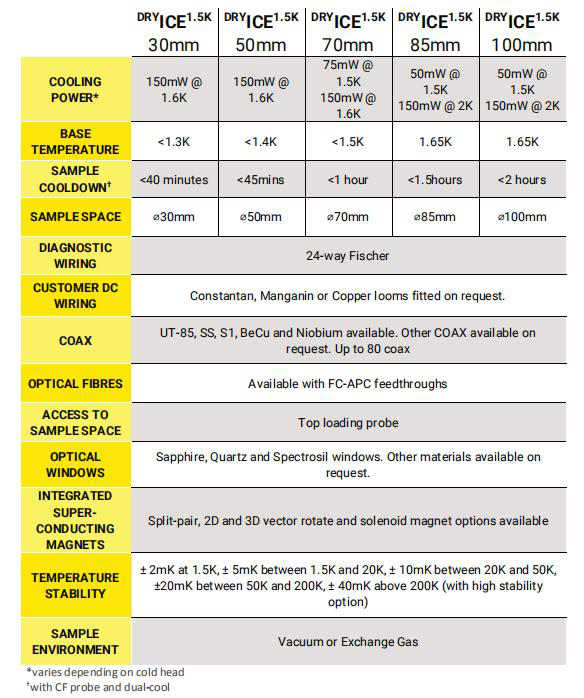

Specifications
| Parameter | Value |
|---|---|
| Cooling Power 30mm | 150mW@1.6K |
| Cooling Power 50mm | 150mW@1.6K |
| Cooling Power 70mm | 75mW@1.5K, 150mW@1.6K |
| Cooling Power 85mm | 50mW@1.5K, 150mW@2K |
| Cooling Power 100mm | 50mW@1.5K, 150mW@2K |
| Base Temperature 30mm | <1.3K |
| Base Temperature 50mm | <1.4K |
| Base Temperature 70mm | <1.5K |
| Base Temperature 85mm | 1.65K |
| Base Temperature 100mm | 1.65K |
| Sample Cooldown 30mm | <40minutes |
| Sample Cooldown 50mm | <45minutes |
| Sample Cooldown 70mm | <1hour |
| Sample Cooldown 85mm | <1.5hours |
| Sample Cooldown 100mm | <2hours |
| Sample Space 30mm | Ø30mm |
| Sample Space 50mm | Ø50mm |
| Sample Space 70mm | Ø70mm |
| Sample Space 85mm | Ø85mm |
| Sample Space 100mm | Ø100mm |
| Diagnostic Wiring | 24-way Fischer |
| Customer DC Wiring | Constantan |
| Customer DC Wiring | Manganin or Copper looms fitted on request |
| COAX | UT-85, SS, S1, BeCu and Niobium available. Other COAX available on request. Up to 80 coax |
| Optical Fibres | Available with FC-APC feedthroughs |
| Access to Sample Space | Top loading probe |
| Optical Windows | Sapphire, Quartz and Spectrosil windows. Other materials available on request |
| Integrated Superconducting Magnets | Split-pair, 2D and 3D vector rotate and solenoid magnet options available |
| Temperature Stability | ±2mK@1.5K, ±5mK between 1.5K and 20K, ±10mK between 20K and 50K, ±20mK between 50K and 200K, ±40mK above 200K (with high stability option) |
| Sample Environment | Vacuum or Exchange Gas |
