Narrow Pulse Width PIV Series Green Light Solid Laser
The Narrow Pulse Width PIV Series Green Light Solid Laser is a high-energy, compact, and versatile laser system designed for precision applications such as glass engraving, micro-cutting, 3D internal carving, and thin glass cutting. It features excellent beam quality, high pulse stability, and efficient cooling for reliable performance.
Save to Favorites
Overview

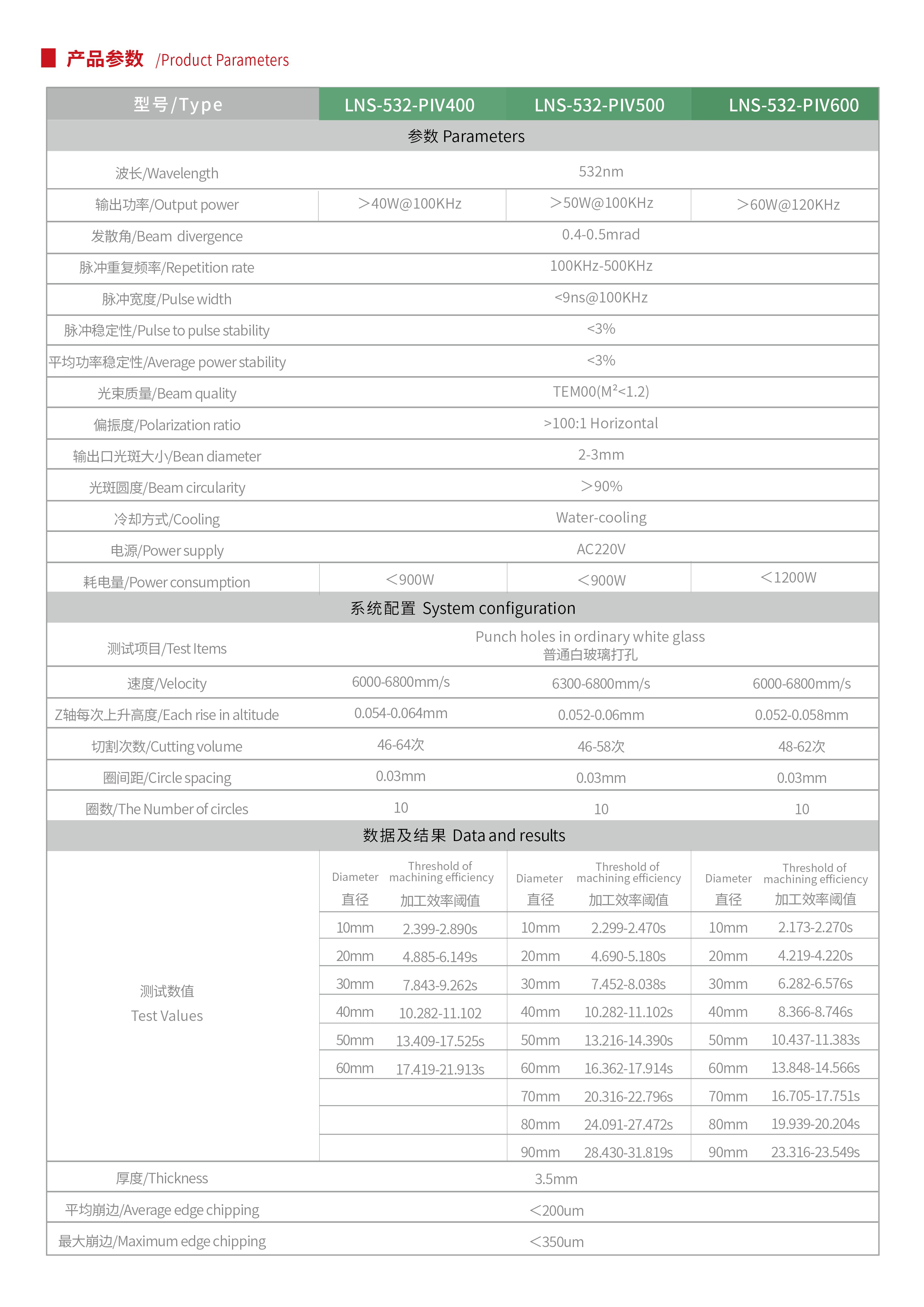

Specifications
| Parameter | Value |
|---|---|
| Output power LNS-532-PIV400 | >40W@100KHz |
| Output power LNS-532-PIV500 | >50W@100KHz |
| Output power LNS-532-PIV600 | >60W@120KHz |
| Beam Divergence | 0.4-0.5mrad |
| Repetition rate | 100KHz-500KHz |
| Pulse width | <9ns@100KHz |
| Pulse to pulse stability | <3% |
| Polarization Ratio | >100:1 Horizontal |
| Beam Diameter | 2-3mm |
| Beam Circularity | >90% |
| Cooling | Water-cooling |
| Power Supply | AC220V |
| Power consumption LNS-532-PIV400 | <900W |
| Power consumption LNS-532-PIV500 | <900W |
| Power consumption LNS-532-PIV600 | <1200W |
| Test items | Punch holes in ordinary white glass |
| Velocity LNS-532-PIV400 | 6000-6800mm/s |
| Velocity LNS-532-PIV500 | 6300-6800mm/s |
| Velocity LNS-532-PIV600 | 6000-6800mm/s |
| Each rise in altitude LNS-532-PIV400 | 0.054-0.064mm |
| Each rise in altitude LNS-532-PIV500 | 0.052-0.06mm |
| Each rise in altitude LNS-532-PIV600 | 0.052-0.058mm |
| Cutting volume LNS-532-PIV400 | 46-64次 |
| Cutting volume LNS-532-PIV500 | 46-58次 |
| Cutting volume LNS-532-PIV600 | 48-62次 |
| Circle spacing | 0.03mm |
| The number of circles | 10 |
| Maximum edge chipping | <350um |
