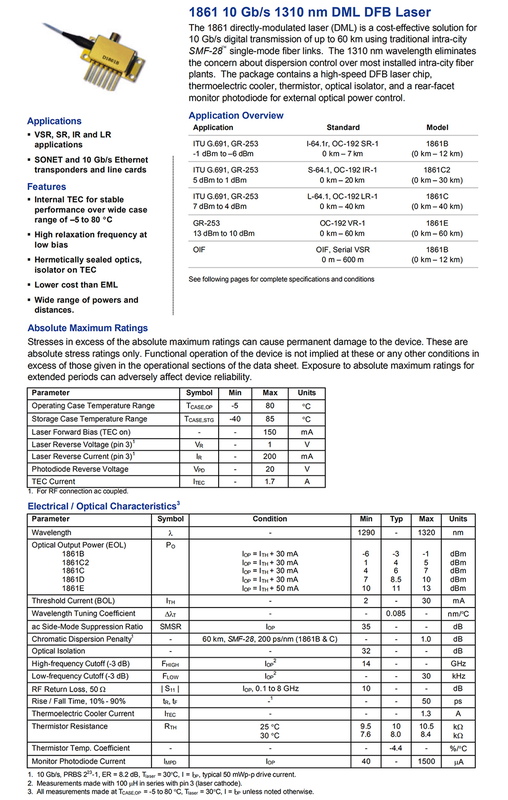

Directly modulated laser 10G DML Emcore or Agere 1861 Series 1310nm 1861D
The 1861 directly-modulated laser (DML) is a cost-effective solution for 10 Gb/s digital transmission of up to 60 km using traditional intra-city SMF-28™ single-mode fiber links. The 1310 nm wavelength eliminates the concern about dispersion control over most installed intra-city fiber plants. The package contains a high-speed DFB laser chip, thermoelectric cooler, thermistor, optical isolator, and a rear-facet monitor photodiode for external optical power control.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 绝对最大额定值 — 工作外壳温度范围 TCASE,OP [仅为极限应力额定值；不表示可在该条 Items下正常工作] | min:-5 °C；max:80 °C |
| 绝对最大额定值 — 储存外壳温度范围 TCASE,STG [仅为极限应力额定值；不表示可在该条 Items下正常工作] | min:-40 °C；max:85 °C |
| 绝对最大额定值 — 激光器正向偏置 [仅为绝对应力额定值；不表示可正常运行 / TEC开启] | max:150 mA |
| 绝对最大额定值 — 激光器反向电压 VR [仅为绝对应力额定值；不表示可正常运行 / 引脚3；RF连接采用交流耦合] | max:1 V |
| 绝对最大额定值 — 激光器反向电流 IR [仅为绝对应力额定值；不表示可正常运行 / 引脚3；RF连接采用交流耦合；源文mA按原文保留] | max:200 mA |
| 绝对最大额定值 — 光电二极管反向电压 VPD [仅为极限应力额定值；不表示可在该条 Items下正常工作] | max:20 V |
| 绝对最大额定值 — TEC电流 ITEC [仅为极限应力额定值；不表示可在该条 Items下正常工作] | max:1.7 A |
| 电气/光学 — 光输出功率(EOL) Po [所有电学/光学测量：除非另有说明，TCASE,OP=-5至80°C、Tlaser=30°C、I=Ib / 寿命终点（EOL）；Iop=ITH+30mA] | min:7 dBm；typical:8.5 dBm；max:10 dBm |
| 电气/光学 — 波长 λ [所有电气/光学测量：TCASE,OP=-5至80°C，Tlaser=30°C，I=Ib，除非另有说明] | min:1290 nm；max:1320 nm |
| 电气/光学 — 阈值电流(BOL) ITH [所有电气/光学测量：TCASE,OP=-5至80°C，Tlaser=30°C，I=Ib，除非另有说明 / BOL] | min:2 mA；max:30 mA |
| 电气/光学 — 波长调谐系数 ΔλT [所有电气/光学测量：TCASE,OP=-5至80°C，Tlaser=30°C，I=Ib，除非另有说明] | typical:0.085 nm/°C |
| 电气/光学 — 交流边模抑制比 SMSR [所有电学/光学测量：除非另有说明，TCASE,OP=-5至80°C、Tlaser=30°C、I=Ib / Iop] | min:35 dB |
| 电气/光学 — 光隔离度 [所有电气/光学测量：TCASE,OP=-5至80°C，Tlaser=30°C，I=Ib，除非另有说明] | min:32 dB |
| 电气/光学 — 高频截止频率(-3dB) FHIGH [所有电学/光学测量：除非另有说明，TCASE,OP=-5至80°C、Tlaser=30°C、I=Ib / Iop；100µH与引脚3（激光器阴极）串联] | min:14 GHz |
| 电气/光学 — 低频截止频率(-3dB) FLOW [所有电学/光学测量：除非另有说明，TCASE,OP=-5至80°C、Tlaser=30°C、I=Ib / Iop；100µH与引脚3（激光器阴极）串联] | max:30 kHz |
| 电气/光学 — RF回波损耗,50Ω |S11| [所有电学/光学测量：除非另有说明，TCASE,OP=-5至80°C、Tlaser=30°C、I=Ib / Iop；0.1至8GHz] | min:10 dB |
| 电气/光学 — 上升/下降时间,10%–90% tR,tF [所有电学/光学测量：除非另有说明，TCASE,OP=-5至80°C、Tlaser=30°C、I=Ib / 10Gb/s、PRBS2²³−1、ER=8.2dB、Tlaser=30°C、I=Ib，典型50mW峰峰值驱动电流（源文字面内容；驱动单位尚未解决）] | max:50 ps |
| 电气/光学 — 热电制冷器电流 ITEC [所有电气/光学测量：TCASE,OP=-5至80°C，Tlaser=30°C，I=Ib，除非另有说明] | max:1.3 A |
| 电气/光学 — 热敏电阻阻值 RTH [所有电气/光学测量：TCASE,OP=-5至80°C，Tlaser=30°C，I=Ib，除非另有说明 / 25°C] | min:9.5 kΩ；typical:10 kΩ；max:10.5 kΩ |
| 电气/光学 — 热敏电阻阻值 RTH [所有电气/光学测量：TCASE,OP=-5至80°C，Tlaser=30°C，I=Ib，除非另有说明 / 30°C] | min:7.6 kΩ；typical:8.0 kΩ；max:8.4 kΩ |
| 电气/光学 — 热敏电阻温度系数 [所有电气/光学测量：TCASE,OP=-5至80°C，Tlaser=30°C，I=Ib，除非另有说明] | typical:-4.4 %/°C |
| 电气/光学 — 监测光电二极管电流 IMPD [所有电学/光学测量：除非另有说明，TCASE,OP=-5至80°C、Tlaser=30°C、I=Ib / Iop] | min:40 µA；max:1500 µA |
Applications
Key Features
Datasheet
