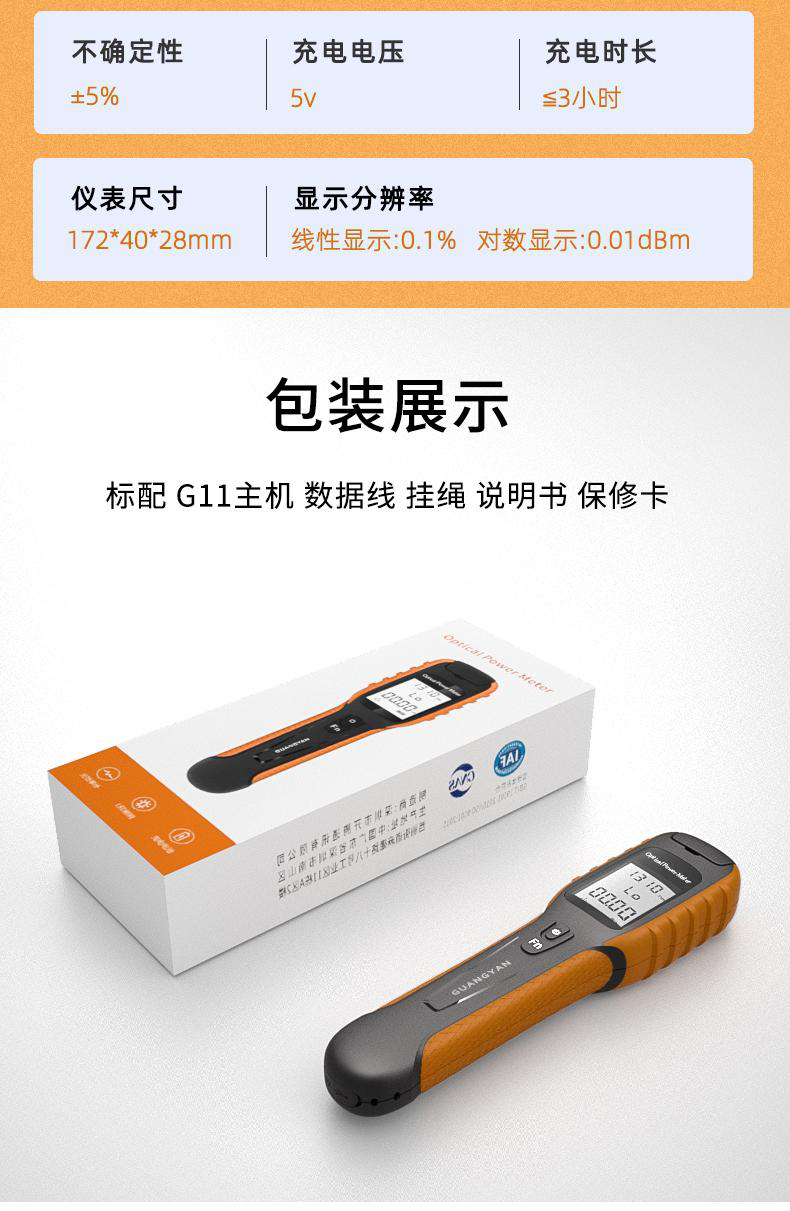

G11 Optical Power Meter
The G11 Optical Power Meter is a high-precision device designed for measuring optical power across a wide wavelength range. It features user-friendly controls, multiple wavelength options, and a compact design for convenient use in various optical applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 800~1700nm |
| Connector | ST FC/SC (Universal) |
| Detector Type | InGaAs |
| Measurement Range | -70~+6, -70~+10, -50~+26 |
| Output Wavelength | 850nm, 980nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm |
| Static Current | ≤18uA |
| Operating Current | ≤25mA |
| Power Supply | Rechargeable lithium battery 350mA |
| Uncertainty | ±5% |
| Charging Voltage | 5V |
| Charging Time | ≤3 hours |
| Instrument Dimensions | 172*40*28mm |
| Display Resolution | Linear display: 0.1%, Relative display: 0.01dBm |
