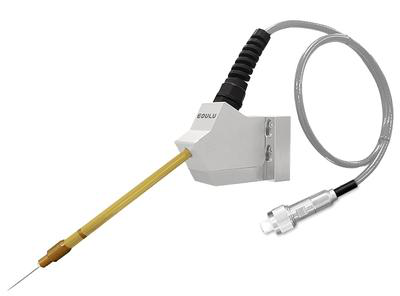

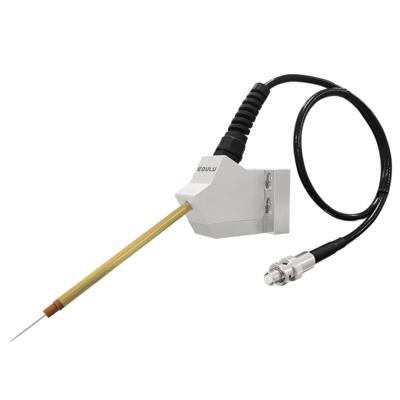

HP-001 Ultra High Power Probe
The HP-001 Ultra High Power Probe is designed for high voltage and current testing, offering exceptional performance and reliability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Voltage | 10000VDC@200°C, 8000V@300°C |
| Maximum Current | 300Apulse (withstand maximum 600Apulse)/20ADC |
| Temperature Range | -60°C~300°C |
| Interface Type | High Voltage Banana (4mm) |
| Cable Length | 1m |
| Compatible Positioner Type | Dedicated Positioner |
| Contact Resistance | <0.05mΩ (12 fingers, Au pad), <0.20mΩ (8 fingers, Au pad), <0.50mΩ (4 fingers, Au pad), <1.00mΩ (1 finger, Au pad) |
| Probe Insulation Resistance | >10TΩ@25°C (Chuck temperature), >3TΩ@200°C (Chuck temperature), >1TΩ@300°C (Chuck temperature) |
| Overtravel | 125~250μm |
| Probe Tip Size | ~150μm@300μm overtravel |
| Probe Tip Diameter | ≤250μm |
| Probe Tip Pitch | 650μm |
Applications
Key Features
Datasheet
