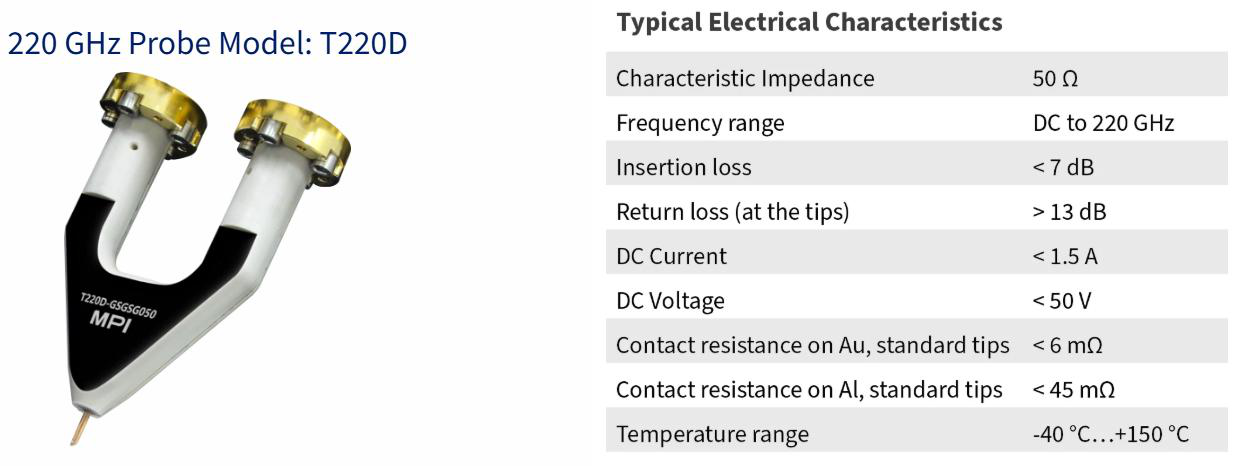

TITAN™ Probe Series
The TITAN™ Probe Series offers advanced RF probes designed for high-frequency and high-power applications. These probes are equipped with MEMS contact tips, ensuring unmatched calibration accuracy and reliability across a wide frequency range. They are ideal for RF testing, mmWave devices, and S-parameter measurements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Characteristic Impedance | 50Ω |
| Frequency Range | DC to 220GHz |
| Insertion Loss (dB) | <5 |
| Return Loss (dB) | ≥9 |
| Tip End Return Loss (dB) | ≥13 |
| DC Current | ≤1.5A |
| DC Voltage | ≤50V |
| Contact Resistance on Au, Standard Tips | <6mΩ |
| Contact Resistance on Al, Standard Tips | <45mΩ |
| Temperature range | -40°C to +150°C |
| Pitch Range | 50 to 125μm with 25μm step |
| Contact width | 15μm |
| Recommended Pad Size | 20μm x 20μm |
| Recommended overtravel | 15μm |
| Lifetime Touchdowns | ≥200,000 |
