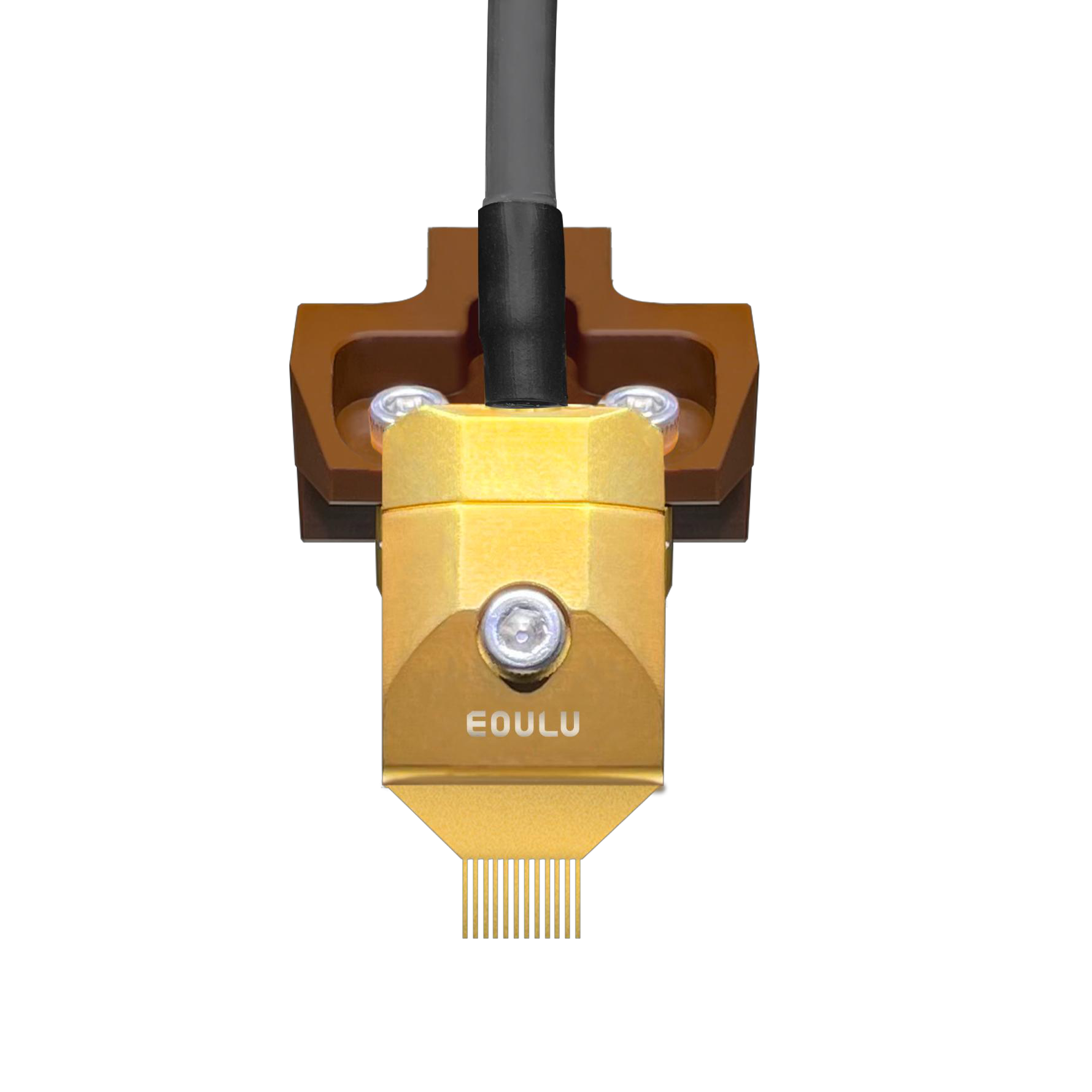

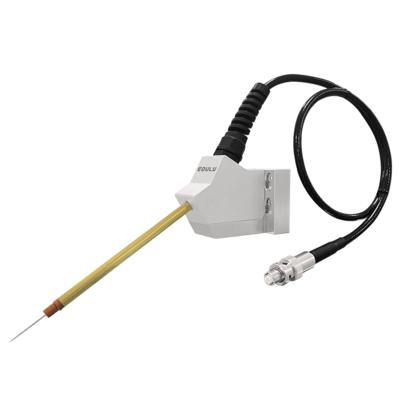

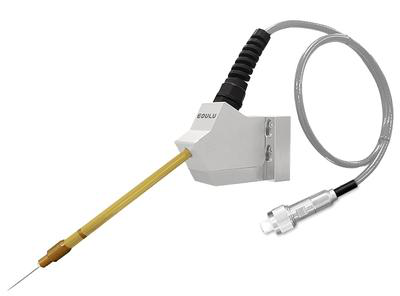

HP-001 Ultra High Power Probe
The HP-001 Ultra High Power Probe is designed for high voltage and current testing, featuring a robust design and high-temperature resistance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Voltage | 10000V DC @200°C, 8000V @300°C |
| Maximum Current | 300A pulse (withstand maximum 600A pulse)/20A DC |
| Temperature Range | -60°C~300°C |
| Interface Type | High Voltage Banana (4mm) |
| Cable Length | 1m |
| Compatible Equipment Type | Dedicated positioning device |
| Contact Resistance | <0.05mΩ (12 fingers, Au pad), <0.20mΩ (8 fingers, Au pad), <0.50mΩ (4 fingers, Au pad), <1.00mΩ (1 finger, Au pad) |
| Probe Insulation Resistance | >10TΩ @25°C (Chuck temperature), >3TΩ @200°C (Chuck temperature), >1TΩ @300°C (Chuck temperature) |
| Tip Material | Gold |
| Overtravel | 125~250μm, ~150μm @300μm overtravel |
| Tip Size | ≤250μm |
| Tip Pitch | 650μm |
