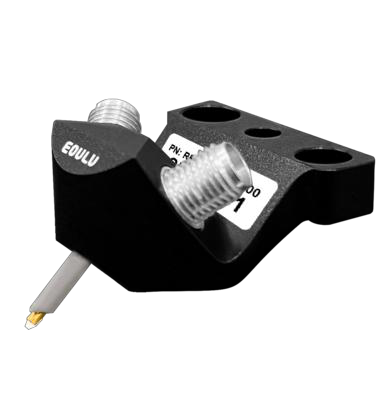

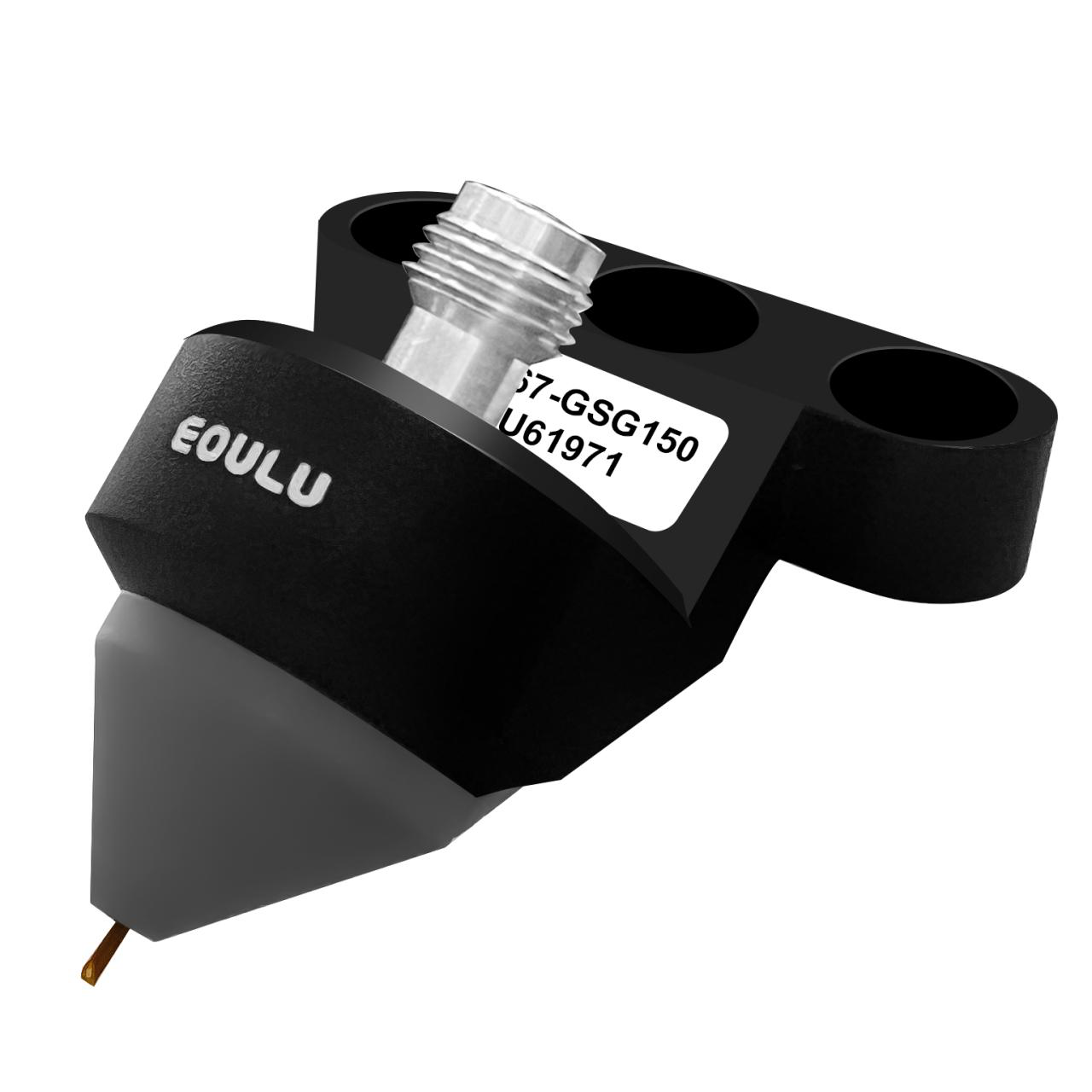

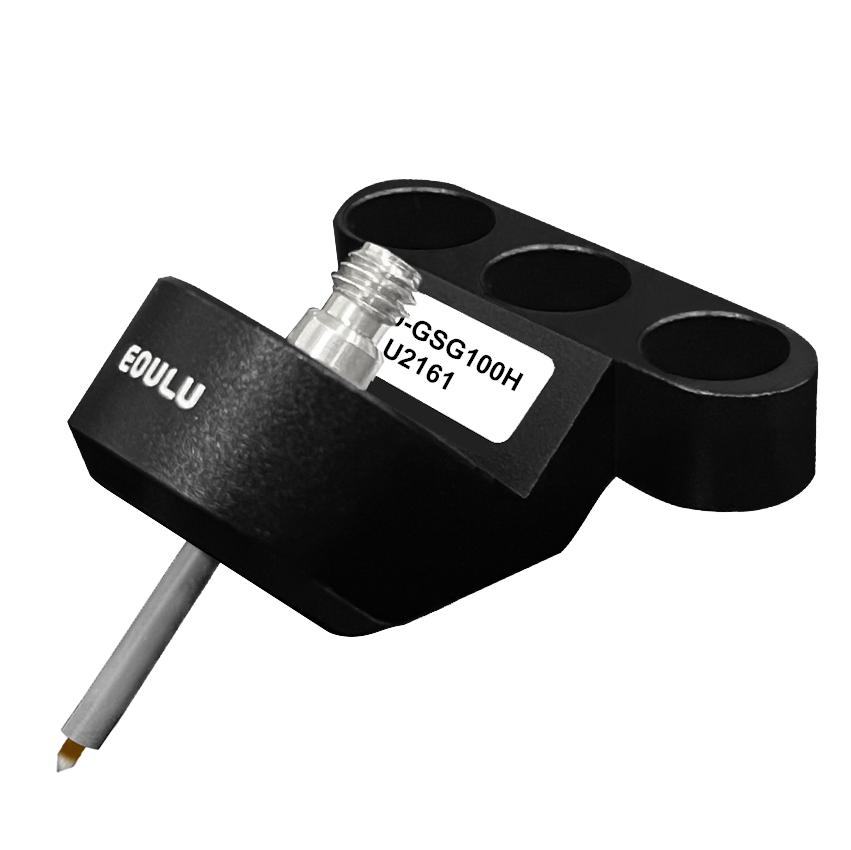

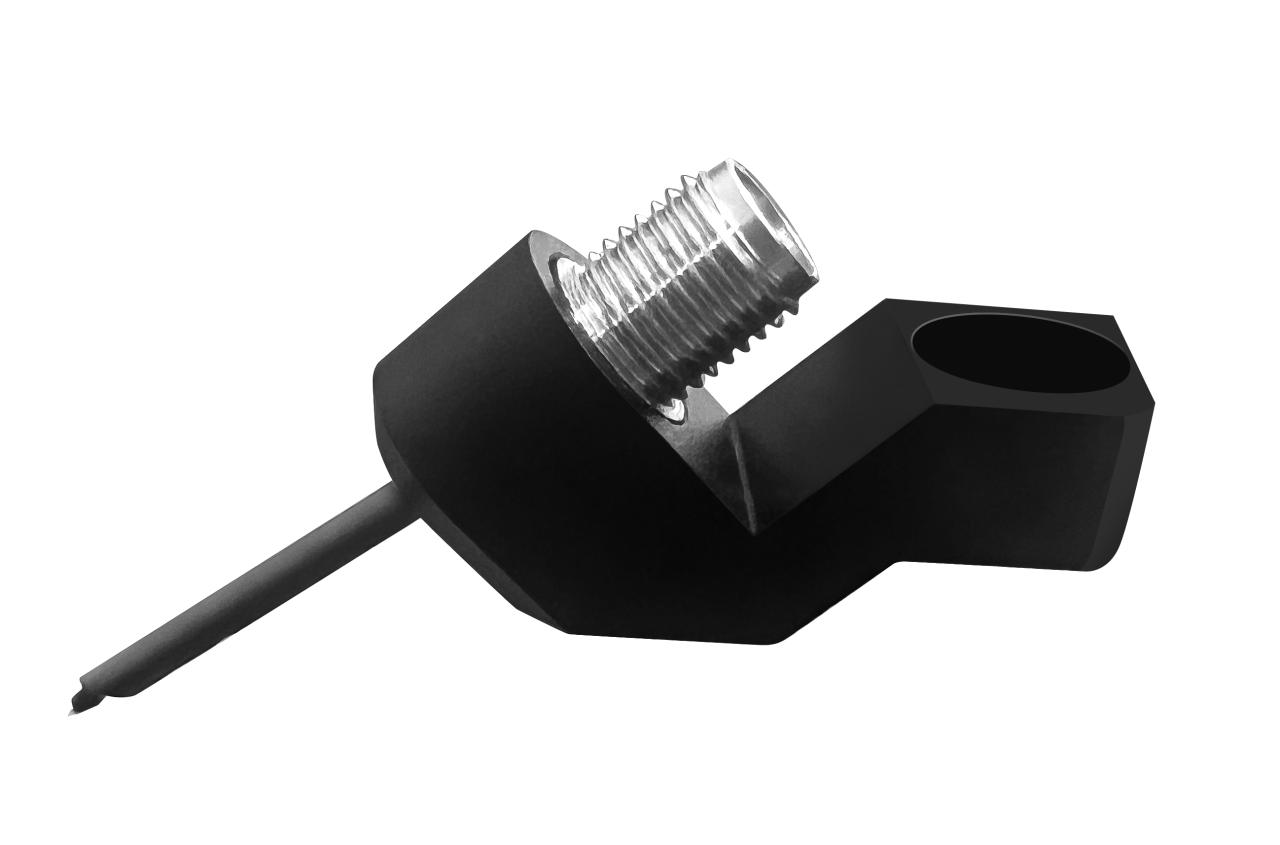

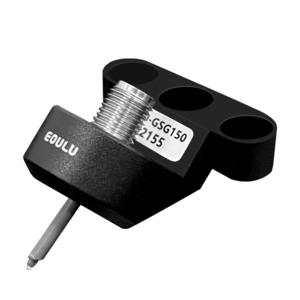

Eoulu Sky Series Probe Needle
Eoulu Sky Series Probe Needle is designed for high-frequency signal testing, offering excellent performance in temperature range and precision applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequency Range | DC-40GHz |
| Insertion Loss | 0.39dB-0.60dB |
| Return Loss | 17.0dB-28.15dB |
| Characteristic Impedance | 50Ω |
| Contact Resistance | <10mΩ |
| Maximum Current | 3A |
| Maximum DC Voltage | 200V |
| Probe Pitch | 50μm-1250μm (25μm step) |
| Tip Material | Gold alloy |
| Tip Material | Tungsten alloy |
| Durability | >1,000,000 |
| Operating Temperature Range | -60°C-200°C |
| Minimum Pad Size | 70×70μm |
