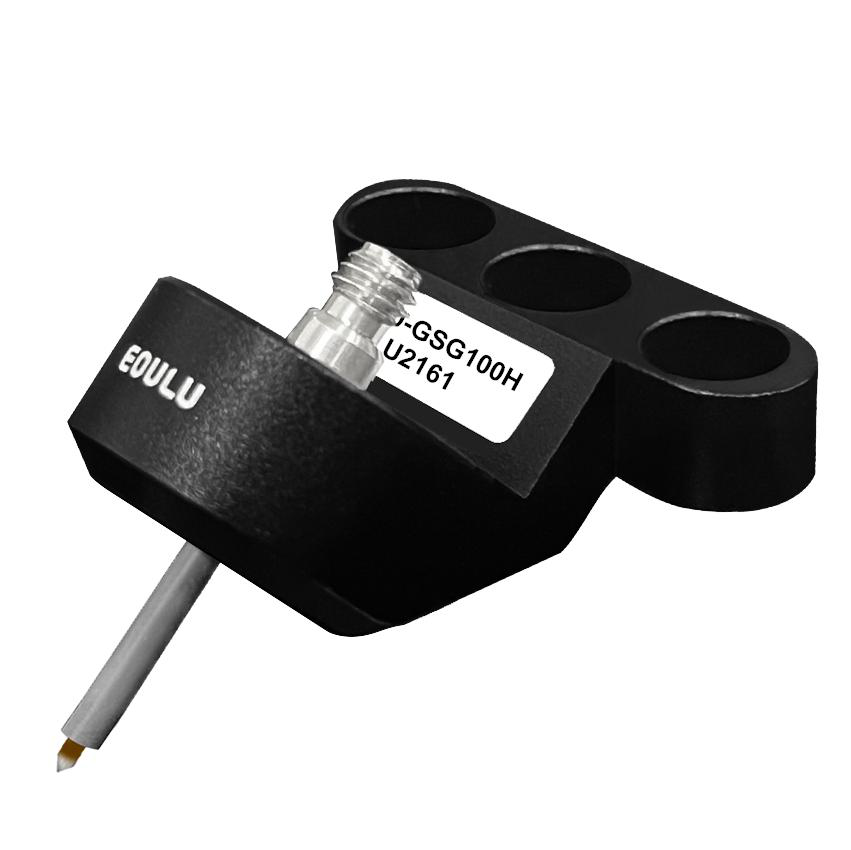

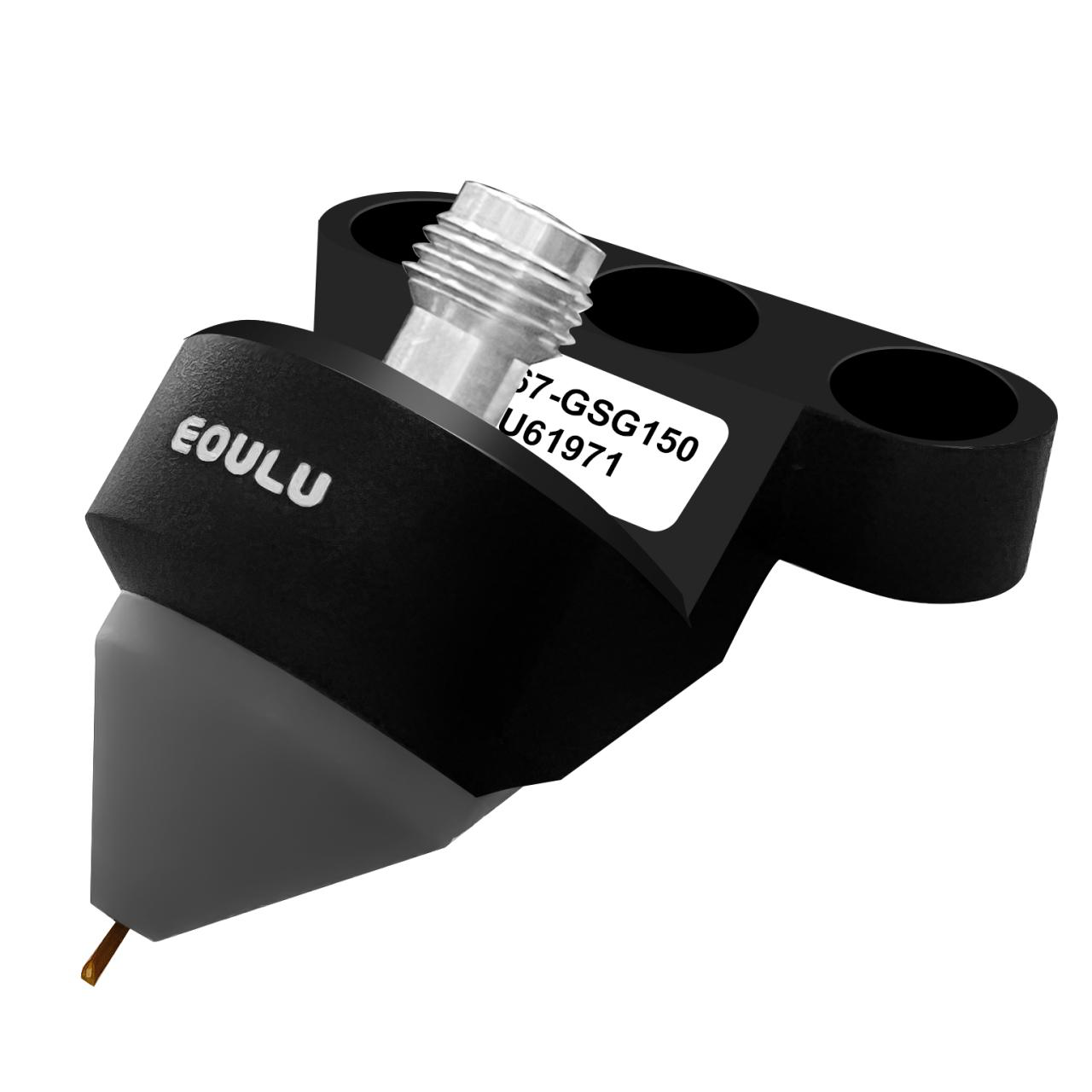

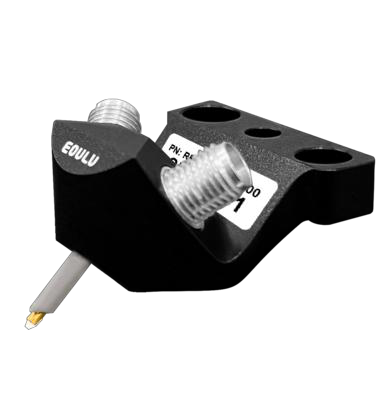

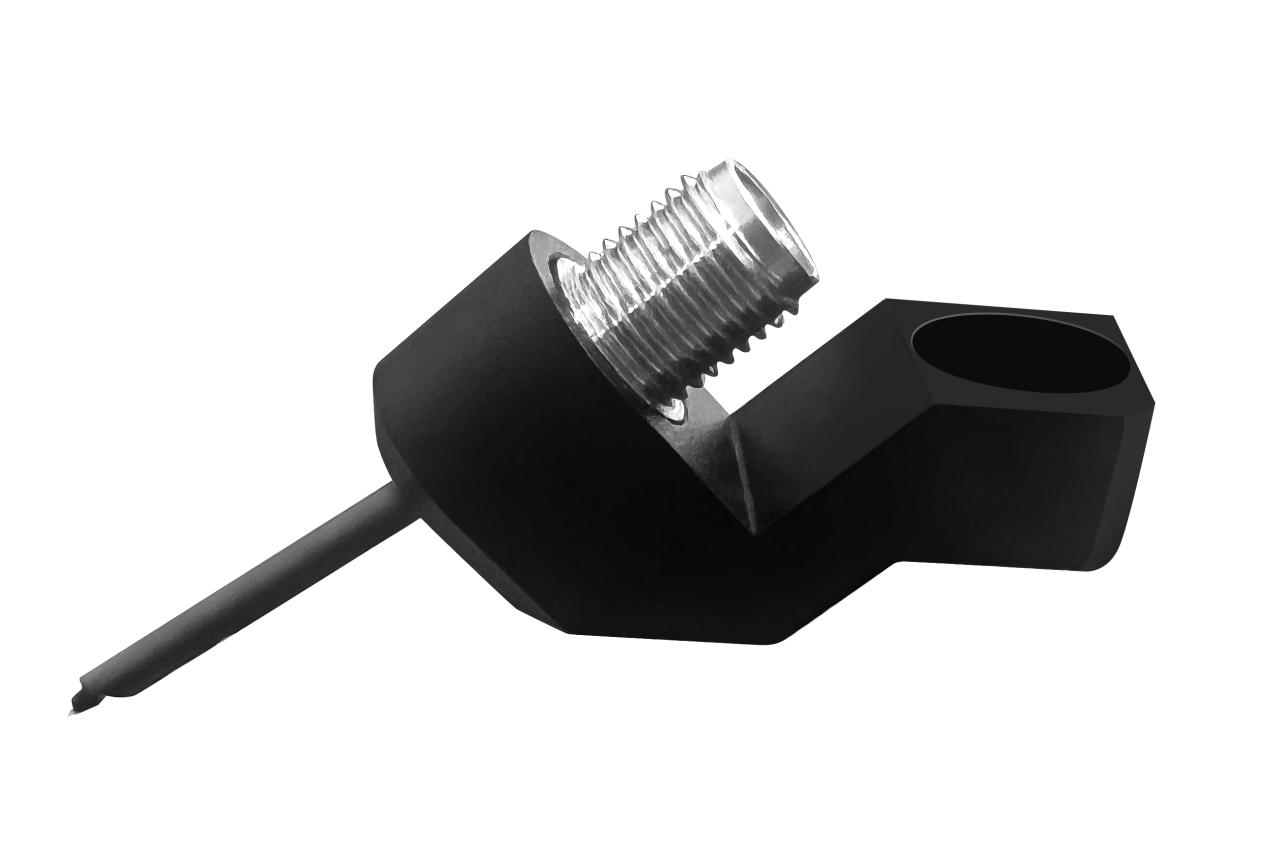

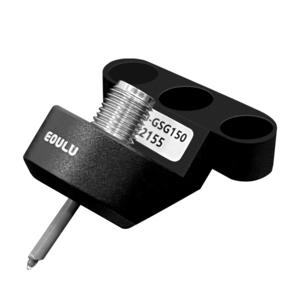

Eoulu Sky Series Probe - RF Probe
Eoulu Sky Series RF Probe is designed for high-frequency signal testing, offering excellent performance in temperature range and precision. It is suitable for uneven surfaces and provides reliable results for various applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequency Range | DC-40GHz |
| Insertion Loss | ≤0.39dB-0.60dB |
| Return Loss | -17.0dB-28.15dB |
| Characteristic Impedance | 50Ω |
| Contact Resistance | <10mΩ |
| Maximum Current | 3A |
| Maximum DC Voltage | 200V |
| Maximum Power Dissipation | ≤7W@40GHz |
| Signal Configuration | GSG |
| Signal Configuration | GS |
| Signal Configuration | SG |
| Probe Pitch | 50μm-1250μm (25μm step) |
| Connector | 2.92mm (female) |
| Tip Material | 镍合金,铍铜合金 |
| Usage Cycles | >1,000,000 |
| Operating Temperature Range | -60°C-200°C |
| Minimum Pad Size | 70×70μm |
