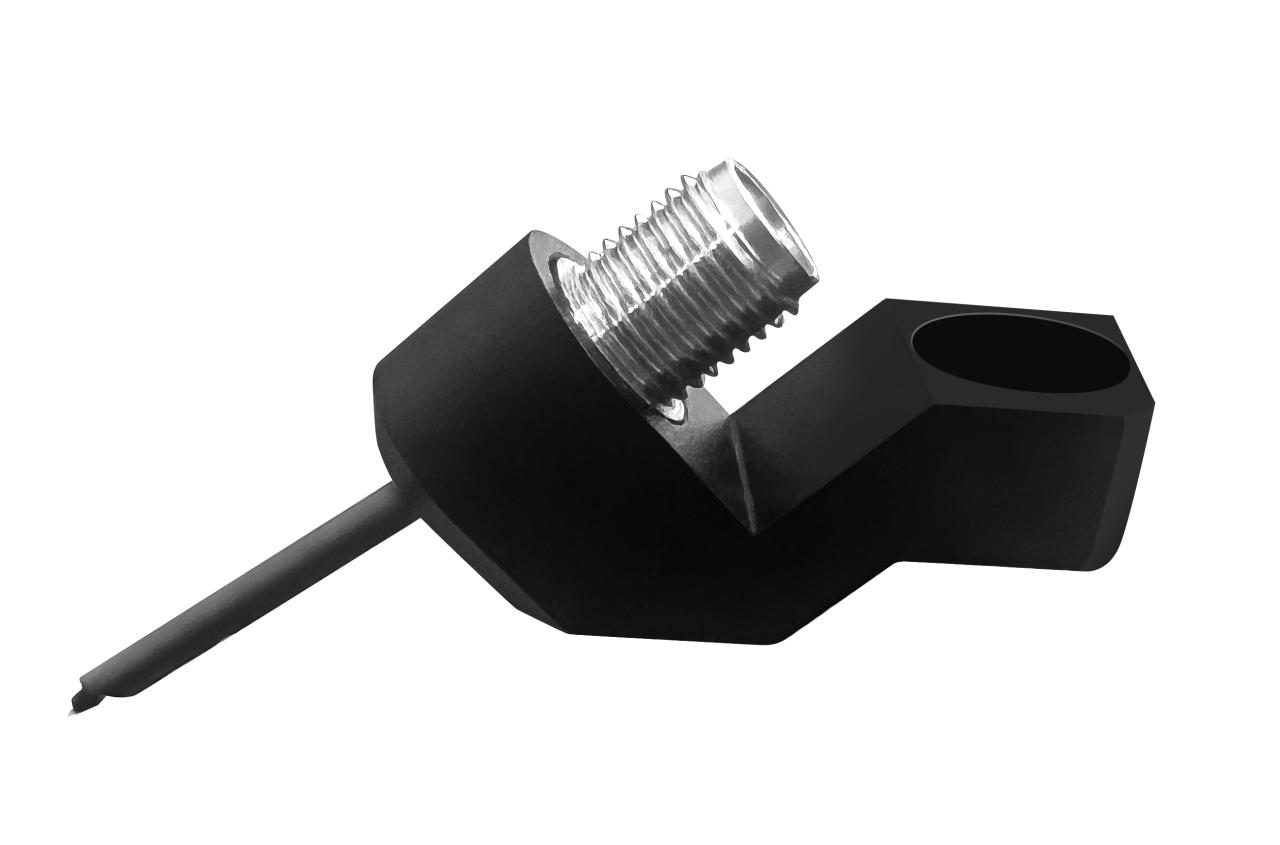

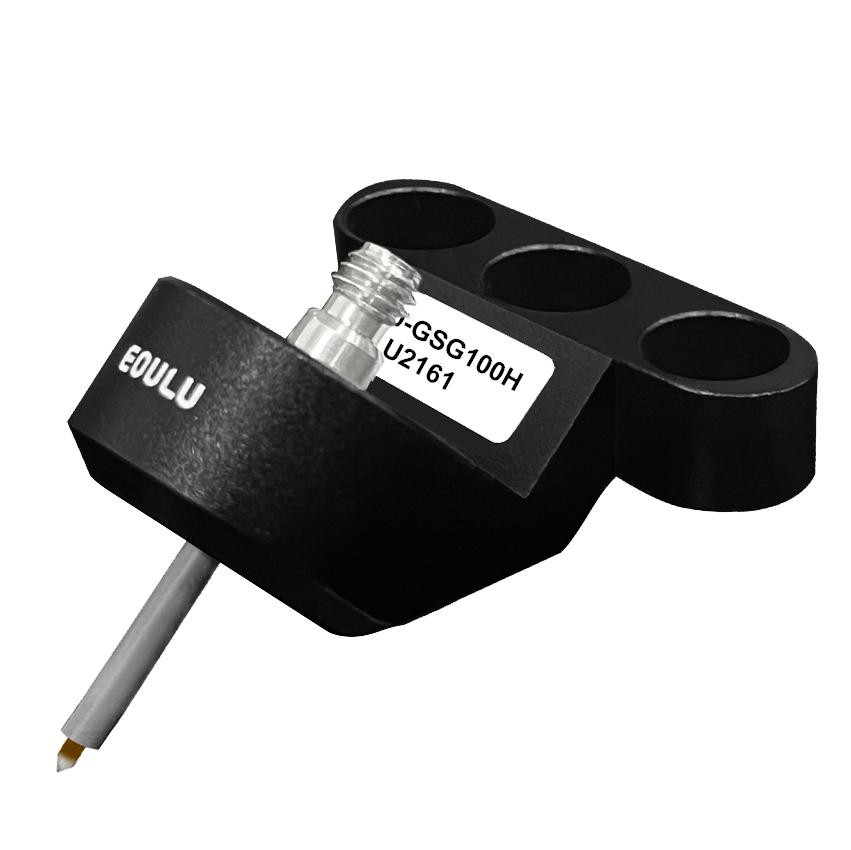

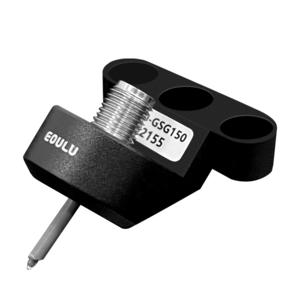

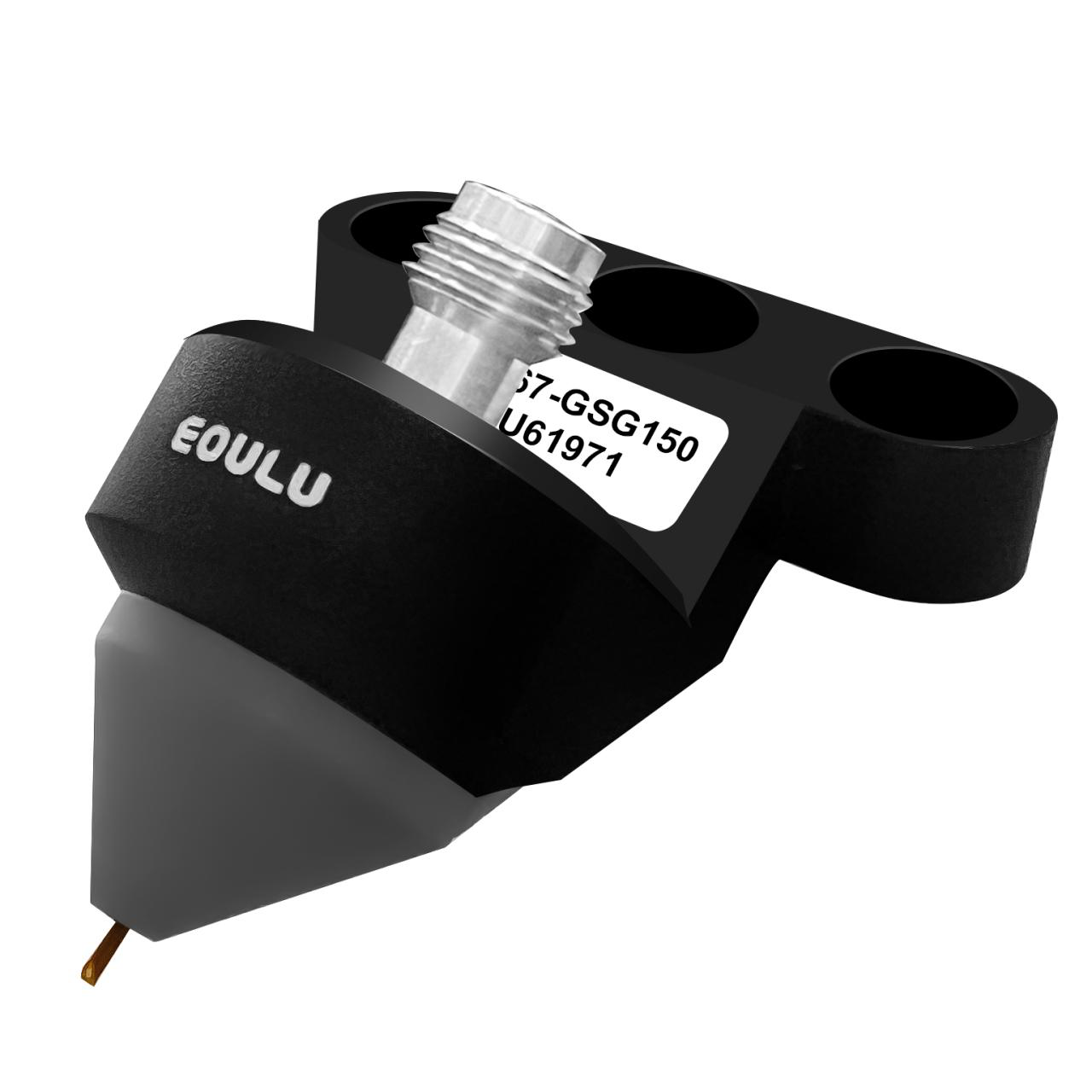

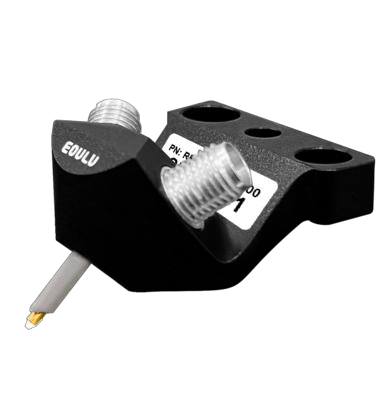

Eoulu Sky Series Probe Needle
Eoulu Sky Series Probe Needle is designed for high-frequency signal testing, offering excellent performance in temperature range and precision applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequency Range | DC-40GHz |
| Insertion Loss | ≤0.39dB |
| Return Loss | ≥17.0dB |
| Tip Spacing Range | 50μm-1250μm |
| Tip Material | Gold alloy |
| Minimum Tolerance for Uneven Pad Surface | 25μm |
| Extremely Low Contact Resistance | <10mΩ |
| Maximum Current Carrying | 200V |
| Signal Configuration | GSG |
| Signal Configuration | GS |
| Signal Configuration | SG |
| Maximum Power Dissipation | ≤4W@40GHz |
| Tip Durability | ≥1,000,000 |
| Operating Temperature Range | -60°C-200°C |
| Minimum Pad Size | 30×30μm |
