Calibration System ECAL1

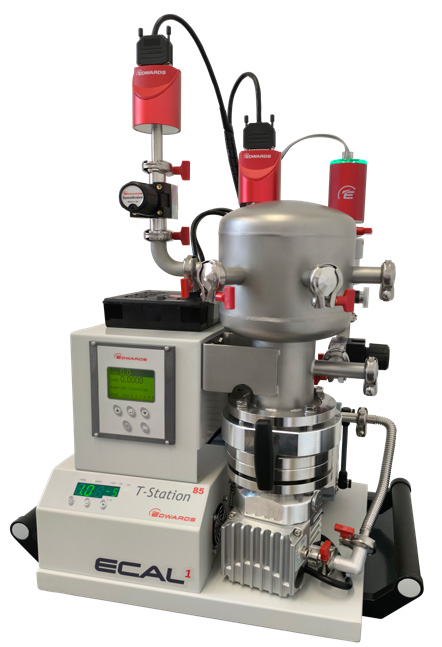

Calibration System ECAL1 is a fully automatic pumping system based on the Edwards T-Station 85H. It includes a vacuum chamber equipped with two reference gauges, providing output comparison between reference gauges and test gauges for a pressure range from 1000 to 10⁻⁴ mbar.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Calibration Pressure Range | 1000至10⁻⁴mbar |
| Ultimate Vacuum | <5×10⁻⁶mbar |
| Ports for Calibration Vacuum Chamber | 3x NW16 for calibration gauges / 1x NW16 for gas admit |
| Type of Protection | IP20 |
| Ambient Operating Temperature Range | 5至40°C |
| Ambient Storage Temperature Range | -30至70°C |
| Maximum Ambient Operating Humidity | 最大90% RH non-condensing at 40°C |
| Maximum Operating Altitude | 最大2000m |

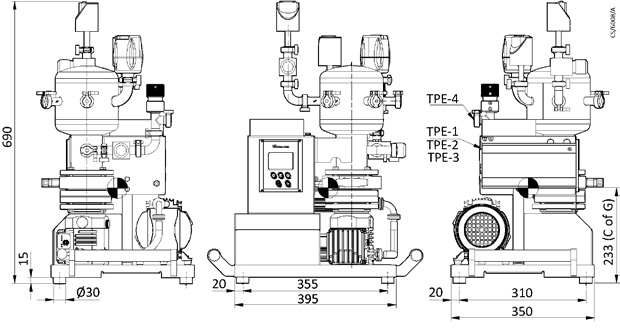

| Dimensions | 527(W)x690(H)x375(D)mm |
| Mass | 40kg |
| Mains Connection | EU Schuko VDE / UK BS1363 / Japan Plug NEMA / US Plug NEMA |
