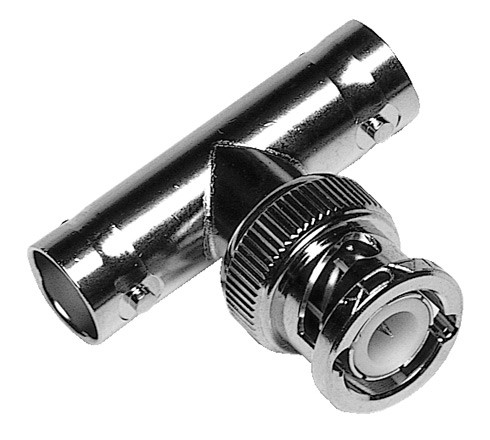

Precision waveform measurement essentials
This product offers a comprehensive range of probes and accessories for oscilloscopes and ScopeCorders, ensuring accurate and reliable waveform measurements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequency Bandwidth | 10MHz-5000MHz |
| Maximum Input Voltage | 20V-7000V |
| Attenuation Ratio | 10:1, 100:1, 500:1 |
| Input Resistance | 10MΩ, 100kΩ |
| Input Capacitance | 10pF-22pF |
| Maximum Input Current | 0.5A-500A |
| Maximum Peak Current | 7.5A-500A |
| Amplitude Accuracy | 1%-3% |
| Total Length | 1m-3m |
| Noise | 75μArms or less |
Applications
Key Features
Datasheet
