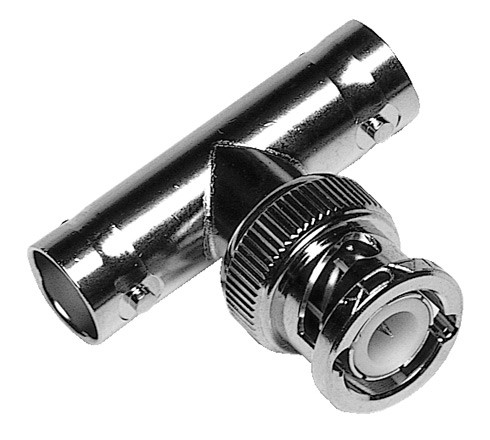

Precision Waveform Measurement Essentials
A comprehensive range of probes and accessories designed for oscilloscopes and ScopeCorders, ensuring accurate and reliable waveform measurements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequency Bandwidth | 10MHz-5000MHz |
| Maximum Input Voltage | 20V-7000V |
| Maximum Input Current | 1mA-500A |
| Input Impedance | 10MΩ-100kΩ |
| Attenuation Ratio | 10:1, 50:1, 100:1, 1000:1 |
| Total Length | 1m-3m |
| Maximum Nondestructive Voltage | 10V-2000V |
| Threshold Voltage | 1.4V-50V |
| Noise | 75μArms or less |
| Amplitude Accuracy | 1%-3% |
| Power Supply | Probe power supply |
| Power Supply | Yokogawa probe interface |
Applications
Key Features
Datasheet
