CA51/CA71 Handy Calibrators
The CA51/CA71 Handy Calibrators are compact, lightweight, and multifunctional devices designed for calibration and measurement tasks. They can simultaneously source and measure voltage, current, resistance, thermocouple (TC), resistance temperature detector (RTD), frequency, and pulse signals. The CA71 model includes additional TC and RTD measurement functions and online communication capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Signal sourcing unit range and accuracy DC voltage | 10mV-110.00V ±(0.02%+2 digits) |
| DC Current | 0-20.00mA ±(0.02%+2 digits) |
| Resistance | 10Ω-10.00kΩ ±(0.1%+2 digits) |
| RTD | Pt100 -200.0-600.0°C ±(0.3°C) |
| TC | K -200.0-1300.0°C ±(0.3°C) |
| Frequency | 500Hz-10.00kHz ±(0.1%+1 digit) |
| Pulse | 0.01-99.99CPM ±(0.1%+1 digit) |
| Measurement unit range and accuracy DC voltage | 10mV-110.00V ±(0.02%+2 digits) |
| AC Voltage | 10V-110.00V ±(0.3%+2 digits) |
| Measurement unit temperature range and accuracy RTD | Pt100 -200.0-600.0°C ±(0.3°C) |
| General specifications Signal generating unit response time | Approximately 3 seconds |
| Signal generating unit step setting | Approximately 32 steps |
| Auto-step function | Available |
| Memory Function | Maximum 50 value sets |
| Output divided (n/m) function | Available |

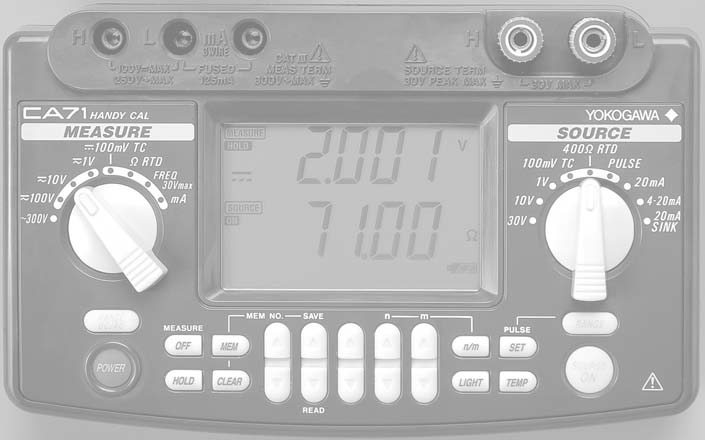

| Display | LCD with backlight |
| Battery Life | Approximately 12 hours |
| Dimensions (W×H×D) | 190×130×55mm |
| Weight | Approx. 980g |

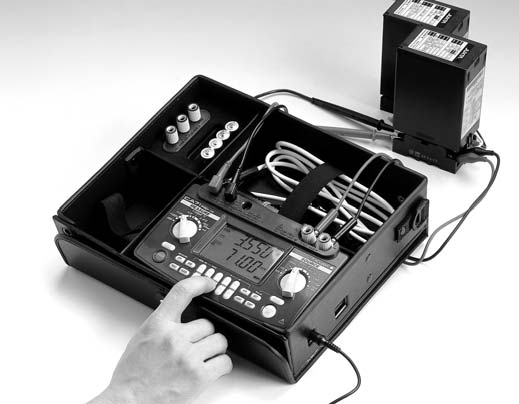

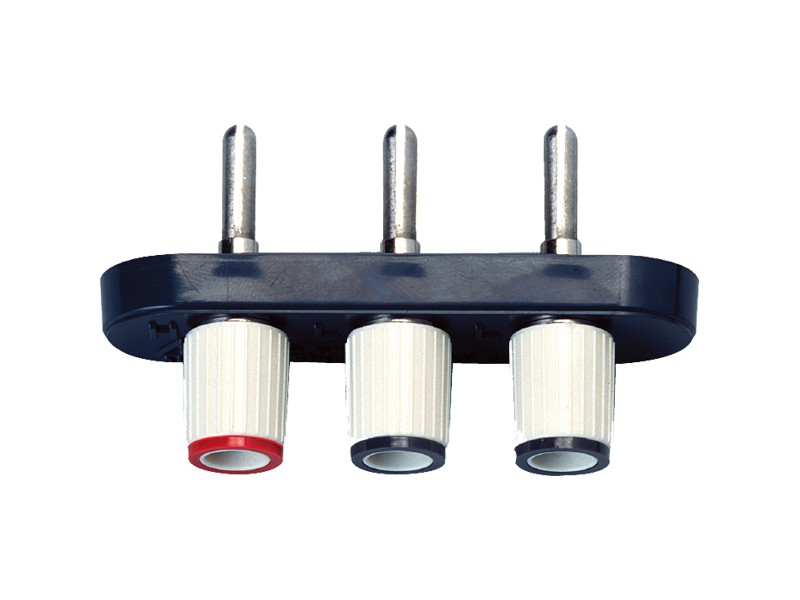

| Standard Accessories | Source signal lead cables, measurement lead cables, carrying case, terminal adapter, user's manual, batteries |
Applications
Key Features
Datasheet
