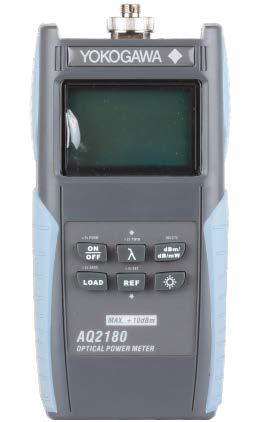

AQ2180 Optical Power Meter
The AQ2180 Optical Power Meter is a high-performance, portable device designed for precise optical power measurements. It is suitable for field and laboratory use, offering reliable and accurate results.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 600-1700nm |
| Detector | InGaAs |
| Applicable Fiber Types | SM (ITU-T G.652), GI (50/125μm, 62.5/125μm) |
| Optical Connector | FC, SC, LC, 2.5 ferrule, 1.25 ferrule |
| Power Range | -70 to +26dBm |
| Display Resolution | 0.01dB, 0.001dB, 0.01μW |
| Displayed Unit | Absolute values: dBm, μW; Relative values: dB |
| Measurement Mode | Absolute value measurement |
| Measurement Mode | Relative value measurement |
| Measurement Time | Approx. 0.5s |
| Memory Capacity | Up to 200 data points |
| Battery Life | Approx. 45 hours |
| Battery Type | Dry and Rechargeable Battery AA |
| Operating Temperature Range | -10°C to +50°C |
| Storage Temperature Range | -20°C to +60°C |
| Dimensions and Weight | Approx. 90(W)×190(H)×43(D)mm, Approx. 400g |
| Pollution Degree | 2 |
| EMC | EN61326-1, EN61326-2-2 |
| Environmental standards | EU RoHS Directive compliant |
