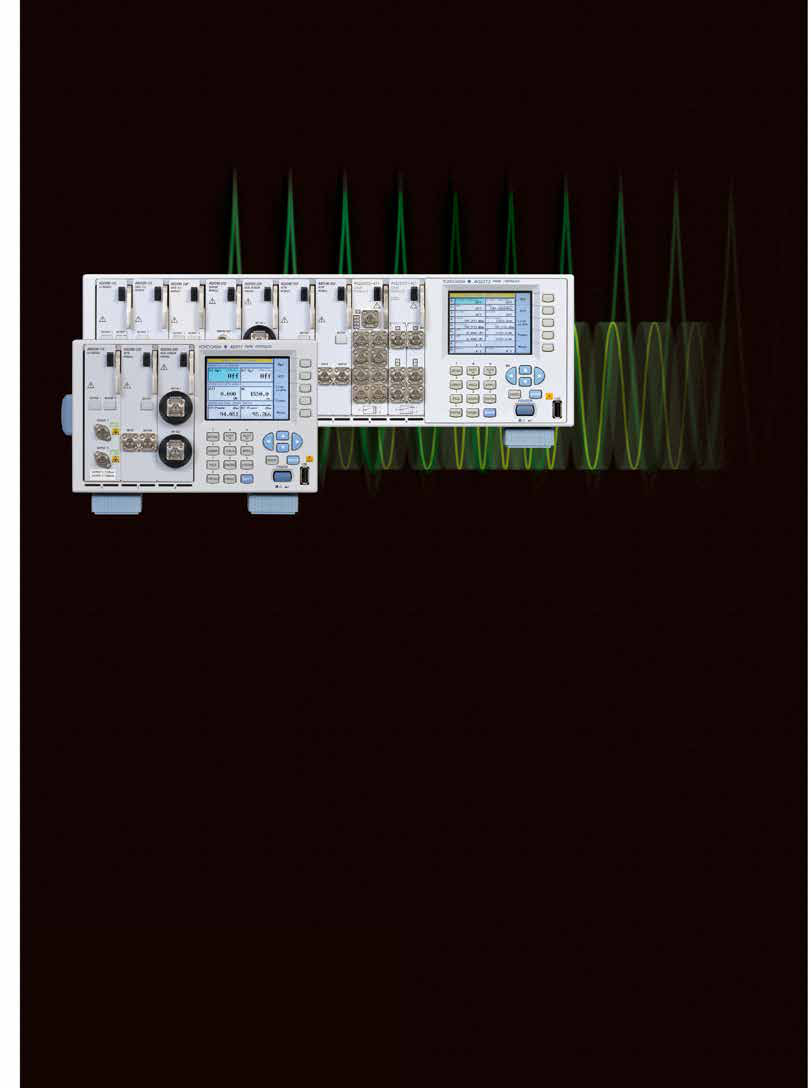

AQ2200 Series
The AQ2200 Series is a versatile measurement system designed for evaluating optical devices and optical transmission systems. It offers a wide range of measurement modules, including light sources, tunable lasers, optical power meters, optical attenuators, and optical switches.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Control Frame AQ2211 | 3插槽 |
| Control Frame AQ2212 | 9插槽 |
| Remote Interface | GP-IB, USB, Ethernet |
| Display | 320x240 LCD |
| Power Consumption AQ2211 | 170VA |
| Power Consumption AQ2212 | 580VA |
| Light Source Wavelength | 1310nm±5nm, 1550nm±5nm, 1625nm±5nm, 1650nm±5nm |
| Optical Power Meter Wavelength Range | 800-1700nm |
| Optical Power Meter Power Range | -90 to +15dBm |
| Optical Power Meter Uncertainty | ±2.5% |
| Optical Power Meter Resolution | 0.001dB |
| Optical Power Meter Response Time | 100μs |
| Optical Attenuation Insertion Loss | ≤1.0dB |
| Optical Switch Insertion Loss 1x2 | ≤1.4dB |
| Optical Switch Insertion Loss 1x4 | ≤1.8dB |
| Optical Switch Insertion Loss 1x16 | ≤2.0dB |
| Optical Switch Return Loss | ≥50dB |
| Optical Switch Isolation | ≥60dB |
| Optical Switch Repeatability | ±0.01dB |
| Optical Switch Durability | ≥20dB |
| Optical Receiver Wavelength Range | 850nm-1310nm |
| Optical Receiver Dynamic Range | -30dBm to +10dBm |
