AQ2200 Series
The AQ2200 Series is a versatile optical measurement system designed for evaluating optical components and transmission systems. It offers a variety of measurement modules, including light sources, optical power meters, optical attenuators, and optical switches.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) 1x2 | ≤4.0 |
| Insertion Loss (dB) 1x4 | ≤7.4 |
| Insertion Loss (dB) 1x8 | ≤11.0 |
| Insertion Loss (dB) 1x16 | ≤15.0 |
| Uniformity (dB) 1x2 | ≤0.6 |
| Uniformity (dB) 1x4 | ≤1.0 |
| Uniformity (dB) 1x8 | ≤1.5 |
| Uniformity (dB) 1x16 | ≤2.0 |
| Optical Isolation (dB) | ≥30 |
| Optical Power Range (dBm) | -90 to +15 |
| Wavelength Range (nm) | 800-1700 |
| Power Uncertainty (%) | ±2.5 |
| Response Time (μs) | 100 |
| Fiber Type | SMF(10/125μm), MMF(50/125μm, 62.5/125μm) |
| Source Wavelength (nm) | 1310, 1550, 1625, 1650 |

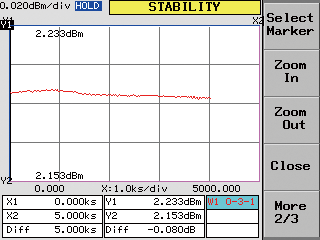

| Source Power Stability (dB) | ±0.005 |
| Source SMSR (dB) | >35 |
| Source output power (dBm) | ≥+10 |
| Source Tuning Range (nm) | 0.1GHz to 50GHz |
| Source Frequency Stability (GHz) | ±2.5 |
| Source Frequency Range (GHz) | 196.25-191.50 |
| Source Frequency Accuracy (GHz) | ±0.3 |
| Source Frequency Resolution (GHz) | 0.1 |
| Source Power Range (dBm) | -90 to +15 |
| Source Power Uncertainty (%) | ±2.5 |
| Source Response Time (μs) | 100 |
| Switch Channel Count | 1x2, 1x4, 1x8, 1x16 |
| Switch Insertion Loss (dB) | ≤1.0 |
| Switch Return Loss (dB) | ≥50 |
| Switch Isolation (dB) | ≥45 |
| Switch Repeatability (dB) | ±0.01 |
| Switch Fiber Type | SMF(10/125μm), MMF(50/125μm, 62.5/125μm) |
| Attenuation Range (dB) | 0-60 |
| Attenuation Insertion Loss (dB) | ≤1.0 |
| Attenuation Power Meter Range (dBm) | -90 to +15 |
| Attenuation Power Meter Uncertainty (%) | ±2.5 |
| Attenuation Response Time (μs) | 100 |
