AQ2200 Series

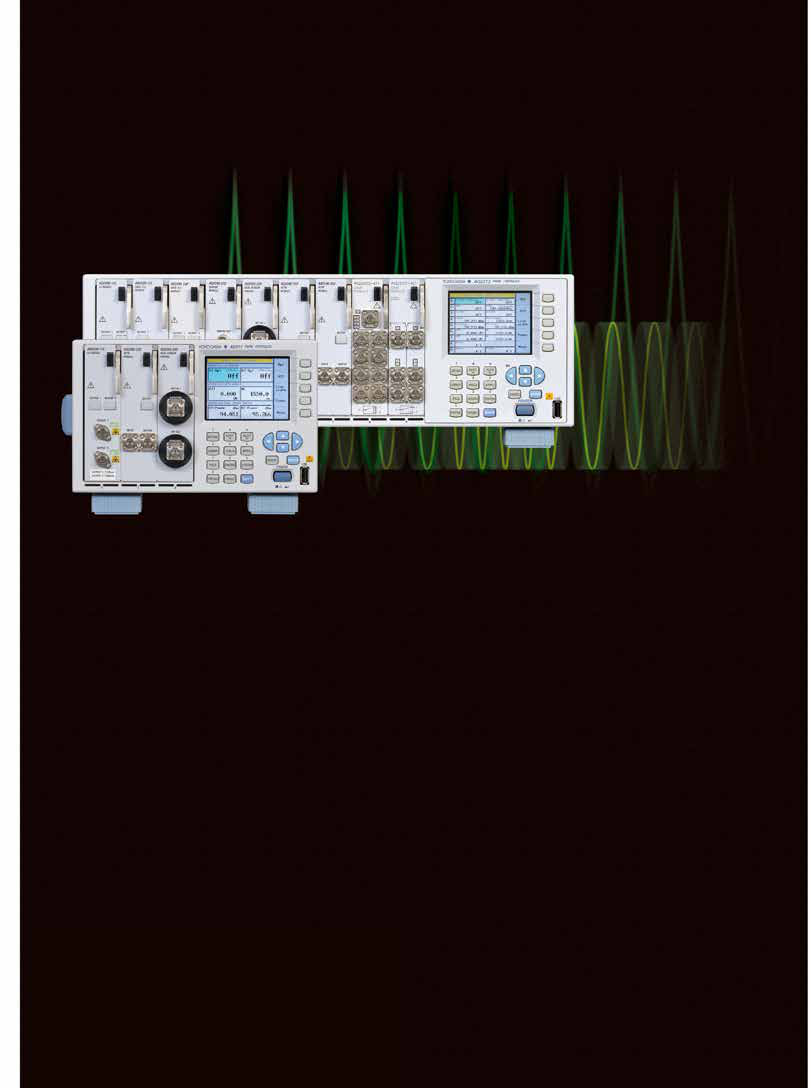

The AQ2200 Series is a versatile measurement system designed for evaluating optical components and optical transmission systems. It offers various measurement modules, including light sources, optical power meters, optical attenuators, optical switches, and more. The system supports hot-swapping, USB storage, and remote control capabilities, making it ideal for efficient and automated testing.
Save to Favorites
Overview
Specifications

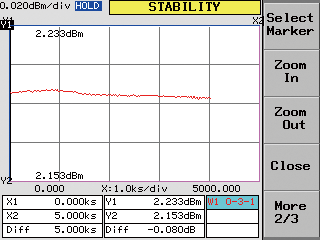

| Parameter | Value |
|---|---|
| Control Frame AQ2211 GP-IB Interface | IEEE488.2, RS-232C |
| Control Frame AQ2211 USB Interface | USB Rev.1.1, Rev.2.0, USB-TMC |
| Control Frame AQ2211 Power Consumption | 170VA |
| Control Frame AQ2211 Dimensions | 521mm×132.5mm×400mm |
| Control Frame AQ2211 Weight | 6.96kg |
| Control Frame AQ2212 GP-IB Interface | IEEE488.2, RS-232C |
| Control Frame AQ2212 USB Interface | USB Rev.1.1, Rev.2.0, USB-TMC |
| Control Frame AQ2212 Power Consumption | 580VA |
| Control Frame AQ2212 Dimensions | 342.5mm×132.5mm×500mm |
| Control Frame AQ2212 Weight | 5.11kg |
| LS Module AQ2200-112 Wavelength | 1310nm±5nm, 1550nm±5nm, 1625nm±5nm, 1650nm±5nm |
| LS Module AQ2200-112 Output Power | ≥+10dBm |
| LS Module AQ2200-112 Stability | ±0.005dB |
| LS Module AQ2200-112 SMSR | ≥35dB |
| LS Module AQ2200-112 Return Loss | ≥6dB |
| LS Module AQ2200-112 Fiber Type | SMF (ITU-T G.652), FC/APC |
| Grid TLS Module AQ2200-131/132 Wavelength Range | 196.25-191.50THz (1527.60-1565.50nm), 190.95-186.35THz (1570.01-1608.79nm) |
| Grid TLS Module AQ2200-131/132 Frequency Stability | ±0.1GHz@10GHz, ±0.2GHz@50GHz, ±0.3GHz@25GHz |
| Grid TLS Module AQ2200-131/132 SMSR | ≥45dB |
| Grid TLS Module AQ2200-131/132 Fiber Type | PANDA PMF, FC/APC |
| Power Meter Module AQ2200-212 Wavelength Range | 800-1700nm |
| Power Meter Module AQ2200-212 Power Range | 90~-15dBm |
| Power Meter Module AQ2200-212 Accuracy | ±2.5% |
| Power Meter Module AQ2200-222 Wavelength Range | 800-1700nm |
| Power Meter Module AQ2200-222 Power Range | 90~-15dBm |
| Power Meter Module AQ2200-222 Accuracy | ±2.5% |
| Power Meter Module AQ2200-215 Wavelength Range | 700-1660nm |
| Power Meter Module AQ2200-215 Power Range | 70~-30dBm |
| Power Meter Module AQ2200-215 Accuracy | ±3% |
| Optical Power Meter Probe AQ2200-232 Wavelength Range | 800-1700nm |
| Optical Power Meter Probe AQ2200-232 Power Range | 90~-15dBm |
| Optical Power Meter Probe AQ2200-232 Accuracy | ±1.8% |
| Optical Power Meter Probe AQ2200-242 Wavelength Range | 400-1100nm |
| Optical Power Meter Probe AQ2200-242 Power Range | 90~-10dBm |
| Optical Power Meter Probe AQ2200-242 Accuracy | ±2.5% |
| Optical Attenuator Module AQ2200-312 Wavelength Range | 1200-1700nm |
| Optical Attenuator Module AQ2200-312 Attenuation Range | 0-60dB |
| Optical Attenuator Module AQ2200-312 Insertion Loss | ≤0.1dB |
| Optical Attenuator Module AQ2200-332 Wavelength Range | 1200-1700nm |
| Optical Attenuator Module AQ2200-332 Attenuation Range | 0-60dB |
| Optical Attenuator Module AQ2200-332 Insertion Loss | ≤0.1dB |
| Optical Switch Module AQ2200-411 Wavelength | 1310nm/1550nm |
| Optical Switch Module AQ2200-411 Insertion Loss | ≤1.4dB |
| Optical Switch Module AQ2200-411 Return Loss | ≥50dB |
| Optical Switch Module AQ2200-412 Wavelength | 1310nm/1550nm |
| Optical Switch Module AQ2200-412 Insertion Loss | ≤1.4dB |
| Optical Switch Module AQ2200-412 Return Loss | ≥50dB |
| Optical Switch Module AQ2200-421 Wavelength | 1310nm/1550nm |
| Optical Switch Module AQ2200-421 Insertion Loss | ≤1.4dB |
| Optical Switch Module AQ2200-421 Return Loss | ≥50dB |
| Optical Transceiver Test Module AQ2200-642 Power Supply Voltage | +7.5V~-7.5V |
| Optical Transceiver Test Module AQ2200-642 Current Measurement | 0-3A |
| Optical Transceiver Test Module AQ2200-642 Voltage Measurement | 0-6V |
| Optical Transceiver Test Module AQ2200-642 Precision | ±0.2% |
| Optical Transceiver Test Module AQ2200-642 Power Consumption | 280W |
Applications
Key Features
Datasheet
Supplier Information
