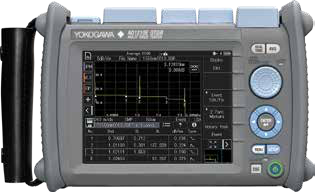

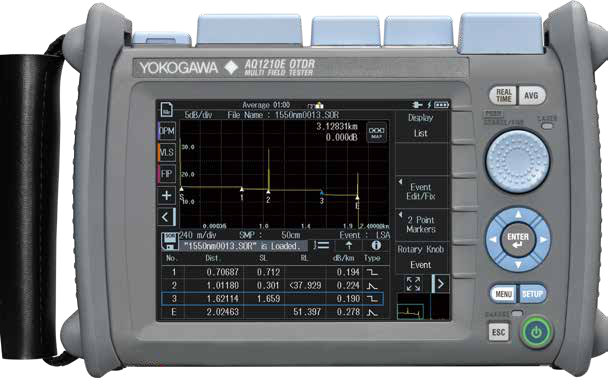

AQ1210 Series OTDR

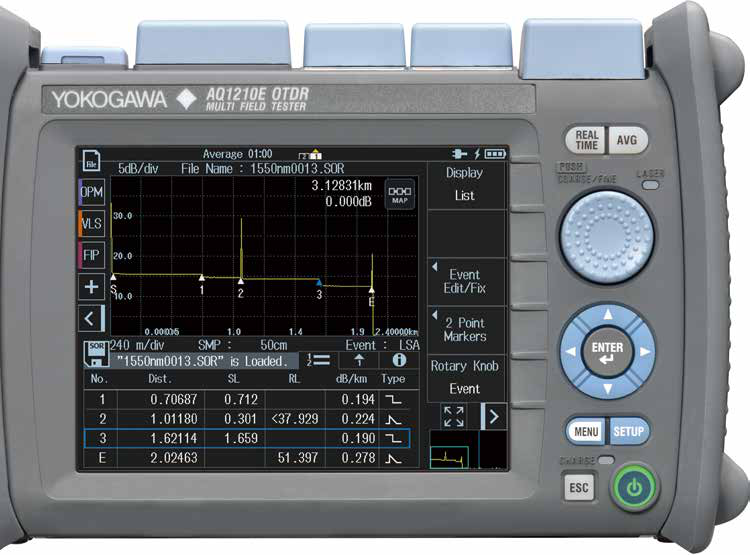

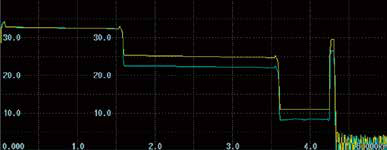

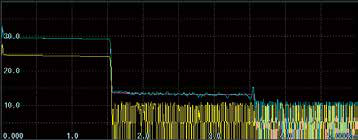

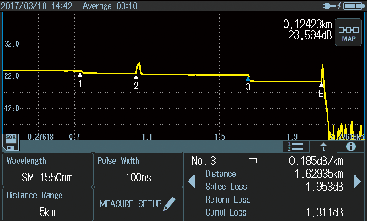

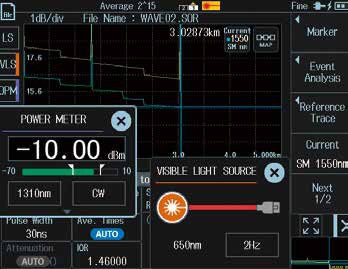

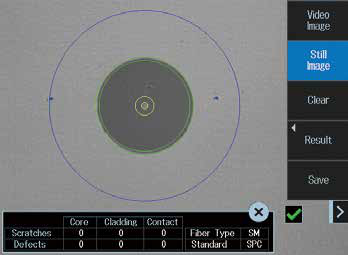

The AQ1210 Series OTDR is a compact, multifunctional optical time domain reflectometer designed for precise and efficient optical fiber network installation and maintenance.
Save to Favorites
Overview
Specifications

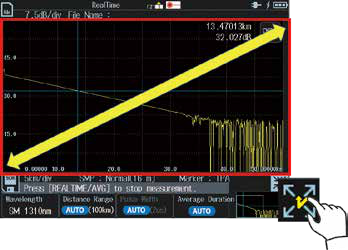

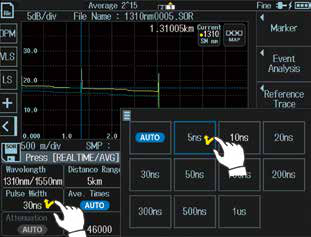

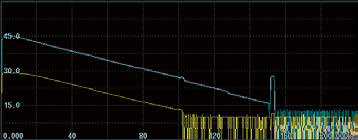

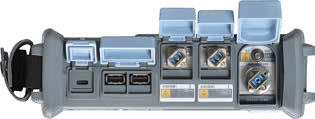

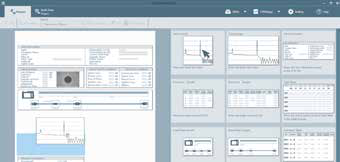

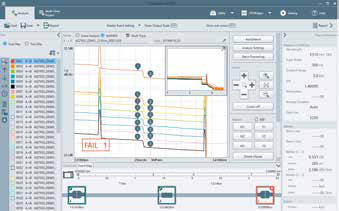

| Parameter | Value |
|---|---|
| Wavelength Range | 1310±20/1550±20, 1625±10, 850±10/1300±30 |
| Number of Optical Channels | 2, 3, 4 |
| Applicable Fiber | SM (ITU-T G.652), GI (50/125μm) |
| Distance Range (km) | 0.1–256, 0.1–512, 0.1–1000 |
| Pulse Width (ns) | 5–20000 |
| Event Dead Zone (m) | 0.75, 2.5 |
| Attenuation Dead Zone (m) | 4, 5 |
| PON Dead Zone (m) | 35, 40 |
| Dynamic Range (dB) | 37/35, 42/40, 37/35/35/27 |
| Return Loss | ≥2dB |
| Sampling Resolution | 2cm, 5cm |
| Distance Measurement Resolution | ±0.01dB |
| Distance Measurement Accuracy | ±(0.75m + measurement distance ×2×10^-5 + sampling resolution) |
| Optical Connector Type | SC/FC/LC, SC Angled-FC (1310/1550/1625/1650nm), SC/FC/LC (850/1300nm) |
| Laser Safety Class | Class 1M (EN 60825-1:2007, GB 7247.1-2012), Class 1 (EN 60825-1:2014) |
| Display Size | 5.7 inches TFT LCD |
| Resolution | 640×480 |
| Data Storage | USB 2.0 Type-A ×2, USB Type-C |
| File Format | SOR |
| File Format | CSV |
| File Format | SET |
| File Format | SMP |
| File Format | BMP |
| File Format | JPG |
| Battery Type | DC 5V, USB |
| Battery Life | 10 hours |
| Environmental Conditions | -10°C to 50°C, 90%RH (non-condensing) |
| Dimensions | 210mm(W)×148mm(H)×69mm(D) |
| Weight | Approx. 1kg |
