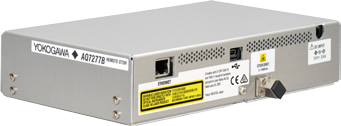

AQ7277B-B01 Remote OTDR
The AQ7277B-B01 is a high-performance remote OTDR module designed for RFTS (Remote Fiber Test System). It offers precise measurement capabilities at 1650 nm wavelength, built-in filters for live fiber monitoring, and supports PON system testing with high-port-count splitters.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength | 1650±5nm |
| Pulse Optical Output | +15dBm or less |
| Event Dead Zone | ≤6m (typ.) 0.7m |
| Attenuation Dead Zone | ≤4m (typ.) |
| Dynamic Range | 40dB (typ.) 37dB |
| Distance Range | 20m, 500m, 1km, 2km, 5km, 10km, 20km, 30km, 40km, 50km, 100km, 200km, 300km, 400km, 512km |
| Pulse Width | 3ns, 10ns, 20ns, 30ns, 50ns, 100ns, 200ns, 300ns, 500ns, 1μs, 2μs, 4μs, 5μs, 10μs, 20μs |
| Distance Measurement Accuracy | ±(0.75m+measurement distance×2×10^-5+sampling resolution) |
| Loss Measurement Accuracy | ±0.03dB |
| Sampling Resolution | Min. 2cm |
| Readout Resolution | Horizontal 1cm (Min.), Vertical 0.001dB (Min.) |
| Number of Sampling Data | Max. 256,000 points |
| Group Refractive Index | 1.300000 to 1.799999 (0.00001 steps) |
| Unit of Distance | km |
| Measurement Functions | Distance |
| Measurement Functions | Loss |
| Measurement Functions | Return Loss |
| Applicable Fiber | SM (ITU-T G.652) |
| Optical Connector | SC (fixed) |
| Remote Control Interface - USB Port | USB2.0 TYPE B (mini) x1 |
| Remote Control Interface - LAN Port | Ethernet x1 |
| Remote Control Interface - Flow Control | IEEE802.3 compliant |
| Remote Control Interface - Transmission Mode | 10BASE-T/100BASE-TX |
| Remote Control Interface - Communication Protocol | TCP/IP |
| Remote Control Interface - Connector Type | RJ45 |
| DC Power Input Ports | 12V DC supply LGP6531-1550FC (equivalent) |
| Connector for LED | LED drive signal (power, optical output, alarm) |
| Operating Environment Temperature | -10 to +50°C |
| Operating Environment Humidity | 0 to 90%RH or less (no condensation) |
| Operating Environment Altitude | 4000m or less |
| Storage Environment Temperature | -20 to +60°C |
| Storage Environment Humidity | 0 to 90%RH or less (no condensation) |
| Storage Environment Altitude | 4000m or less |
| DC Power Requirements | 12V DC 2.5A or less |
| Rated Power Supply Voltage | 12V±10% DC |
| Warm-Up Time | 30 minutes or more |
| Dimensions | 230(W)×140(D)×50(H)mm (excluding projections) |
| Weight | Approximately 1kg |
| Laser Safety Standards | Class 1M (IEC60825-1:2007, GB7247.1-2012), FDA 21CFR1040.10 |
| Accessories | User's Manual |
