AQ2200 Series

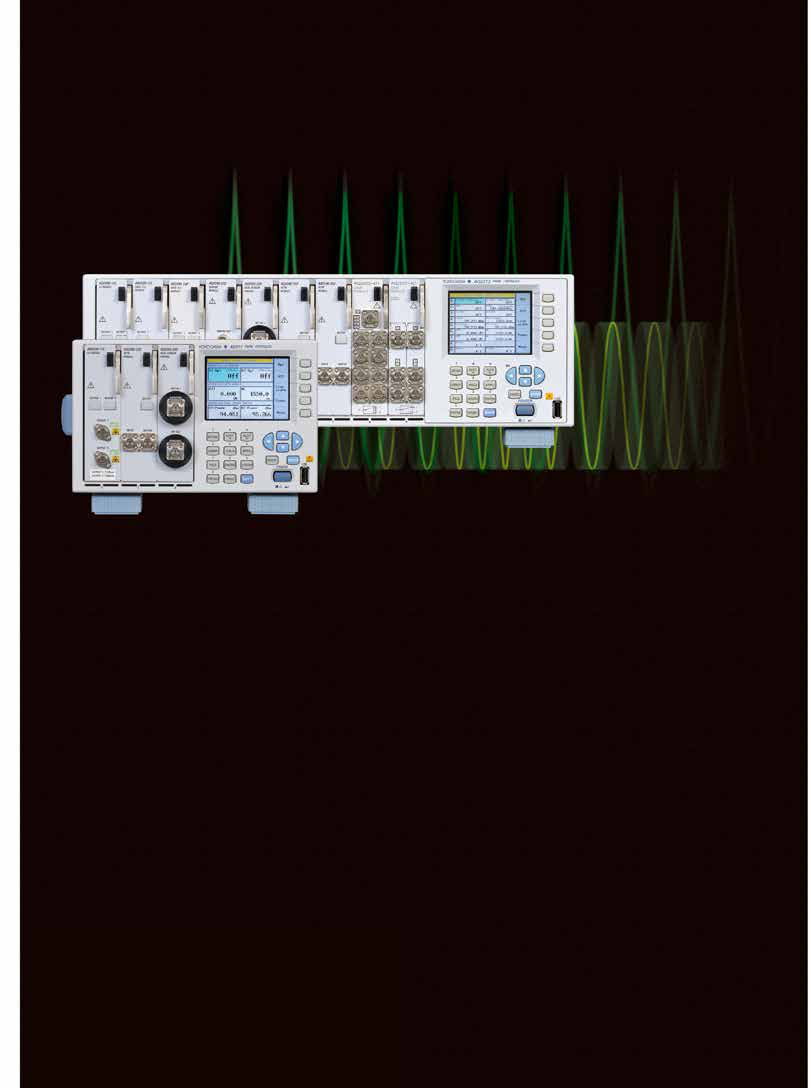

The AQ2200 Series is a versatile measurement system designed for evaluating optical components and optical transmission systems. It offers various measurement modules, including light sources, optical power meters, optical attenuators, optical switches, and more.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Control Frame Model AQ2211 | 3 slots |
| Control Frame Model AQ2212 | 9 slots |
| Remote Interface AQ2211 | GP-IB, USB |
| Remote Interface AQ2212 | GP-IB, USB |
| Dimensions AQ2211 | 521mm×132.5mm×400mm |
| Dimensions AQ2212 | 342.5mm×132.5mm×500mm |
| Weight AQ2211 | 6.96kg |
| Weight AQ2212 | 5.11kg |
| Light Source Module Model AQ2200-112 | DFB-LD |
| Center Wavelength AQ2200-112 | 1310nm±5nm, 1550nm±5nm, 1625nm±5nm, 1650nm±5nm |

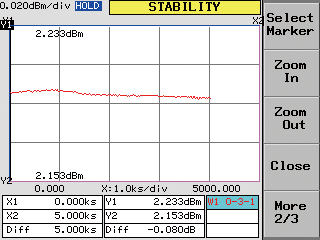

| Power Stability AQ2200-112 | ±0.005dB |
| Optical Power Meter Module Model AQ2200-212 | 800-1700nm |
| Optical Power Meter Module Model AQ2200-222 | 800-1700nm |
| Optical Power Meter Module Model AQ2200-215 | 700-1660nm |
| Optical Power Meter Sensor Model AQ2200-232 | 800-1700nm |
| Optical Power Meter Sensor Model AQ2200-242 | 400-1100nm |
| Optical Attenuator Module Model AQ2200-312 | 1200-1700nm |
| Optical Attenuator Module Model AQ2200-332 | 800-1370nm |
| Optical Switch Module Model AQ2200-421 | 1x2, 2x2 |
| Optical Switch Module Model AQ2200-411 | 1x4, 1x8 |
| Optical Switch Module Model AQ2200-412 | 1x16 |
| Transceiver Module Model AQ2200-642 | SFP, SFP+, XFP, XENPAK |
| Power Supply Module Model PS1 | -7.5V to +5.25V, 1.8A |
| Power Supply Module Model PS2 | -7.5V to +0.5V, 0.5A |
| Power Supply Module Model PS3 | -7.5V to +0.5V, 0.5A |
| Power Supply Module Model PS4 | -5.46V to -4.90V, 2.0A |
| Power Supply Module Model PS5 | 5.0V±3.3V, 2.0A |
