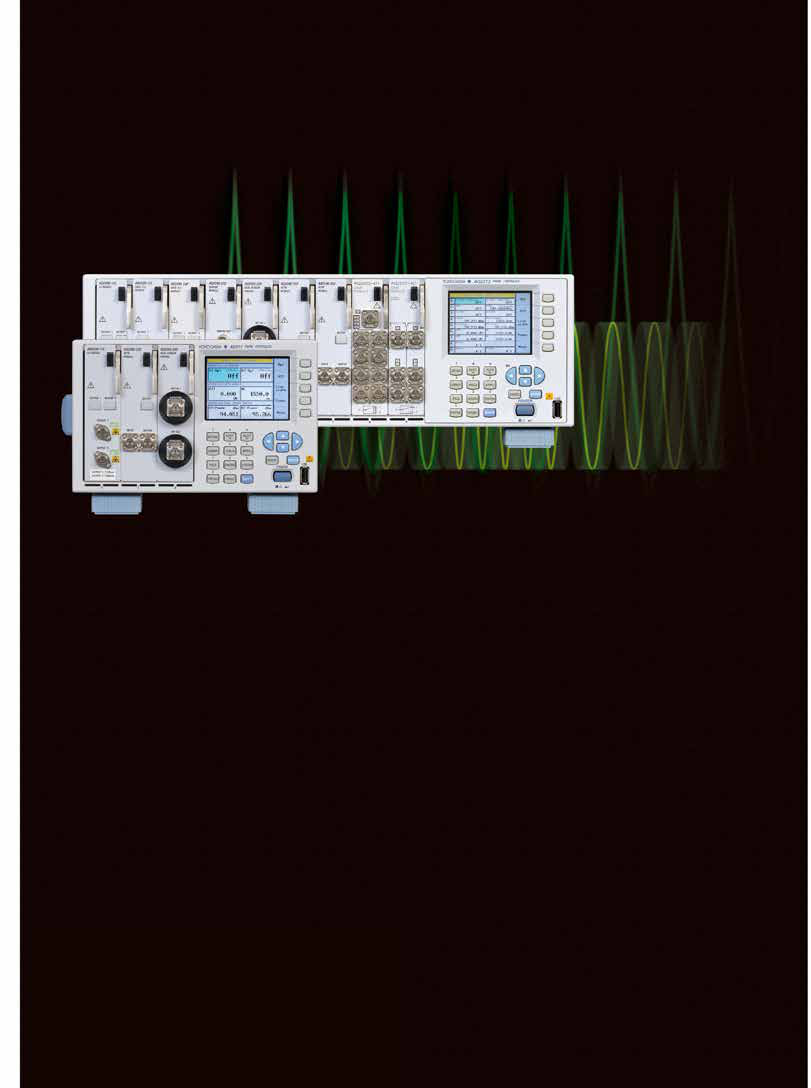

AQ2200 Series
The AQ2200 Series is a multi-application measurement system designed for evaluating optical devices and optical transmission systems. It offers various measurement modules, including light sources, tunable lasers, optical power meters, optical attenuators, and optical switches.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) 1x2 | ≤1.4 |
| Insertion Loss (dB) 1x4 | ≤1.8 |
| Insertion Loss (dB) 1x8 | ≤2.0 |
| Insertion Loss (dB) 1x16 | ≤2.4 |
| Return Loss (dB) 1x2 | ≥55 |
| Return Loss (dB) 1x4 | ≥50 |
| Return Loss (dB) 1x8 | ≥50 |
| Return Loss (dB) 1x16 | ≥50 |
| Fiber Type | SMF(ITU-T G.652)/MMF(50/125μm,62.5/125μm) |
| Optical Power Measurement Range | -90 to +15dBm |
| Optical Power Measurement Accuracy | ±2.5% |
| Optical Power Measurement Resolution | 0.01dB |
| Wavelength Range | 800-1700nm |
| Light Source Wavelength | 1310nm,1550nm,1625nm,1650nm |

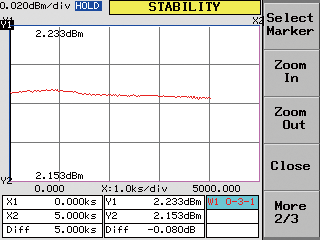

| Light Source Power Stability | ±0.005dB |
| Light Source SMSR | ≥35dB |
| Light Source Output Power | +10dBm |
| Light Source Tuning Range | 0.1GHz to 100GHz |
| Light Source Tuning Accuracy | ±2.5GHz |
| Light Source Tuning Resolution | ±0.3GHz |
| Attenuation Range | 0-60dB |
| Attenuation Accuracy | ±0.1dB |
| Attenuation Resolution | 0.025dB |
| Control Frame Module Capacity | 3 slots (AQ2211), 9 slots (AQ2212) |
| Control Frame Remote Interfaces | GP-IB, Ethernet, USB |
| Control Frame Power Consumption | 170VA (AQ2211), 580VA (AQ2212) |
| Control Frame Dimensions | 521mm×132.5mm×400mm (AQ2211), 542mm×132.5mm×500mm (AQ2212) |
| Control Frame Weight | 6.96kg (AQ2211), 5.11kg (AQ2212) |
