AQ2200 Series

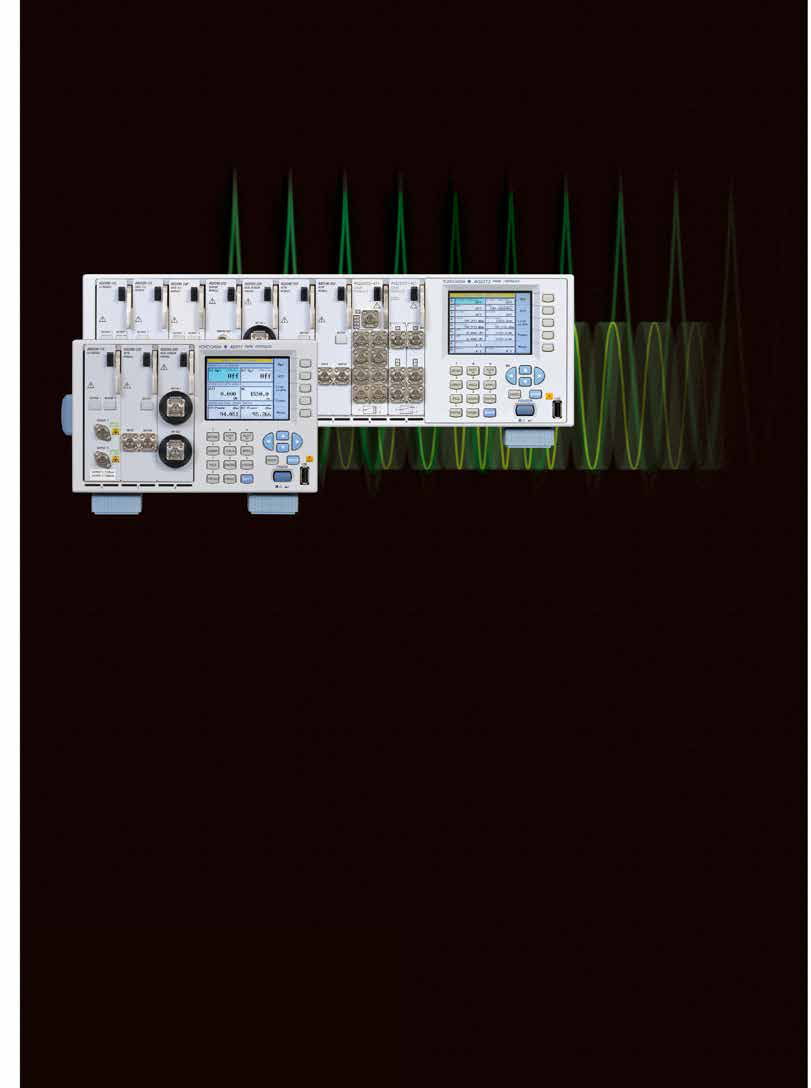

The AQ2200 Series is a versatile measurement system designed for evaluating optical devices and optical transmission systems. It offers various measurement modules, including light sources, optical power meters, optical attenuators, optical switches, and more.
Save to Favorites
Overview
Specifications

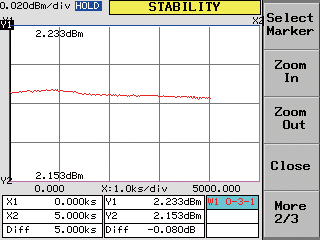

| Parameter | Value |
|---|---|
| Insertion Loss (dB) 1x2 | ≤1.4 |
| Insertion Loss (dB) 1x4 | ≤1.8 |
| Insertion Loss (dB) 1x8 | ≤2.0 |
| Insertion Loss (dB) 1x16 | ≤2.5 |
| Optical Isolation (dB) | ≥50 |
| Fiber Type | SMF(ITU-T G.652)/MMF(50/125μm,62.5/125μm) |
| Optical Power Measurement Range | -90~+15dBm |
| Wavelength Range | 800~1700nm |
| Power Uncertainty | ±2.5% |
| Detector Type | InGaAs |
| Source Wavelength | 1310nm,1550nm,1625nm,1650nm |
| Source Power | ≥+10dBm |
| Source Stability | ±0.005dB |
| Attenuation Range | 0~60dB |
| Attenuation Accuracy | ±0.1dB |
| Attenuation Insertion Loss | ≤0.1dB |
| Switch Repeatability | ±0.01dB |
| Switch Insertion Loss | ≤0.1dB |
| Switch Isolation | ≥50dB |
| Switch Channels | 1x2,1x4,1x8,1x16 |
| Receiver Wavelength Range | 850nm~1310nm |
| Receiver Power Voltage | +5V |
| Receiver Current Range | 0~2A |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
AQ2200 Series
Fiber Optic Switches
Yokogawa
Insertion Loss (dB) AQ2200-421 1x2: ≤1.4 Insertion Loss (dB) AQ2200-421 2x2: ≤1.8 Insertion Loss (dB) AQ2200-411 1x4: ≤1.8
The AQ2200 Series is a versatile measurement system designed for evaluating optical components and optical transmission systems. It offers various measurement modules, including light sources, optical power meters, optical attenuators, and optical switches.
-
Single-Mode Mechanical Optical Switch
Fiber Optic Switches
Hoyatek
: 1260~1650nm
-
Multimode Mechanical Optical Switch
Fiber Optic Switches
Hoyatek
: 850/980 nm : 0.6dB : 0.8dB
-
Remote-Control Optical Switch System
Fiber Optic Switches
Hoyatek
-
OSX-150 MEMS Optical Switch
Fiber Optic Switches
Santec
Fiber Type: Single-mode, 9/125 Wavelength Range (nm): 1250 to 1670 Channel Count (1xN): <4 / <16 / <24 / <36
The OSX-150 Optical Switch features the latest in MEMS technology for high-speed applications. With excellent repeatability and low loss, the OSX-150 is ideally suited for automation applications where switching time needs to be minimized or space is at a premium. Available in 9 μm single-mode fiber, custom configurations and path routings are available upon request. The switch can be controlled through USB or Ethernet and the front panel bulkheads are fitted with FC, SC or LC connector types. Optional accessories include 2U rack short ears, 2U rack long ear filler plates, 2U chassis connector plates and 2U rubber bezels. Each unit ships with an AC power cord and a test report.
