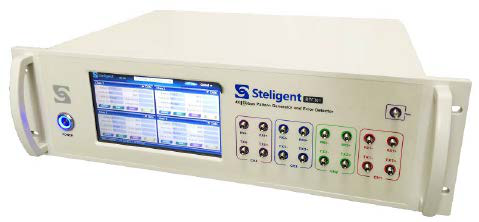

BT4201 Four-Channel 14.5Gb/s Error Code Tester (V2.7)
BT4201 is a high-performance, easy-to-use, low-cost 4-channel error code tester with a speed of 4×14.5Gb/s. It is suitable for research and production testing of 4×14.5G TOSA/ROSA modules and on-site installation. It is used to evaluate single-channel performance, backplane, and multi-channel serial systems. It is also an important tool for production testing of AOC and 40G optical modules.
Save to Favorites

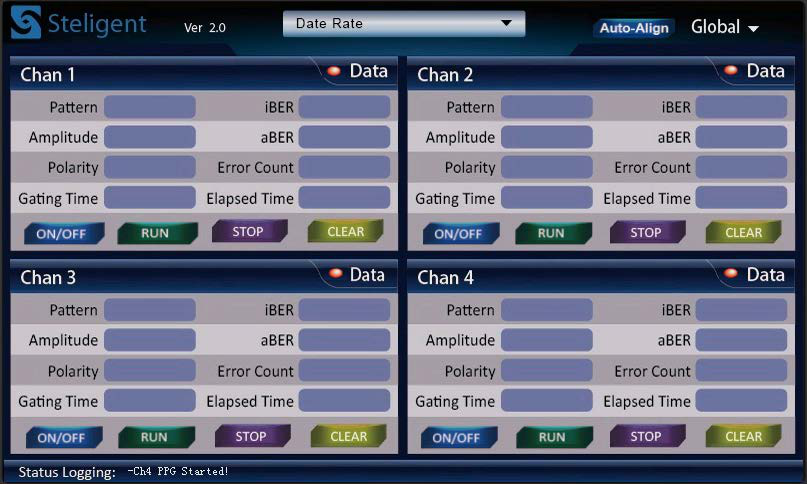

Overview
Specifications

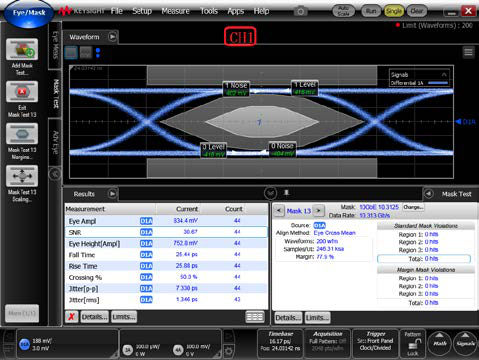

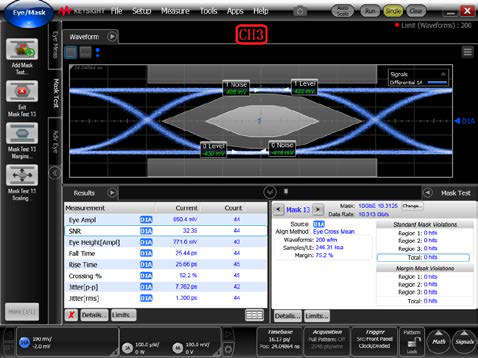

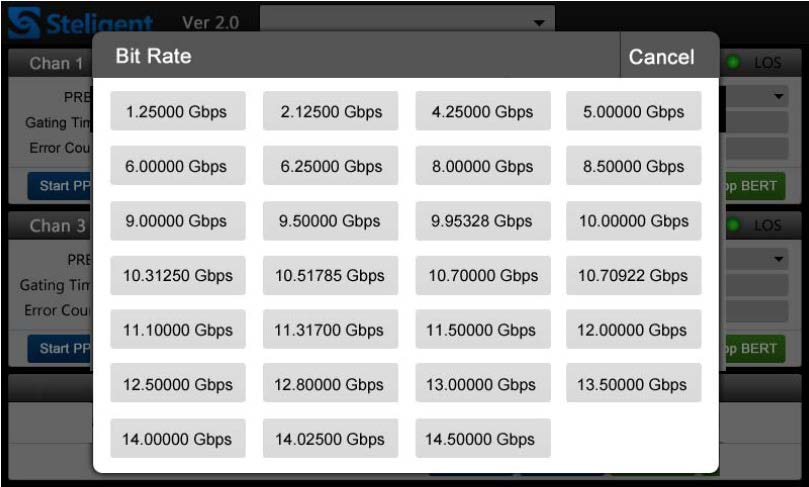

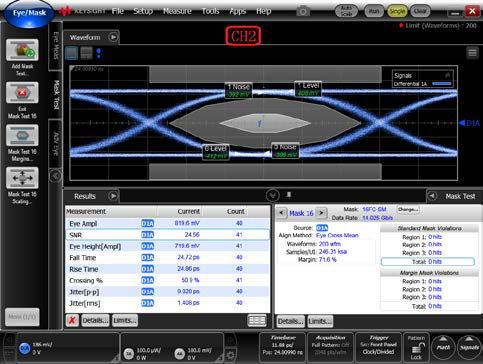

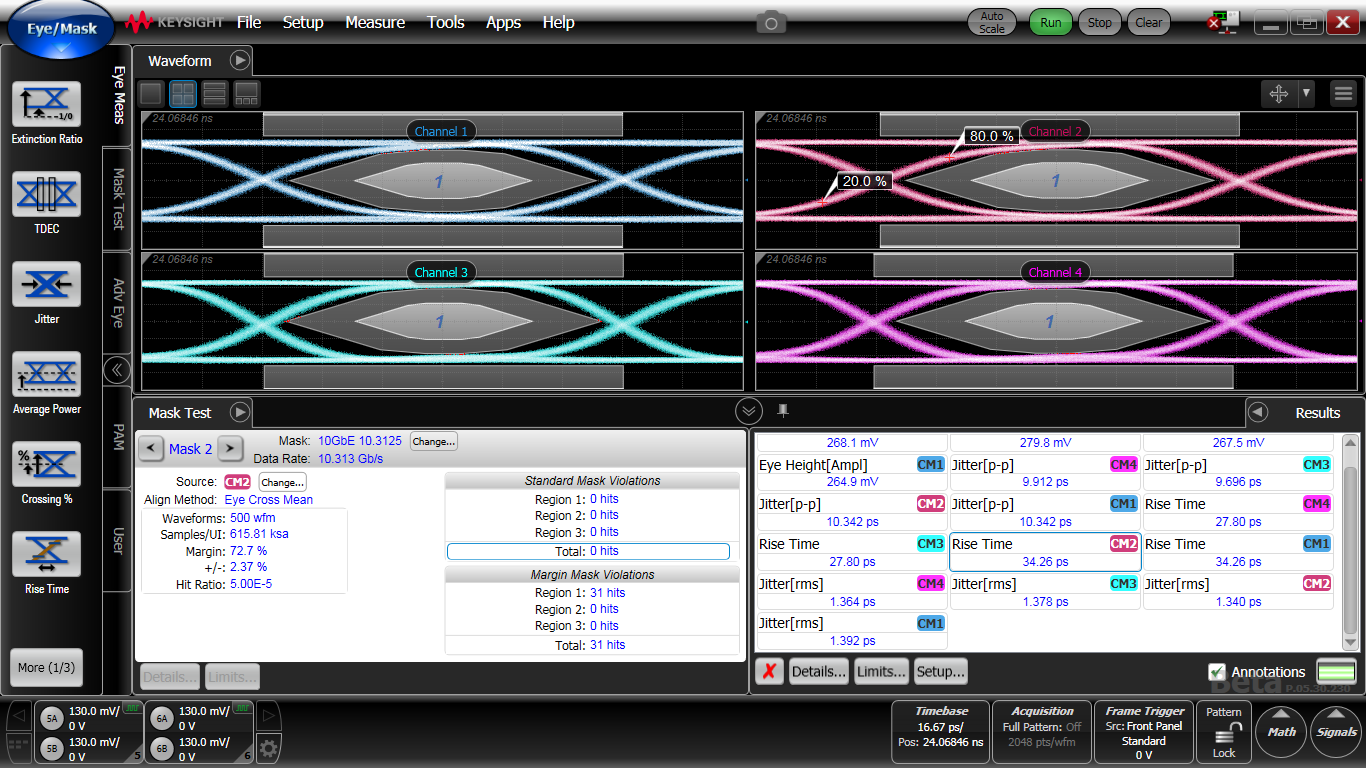

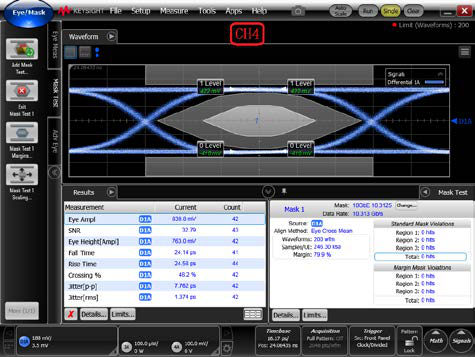

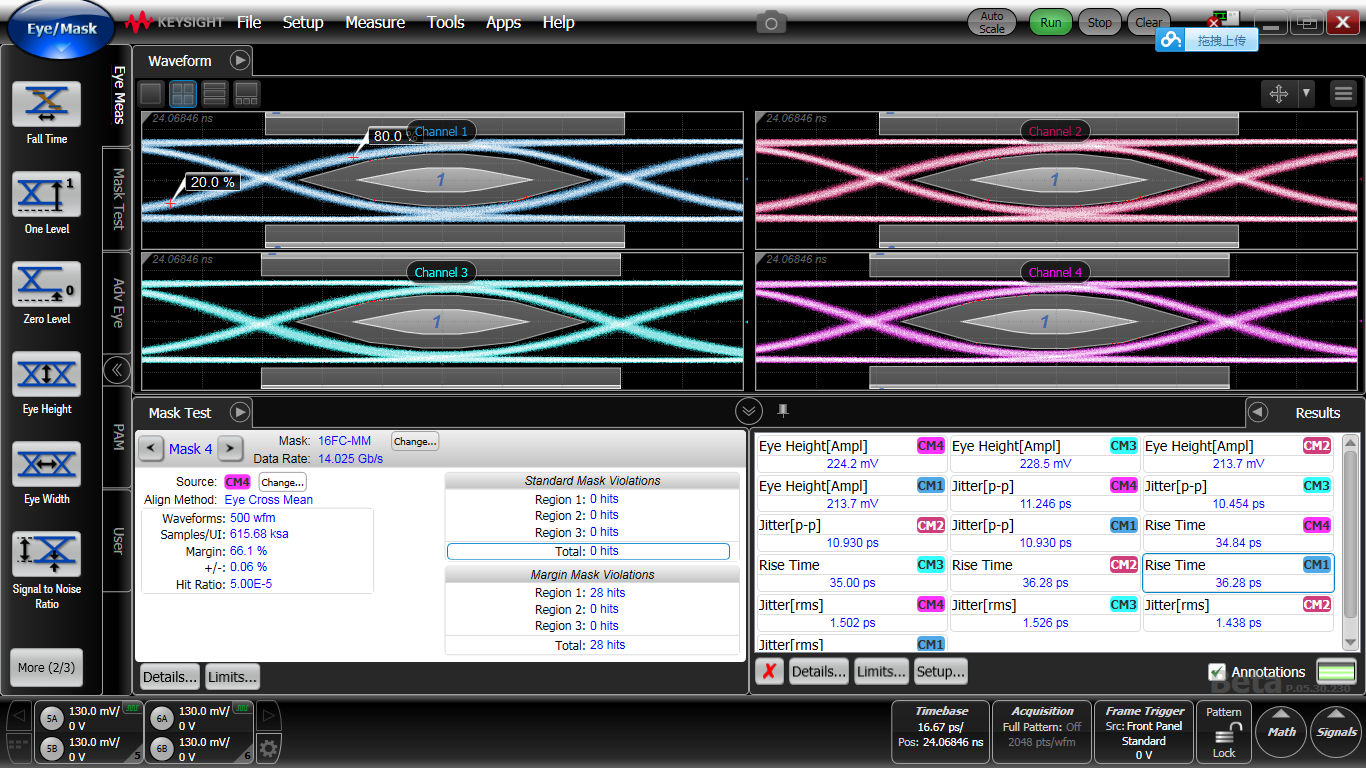

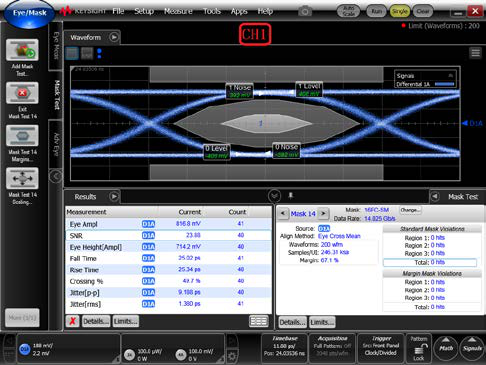

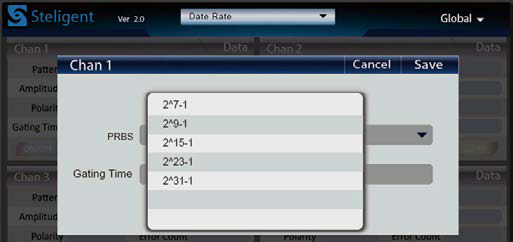

| Parameter | Value |
|---|---|
| Data Rate | 1.25Gbps-14.5Gbps |
| Output Type | Differential, AC coupling, 100Ω terminal; Single-ended, AC coupling, 50Ω terminal |
| Amplitude | 620mVpp |
| Rise Time | 12.48ps (20%-80%) |
| Jitter | 1.2ps RMS jitter, 7.8ps peak-to-peak jitter |
| PPRBS Output Waveform | NRZ |
| Supported Patterns | 27-1, 29-1, 215-1, 223-1, 231-1 |
| Clock Recovery Method | Internal clock recovery |
| Clock Output | /2, /4, /8, /16 data rates |
| Connector | SMA |
| Connector | front panel |
| Clock Input Impedance | 100Ω |
| Clock Input Amplitude | 800mVpp |
| Clock Input Attenuation | <40mV |
| Clock Input Connector | SMA |
| Clock Input Connector | front panel |
| Pattern Generator Output Amplitude | 300mVpp |
| Pattern Generator Connector | 500Ω terminal, 2.92 SMK connector |
| Pattern Generator Supported Patterns | 27-1, 29-1, 215-1, 223-1, 231-1, user-defined patterns |
| Pattern Generator Data Rate | 1.25Gbps-14.5Gbps |
| Pattern Generator Frequency Stability | ±50ppm |
| Pattern Generator Amplitude | 160-620mVpp |
| Pattern Generator Jitter | 1.5ps RMS jitter |
| Pattern Generator Rise Time | 12.48ps (20%-80%) |
