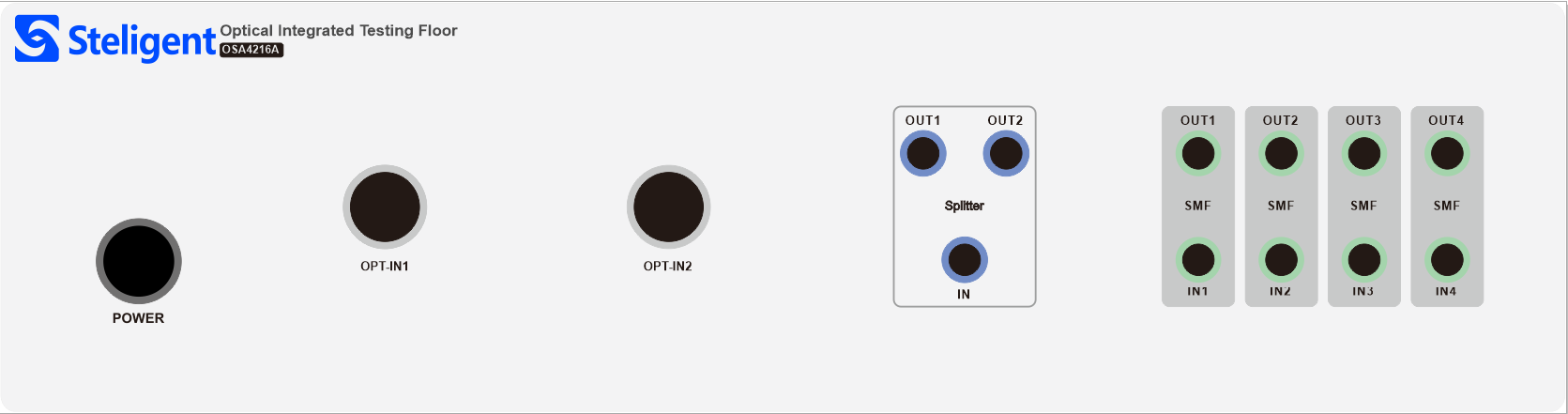

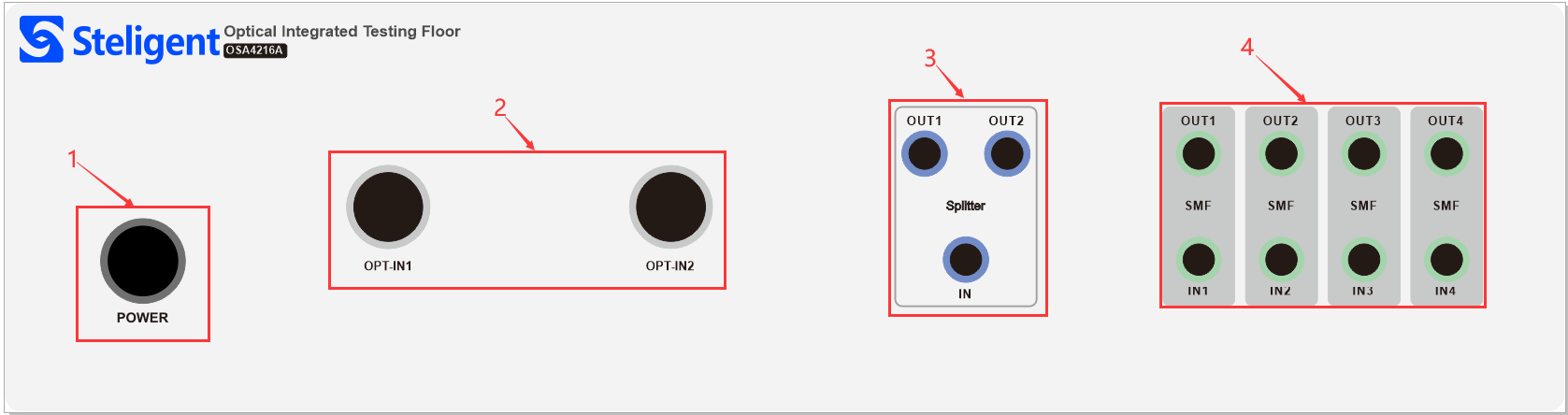

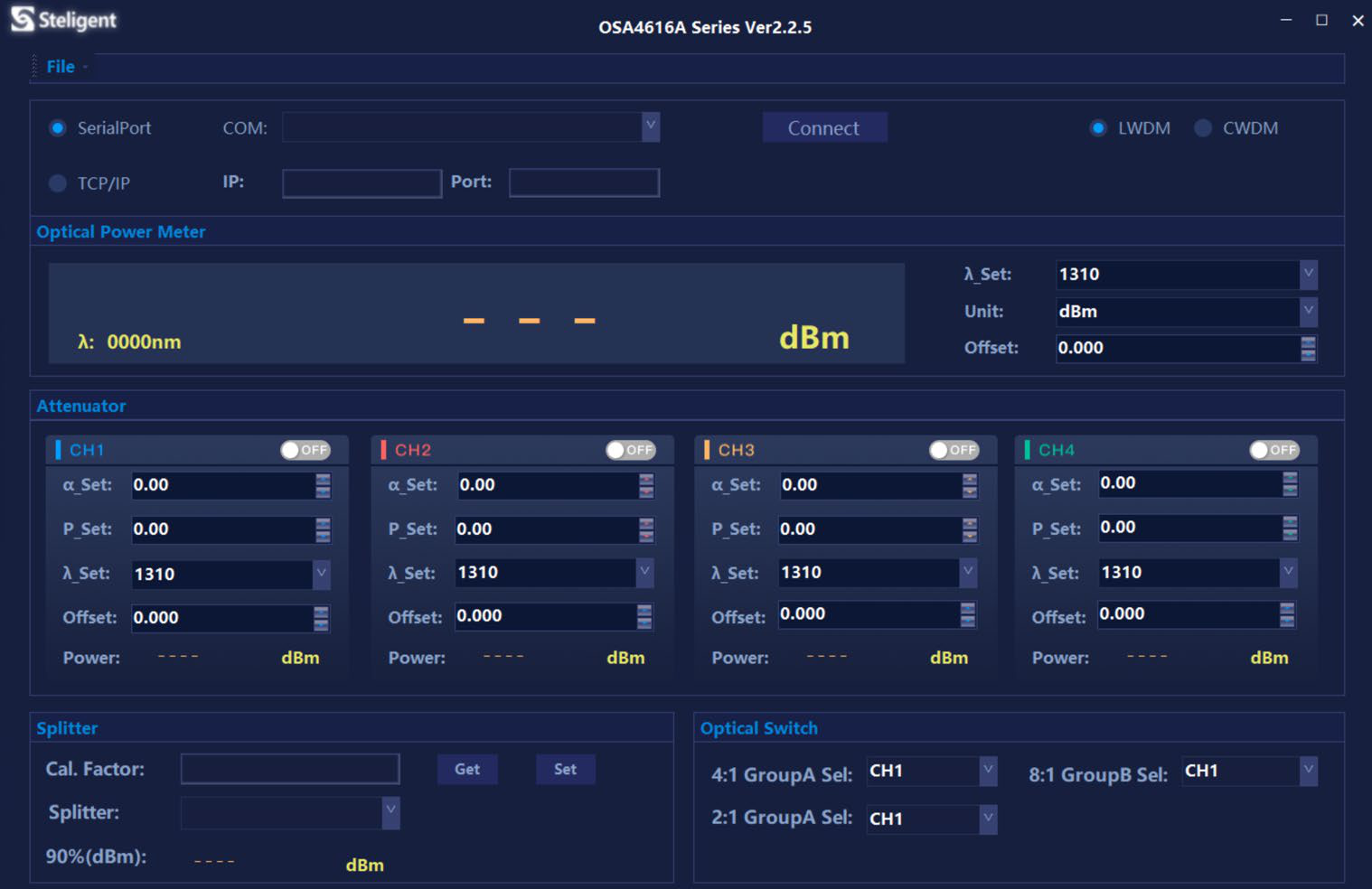

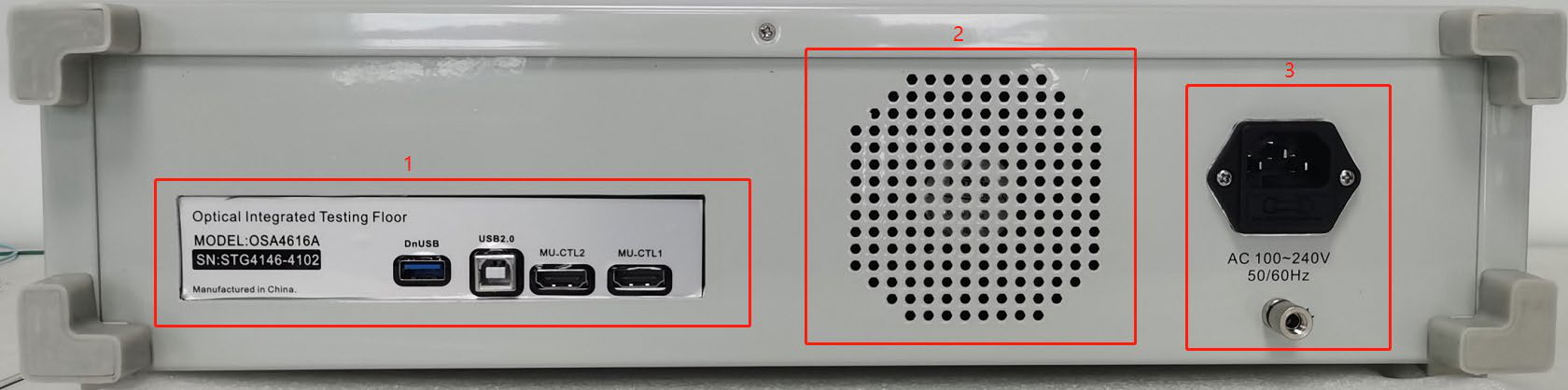

OSA4216A Optical Integrated Testing Floor
The OSA4216A Optical Integrated Testing Floor is a high-performance, cost-effective solution designed for testing 200G/400G TOSA/ROSA components in R&D, manufacturing, and field installations. It features precision variable attenuators, embedded data processing, and remote control capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions (H×W×D) | 88.9mm×426mm×350mm |
| Weight | Approx. 8kg |
| Recommended Recalibration Period | 24month |
| Maximum Operating Altitude | 2000m |
| Warm-up Time | 10minutes |
| Interfaces | USB interfaces |
| Power Consumption | AC 90-250V, 50-60Hz, 20Wmax |
| Attenuation Type | Bright or Dark |
| Attenuation Resolution | Continuous |
| Polarization Dependent Loss | ≤0.1@0dB, ≤0.5@20dB att. |
| Wavelength Dependent Loss | ≤0.3@0dB, ≤1.0@20dB over 20nm span |
| Return Loss | ≥45dB |
| Response Time (10-90% Optical Power) | ≤2ms |
| Driving Power | ≤2mW |
| Maximum Optical Power | ≤500mW |
| Storage Temperature | -50°C to +85°C |
| Calibrated Wavelength | 850nm, 980nm, 1310nm, 1490nm, 1550nm, 1610nm |
| Type of Detector | InGaAs |
| Measuring Range | +25~-60dBm |
| Measuring Unit | dB/dBm/W |
| Display Resolution | 0.01/0.001 |
| Splitting Ratio: 50:50 Port Configuration | 1x1 or 2x2 |
| Excess Loss | 0.07dB (Premium 780-2000nm), 0.1dB (A grade 780-2000nm), 0.2dB (Premium 450-633nm) |
| DPL | 0.1dB (Premium 780-2000nm), 0.15dB (Premium 450-633nm) |
| Operating Power | 5W |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
ADMS Angle-Resolved Spectrometer (ADMS-VIS)
Optical Spectrum Analyzers
Gzbiaoqi
Spectral Band: 380~1100 nm Adjustment Dimensions: Five dimensions, x, y, z, pitch angle, tilt angle Detector [Constant cooling temperature down to -10°C]: Research-grade area-array back-illuminated CCD, 512-pixel linear-array InGaAs, constant cooling temperature down to -10 °C

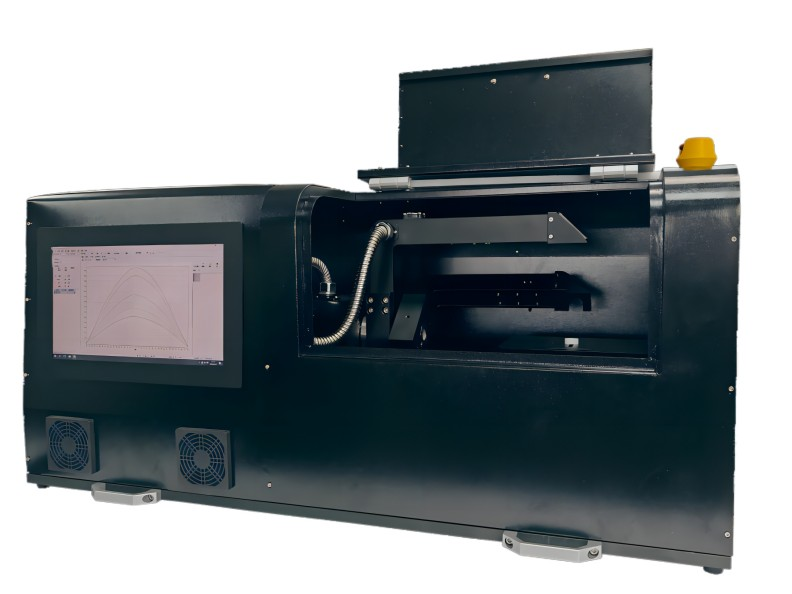

The ADMS Angle-Resolved Spectrometer is a variable-angle transmission/reflection measurement spectrometer that can quickly realize multiple spectral measurement modes such as transmission/transmission scattering/diffuse reflection/radiation/software-compiled free angle. It is suitable for research on the energy band, defects and other characteristics of nano-optical materials such as photonic crystals/superconducting materials/superlattices/diffuse reflection. In industries such as thin-film materials/glass/optical components, the ADMS Angle-Resolved Spectrometer can be used to achieve process control measurement of transmission/transmission scattering/diffuse reflection of optical components at specific angles, and can output BRDF\BTDF distribution functions.
-
ADMS Angle-Resolved Spectrometer (ADMS-NIR)
Optical Spectrum Analyzers
Gzbiaoqi
Spectral Band: 900~1700 nm Adjustment Dimensions: Five dimensions, x, y, z, pitch angle, tilt angle Detector [Constant cooling temperature down to -10°C]: Research-grade area-array back-illuminated CCD, 512-pixel linear-array InGaAs, constant cooling temperature down to -10 °C
The ADMS Angle-Resolved Spectrometer is a variable-angle transmission/reflection measurement spectrometer that can quickly realize multiple spectral measurement modes such as transmission/transmission scattering/diffuse reflection/radiation/software-compiled free angle. It is suitable for research on the energy band, defects and other characteristics of nano-optical materials such as photonic crystals/superconducting materials/superlattices/diffuse reflection. In industries such as thin-film materials/glass/optical components, the ADMS Angle-Resolved Spectrometer can be used to achieve process control measurement of transmission/transmission scattering/diffuse reflection of optical components at specific angles, and can output BRDF\BTDF distribution functions.
-
GRM-2000 Portable Solar Spectrometer
Optical Spectrum Analyzers
Gzbiaoqi
Wavelength Range: 380-1000 nm Single Measurement Time: <1 s Repeatability: <0.5 %

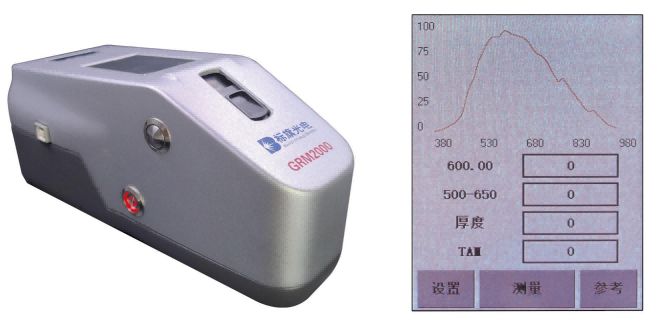

The GRM-2000 portable solar spectrometer can be used for rapid on-site measurement of the reflectance of anti-reflection coatings on the surface of solar photovoltaic panels. It can measure the coating thickness and TAM of photovoltaic glass in real time, and can accurately measure the average reflectance at different wavelengths (bands). The device is compact and portable, suitable for on-site construction and on-site in-situ inspection.
-
ODMS-3 Optical Density Spectrometer
Optical Spectrum Analyzers
Gzbiaoqi
Optical Density Measurement Range: 0~6.0 D Zeroing Stability: <0.02D Measurement Spot: Approx. 1 mm

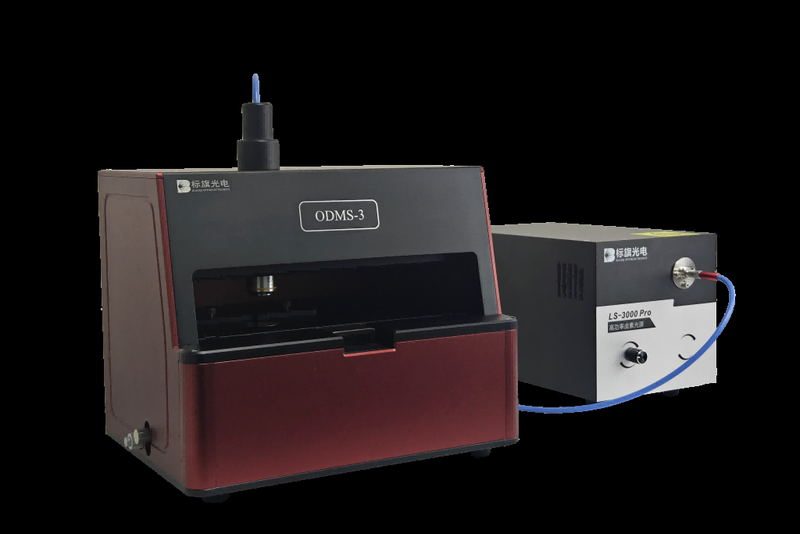

The ODMS-3 optical density spectrometer can quickly measure the optical density value of sample coatings, with a measurement density range up to OD6. The device can quickly measure the OD value at a specific single wavelength or single band, and can also perform transmittance measurement on optical elements, and features rapid measurement of spectral transmittance for small-aperture samples, with a minimum aperture of 1mm. It features high-precision measurement, high-sensitivity adjustment, fast response, and simple operation. It is mainly used for measuring the optical density of ink layers on mobile phones and display panels, and the transmittance of small-hole ink.
-
