OSW108XB Optical Integrated Testing Floor

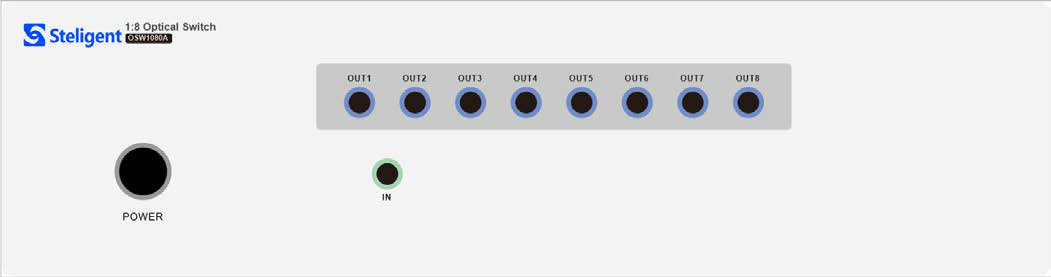

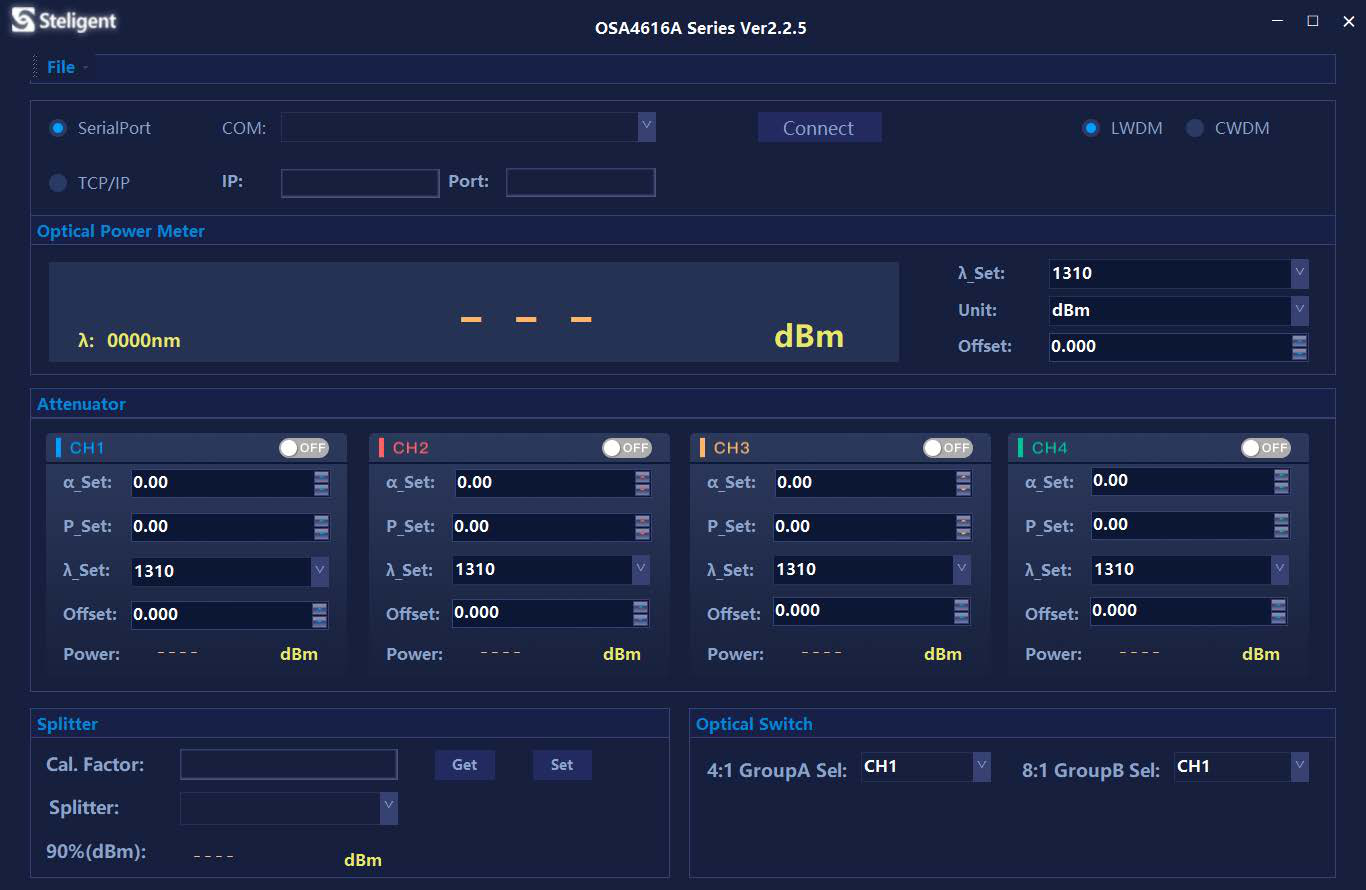

The OSW108XB Optical Integrated Testing Floor is a high-performance, cost-effective, and user-friendly optical switch designed for TOSA/ROSA components R&D, manufacturing environments, and field installations. It features a 1:8 optical switch with USB interface for remote control, ensuring high precision and repeatability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Switching Channel | 1x8 |
| Wavelength | 850±40nm (Multi Mode Fiber), C band/L band/Full band (Single Mode Fiber) |
| Insertion Loss (dB) | 1.8dB typ., 2.2dB max |
| Repeatability (dB) | ≤±0.02 |
| Return Loss (dB) | ≥50 |
| Cross Talk (dB) | ≥50 |
| Wavelength Dependent Loss (dB) | ≤0.3 |
| Polarization Dependent Loss (dB) | ≤0.05 |
| Temperature Dependent Loss (dB) | ≤0.3 |
| Switching Time (ms) | ≤15 |
| Optical Power Handling (mW) | ≤500 |
| Power Consumption (uW) | 100 |
| Durability (Cycles) | 1 Billion Min. |
| Operating Temperature (°C) | -5~+70 |
| Storage Temperature (°C) | -40~+85 |
| Fiber Type | MMF-28 or Equivalent (Multi Mode Fiber), SMF-28 or Equivalent (Single Mode Fiber) |
| Dimension (mm) | OD5.5x28 |
| Dimensions (H x W x D) | 120mm x 442mm x 365mm |
| Weight | Approx. 6.8kg |
| Recommended Recalibration Period | 24 month |
| Operating Temperature | +0°C to +70°C |
| Operating Humidity | 15% to 95%, non-condensing |
| Altitude | 2000m |
| Interfaces | USB interfaces |
| Power Consumption | AC 90-250V, 50-60Hz, 20Wma |
