OSW1619AP Optical Integrated Testing Floor
The OSW1619AP Optical Integrated Testing Floor is a high-performance, cost-effective solution for testing TOSA/ROSA components in R&D, manufacturing, and field installations. It integrates an optical power meter, WDM, optical switch, and optical splitter, providing precise and repeatable measurements.
Save to Favorites

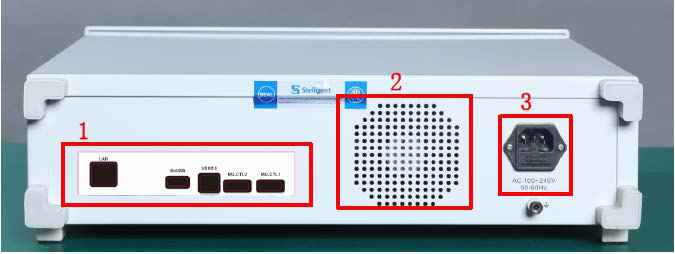

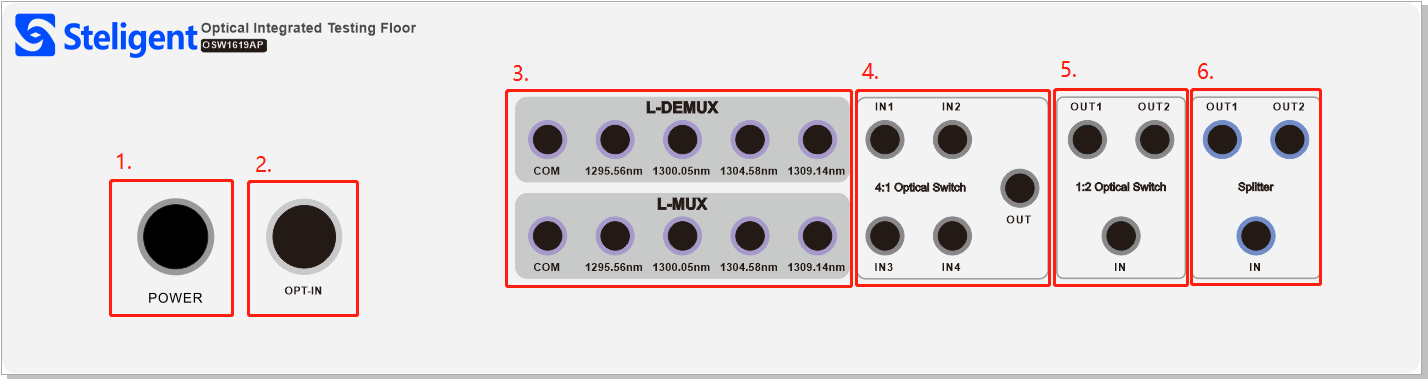

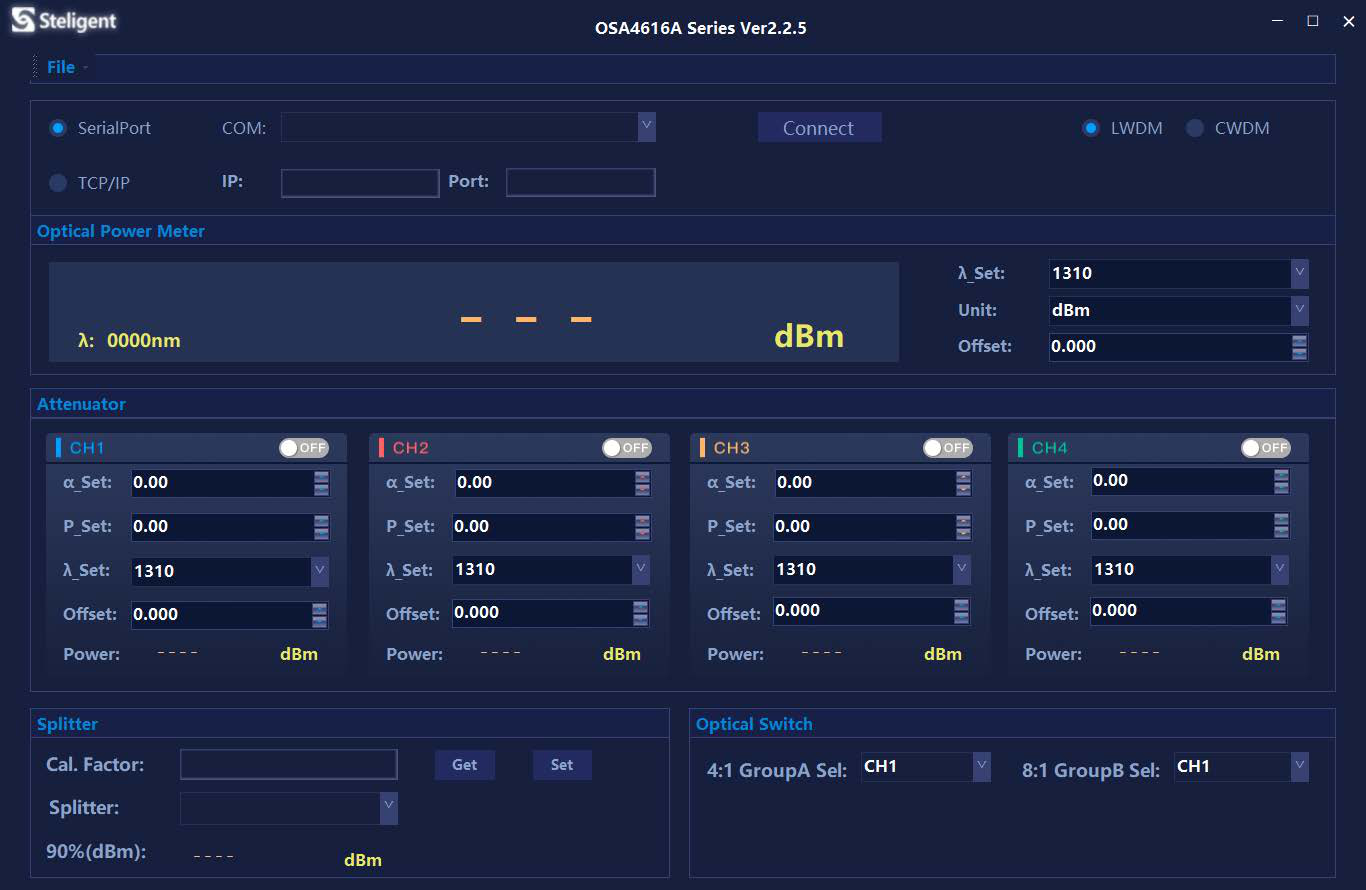

Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions (H×W×D) | 107mm×442mm×365mm |
| Weight | Approx. 6.8kg |
| Recommended Recalibration Period | 24month |
| Operating Temperature | -40~+85°C |
| Operating Humidity | 15%~95%, non-condensing |
| Maximum Operating Altitude | 2000m |
| Interfaces | USB interfaces |
| Power Consumption | 100μW |
| Calibrated Wavelength | 850nm, 980nm, 1310nm, 1490nm, 1550nm, 1610nm |
| Wavelength Range | C band/L band/C+L/others |
| Type of Detector | InGaAs |
| Measuring Range | +5~+75dBm |
| Uncertainty | ±3% |
| Measuring Unit | dB/dBm/xW |
| Display Resolution | 0.01/0.001 |
| Working temperature | -10~+60°C |
| Storage Temperature | -50~+85°C |
| Operating Wavelength Range | 1280~1330nm |
| Channel Number | 4 |
| Channel Spacing | 800GHz |
| Centre Wavelength | 1295.56, 1300.05, 1304.58, 1309.14nm |
| Passband Width | ITU±1.0nm |
| Insertion Loss | 3.6dB (Premium), 3.9dB (A grade) |
| Passband Ripple | ≤0.5 |
| Adjacent Channel Isolation | ≥25dB |
| Non-Adjacent Channel Isolation | ≥25dB |
| PDL | ≤0.1dB |
| PMD | ≤0.1ps |
| Return Loss | ≥50dB |
| Directivity | ≥50dB |
| Fiber Type | SMF-28 or Equivalent |
| Fiber Length | 0.5m |
| Connector Type | FC/UPC |
| Max. Optical Power | 300mW |
| Package Dimension | 100×80×10mm ABS |
| RoHS Compliance | Yes |
| Switching Channel | 1x2, 1x4 |
| Repeatability | ±0.02dB |
| Cross Talk | ≥50dB |
| Wavelength Dependent Loss | ≤0.3dB |
| Polarization Dependent Loss | ≤0.2dB |
| Temperature Dependent Loss | ≤0.3dB |
| Switching Time | ≤15ms |
| Optical Power Handling | ≤500mW |
| Durability | 1 Billion Min. Cycles |
| Dimension | OD5.5×28mm |
| Port Configuration | 1x1 or 2x2 |
| Central Wavelength | 1310±40 and 1490±20 and 1550±20 |
| Excess Loss | 0.07dB (Premium), 0.1dB (A grade) |
| Uniformity | 0.8dB (Premium), 1.2dB (A grade) |
| DPL | 0.15dB (Premium), 0.20dB (A grade) |
| Operating Power | 5W |
| Package Type | S6: 3×54: for bare fiber; S8: 3×70: for 0.9mm loose tube; M1: 9×16×90: for 0.9mm loose tube or 2mm cable or 3mm cable |
