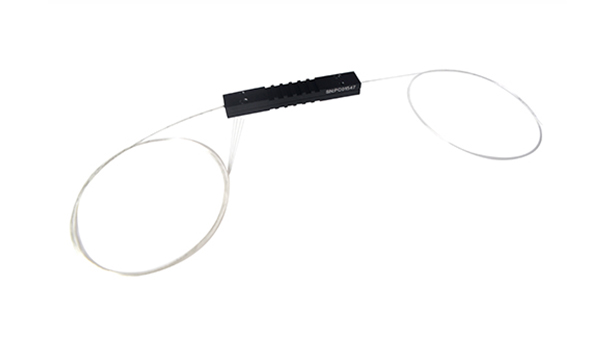

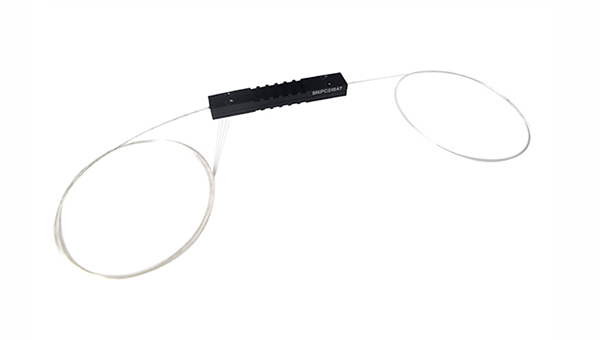

(N+1)×1 High Power Reverse Pump Combiner
Lightel High Power Reverse Pump Beam Combine is specially designed for high power fiber lasers.Usually combined with the forward optical path to form a two-way pump structure, to obtain higher amplification efficiency and higher output power.
Specification Snapshot
Return Loss [without connectors]
>45 dB
Operating Temperature
0~75 ℃
Request a Quote
Download Datasheet
Overview
Lightel High Power Reverse Pump Beam Combine is specially designed for high power fiber lasers.Usually combined with the forward optical path to form a two-way pump structure, to obtain higher amplification efficiency and higher output power.
Specifications
| Parameter | Value |
|---|---|
| Port Configuration [2+1] | (2+1)×1 |
| Port Configuration [6+1] | (6+1)×1 |
| Port Configuration [9+1] | (9+1)×1 |
| Pump light wavelength | 800~1000 nm |
| Signal light wavelength | 1030~1080 nm or 1450~1600 nm |
| Input Signal Fiber [Port Configuration: (2+1)×1 / (6+1)×1] | X/125 or X/250 or X/400 |
| Input Signal Fiber [Port Configuration: (9+1)×1] | X/250 or X/400 |
| Pump Fiber | 105/125 0.15NA/0.22NA or 200/220 0.22NA |
| Output Fiber [Port Configuration: (2+1)×1 / (6+1)×1] | Y/125 or Y/250 or Y/400 |
| Output Fiber [Port Configuration: (9+1)×1] | Y/250 or Y/400 |
| Pump Efficiency [without connectors; Port Configuration: (2+1)×1 / (6+1)×1] | >90 % |
| Pump Efficiency [without connectors; Port Configuration: (9+1)×1] | >93 % |
| Signal Insertion Loss [without connectors; Port Configuration: (2+1)×1 / (6+1)×1] | <0.5 dB |
| Signal Insertion Loss [Port Configuration: (9+1)×1] | <0.5 |
| Total Power Capacity [without connectors; Port Configuration: (2+1)×1] | 300 W |
| Total Power Capacity [without connectors; Port Configuration: (6+1)×1 / (9+1)×1] | 1000 W |
| Backward Cladding Power [without connectors; Port Configuration: (2+1)×1 / (9+1)×1] | <150 W |
| Backward Cladding Power [without connectors; Port Configuration: (6+1)×1] | <100 W |
| Return Loss [without connectors] | >45 dB |
| Pigtail | Customized |
| Package Dimensions | D4,D5 |
| Operating Temperature | 0~75 ℃ |
| Storage temperature | -40~85 ℃ |
Applications
high power fiber lasers, fiber amplifiers
Key Features
high transmission efficiency, air cladding technology to ensure strong optical power transmission configuration can be customized
