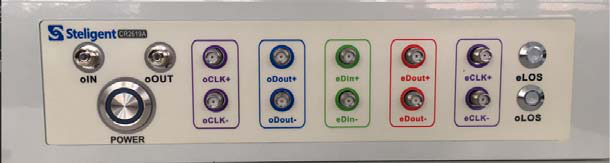

CR2619A Electrical & Optical 100M~11.3Gb/s CDR
The Steligent CR2619A is a high-performance and cost-effective electrical and optical CDR supporting data rates from 100Mbps to 11.3Gbps. It is designed for testing crosstalk susceptibility, backplanes, and multi-lane serial data systems such as HDMI, SATA, USB3.1, and more. It is also suitable for production testing of AOC and electro-optical PON modules, recovering data and clock from module or backplane data streams.
Specification Snapshot
Input AC Characteristics S11
-12dB
Request a Quote
Download Datasheet
Overview
The Steligent CR2619A is a high-performance and cost-effective electrical and optical CDR supporting data rates from 100Mbps to 11.3Gbps. It is designed for testing crosstalk susceptibility, backplanes, and multi-lane serial data systems such as HDMI, SATA, USB3.1, and more. It is also suitable for production testing of AOC and electro-optical PON modules, recovering data and clock from module or backplane data streams.

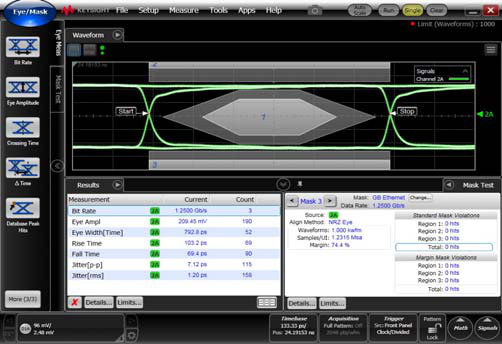

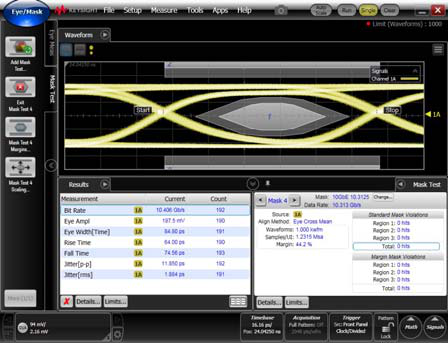

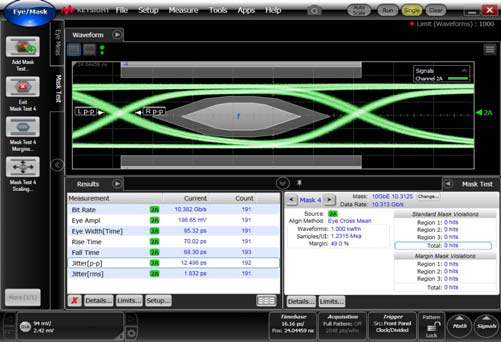

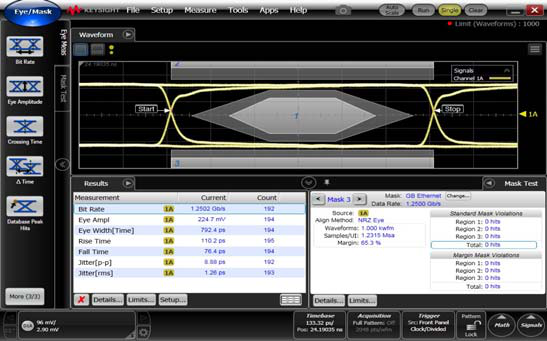

Specifications
| Parameter | Value |
|---|---|
| Data Rate Support Range | 0.1~11.3GbpsGbps |
| Peak-to-Peak Differential Input | 1.0V |
| Input AC Characteristics S11 | -12dB |
| Loss of Signal Detect Minimum | 10mVp-p |
| Loss of Signal Detect Maximum | 5mVp-p |
| Loss of Signal Assert Time | 128mVp-p |
| Loss of Signal Dessert Time | 5.7dB |
| Loss of Lock Detect DCO Frequency Error | 1000ppmppm |
| Loss of Lock Assert Response Time 10Mbps | 51μs |
| Loss of Lock Assert Response Time 2.5Gbps | 25μs |
| Loss of Lock Assert Response Time 8.5Gbps | 18μs |
| Loss of Lock Assert Response Time 10Gbps | 18μs |
| Lock to Data Mode Acquisition Time 10Mbps | 24ms |
| Lock to Data Mode Acquisition Time 2.5Gbps | 0.5ms |
| Lock to Data Mode Acquisition Time 8.5Gbps | 0.5ms |
| Lock to Data Mode Acquisition Time 10Gbps | 0.5ms |
| Data Rate Readback Accuracy Coarse | ±5% |
| Data Rate Readback Accuracy Fine | ±100ppm |
| Phase-Locked Loop Jitter Transfer Bandwidth OC-192 | 294~529kHz |
| Phase-Locked Loop Jitter Transfer Bandwidth 8GFC3 | 1242~1676kHz |
| Phase-Locked Loop Jitter Transfer Bandwidth OC-48 | 663~896kHz |
| Phase-Locked Loop Jitter Transfer Bandwidth OC-12 | 157~181kHz |
| Phase-Locked Loop Jitter Transfer Bandwidth OC-3 | 175kHz |
| Jitter Tolerance Unfiltered | 0.0046~0.0156UIp-p |
| Jitter Tolerance OC-192 | 0.0276~0.0007UIp-p |
| Jitter Tolerance 8GFC3 JTSPAT | 0.0011UIrms |
| Sinusoidal Jitter 5.098MHz | 20kHz |
| Rx Jitter Tracking Test 400kHz | 0.0076UIp-p |
| Rx Jitter Tracking Test 510kHz | 0.0002UIp-p |
| Rx Jitter Tracking Test 100kHz | 0.0003UIrms |
| Voltage Modulation Amplitude | 170mVp-p@100MHz |
| CML Output Timing Characteristics Rise Time 20% to 80% | 17.4~46.5ps |
| CML Output Timing Characteristics Fall Time 20% to 80% | 22.2~33.1ps |
Applications
1. Multi-lane serial data channels signal recovery 2. SONET/SDH OC-1/OC-3/OC-12/OC-48/OC-192 and all associated FEC rates 3. 1GFC, 2GFC, 4GFC, 8GFC, 10GFC, 1GE, and 10GE 4. WDM transponders 5. Any rate regenerators/repeaters 6. 40G QSFP line cards, 10G SFP+ line cards 7. Optical - Electro Transceiver Testing 8. High-Speed SerDes Testing & Characterization 9. Installation and Maintenance Test of Network Equipment
Key Features

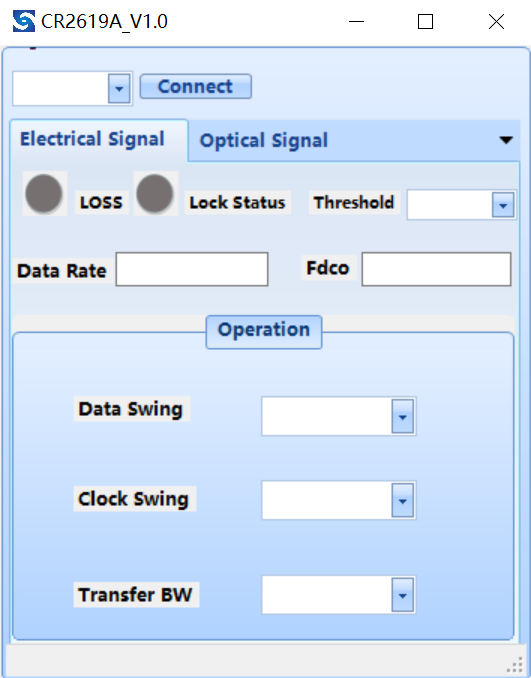

1. Two independent channels: electrical and optical 2. Continuous rate support between 100Mbps and 11.3Gbps 3. Divided trigger output options: ½ data rate clock output or 1/8 data clock output 4. No input reference clock required 5. Exceeds SONET/SDH requirements for jitter tolerance 6. Output optical power is 90% ratio to input optical power 7. Quantizer sensitivity: 40mV typical (limiting amplifier mode) - electrical channel 8. Optional limiting amplifier, equalizer, and bypass inputs 9. Programmable jitter transfer bandwidth to support G.8251 OTN 10. Programmable slice level 11. Sample phase adjust (5.65Gbps or greater) 12. Output polarity invert 13. Programmable LOS threshold 14. Loss of signal alarm (limiting amplifier mode only) 15. Loss of lock indicator for both electrical and optical channels 16. Independent voltage level adjustment for each output 17. Support optical to electrical data output 18. Integrated clock data recovery 19. Ability to swap data input polarity 20. Fast USB interface for ATS 21. High signal quality, fast rise time, and low intrinsic jitter 22. Fully programmable and supports external API calls 23. Controlled by embedded touchscreen GUI or external software via USB interface
