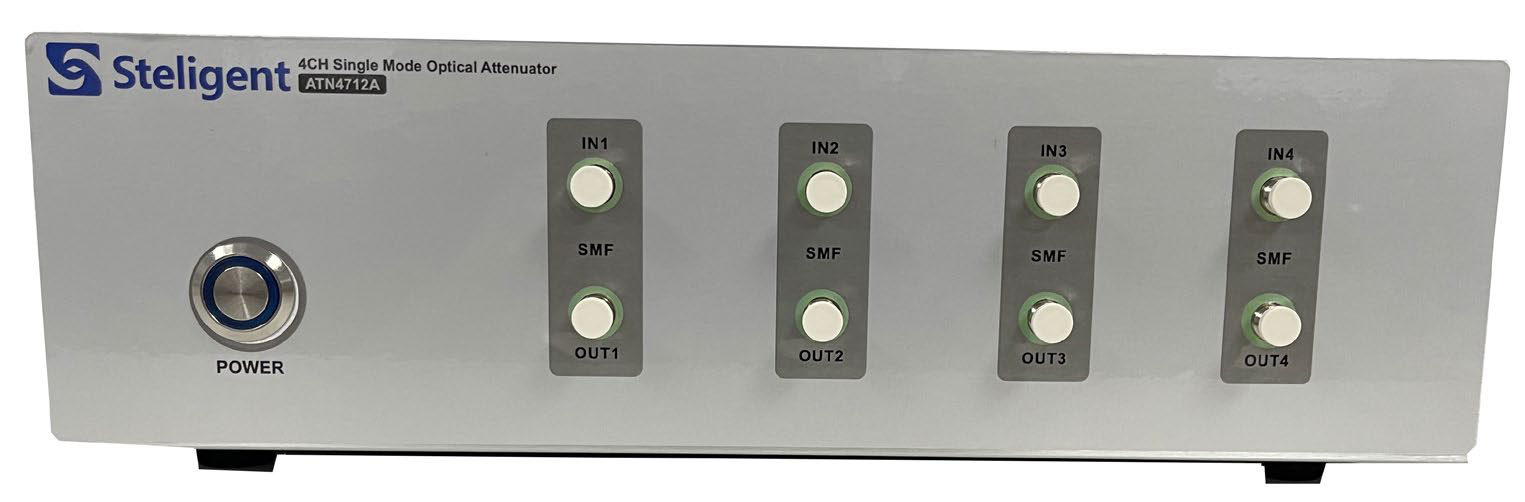

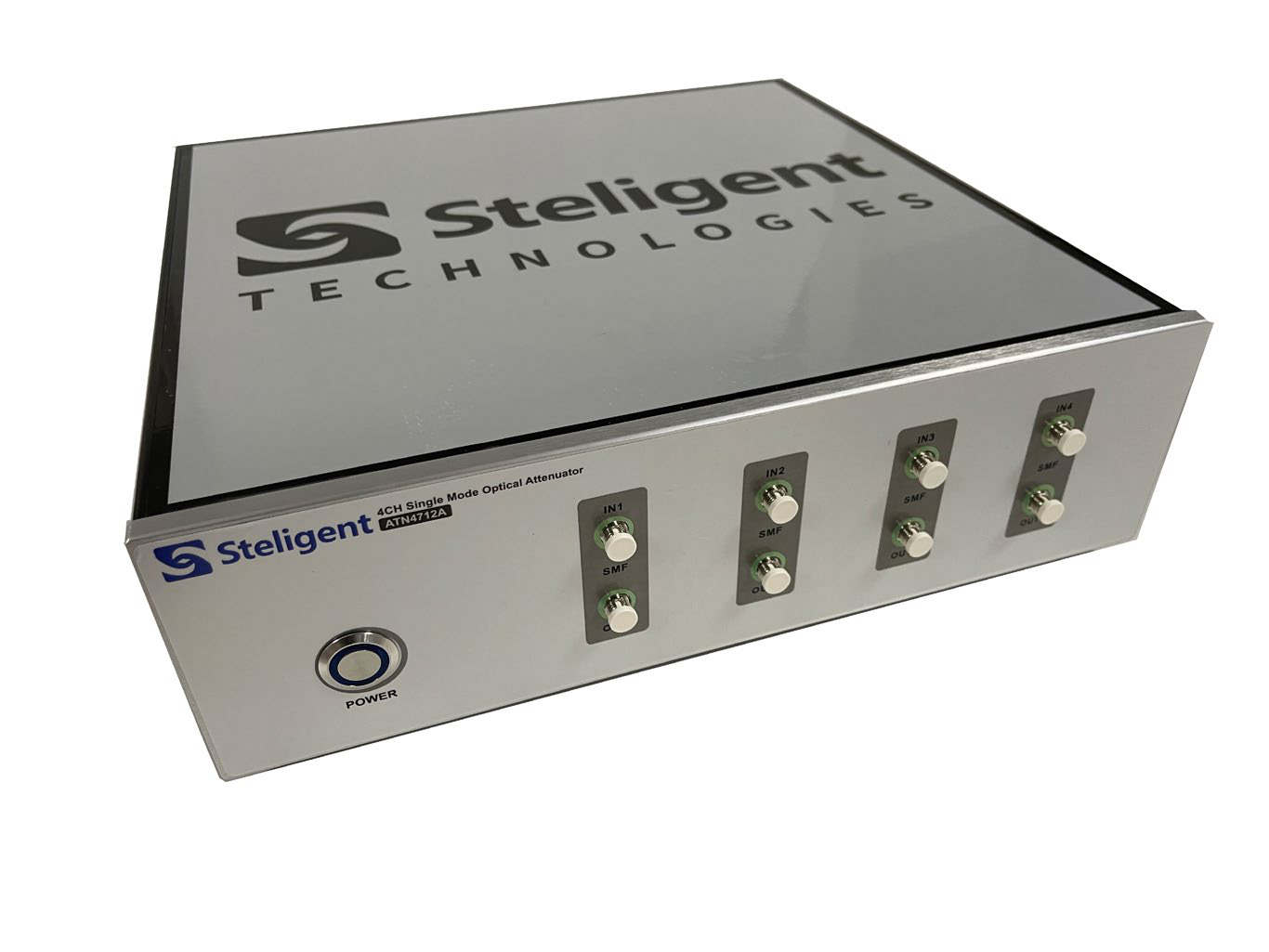

ATN4712A 4xCH Single Mode Optical Attenuator

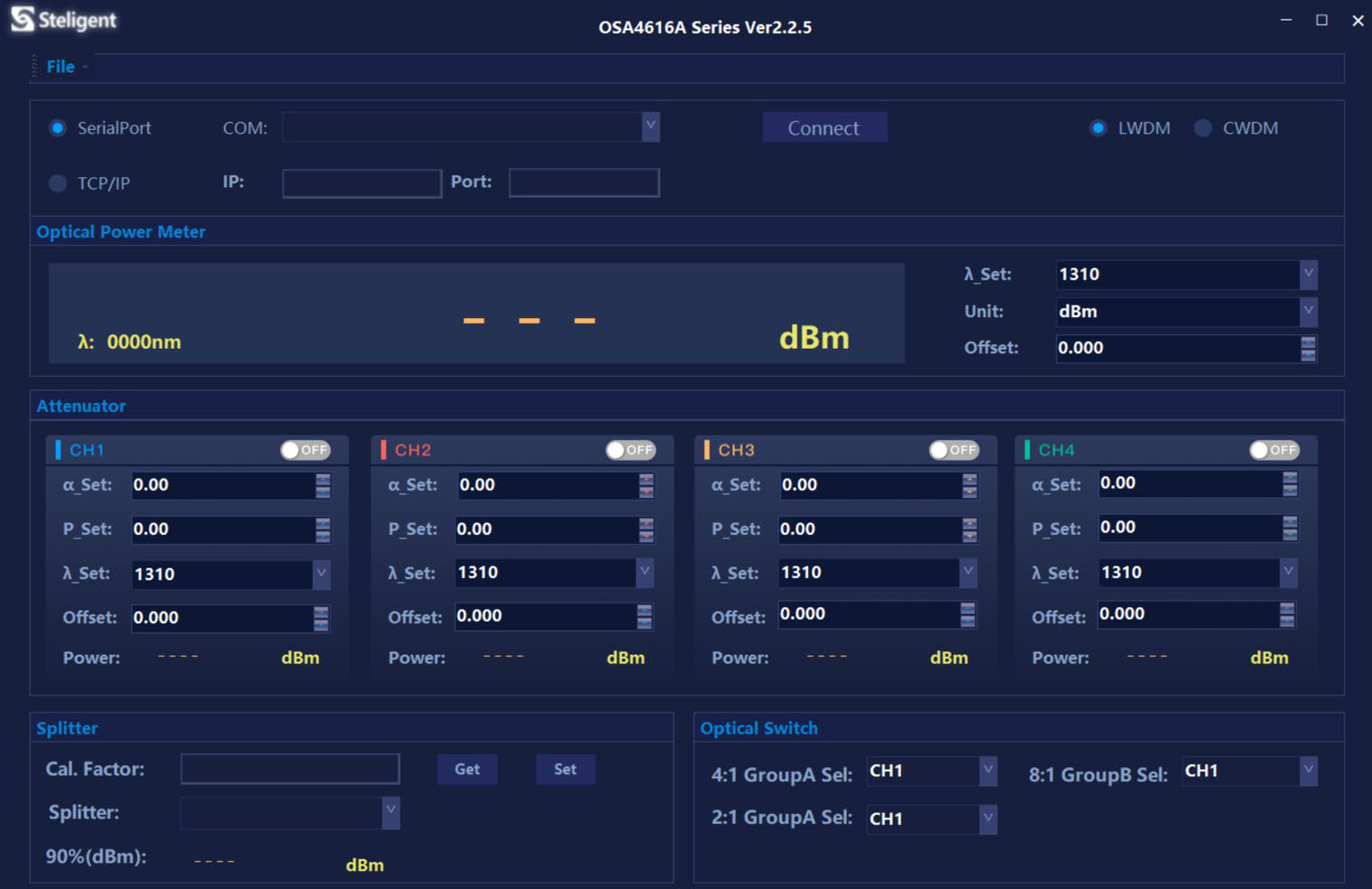

The ATN4712A is a high-performance, cost-effective, and easy-to-use 4-channel single-mode optical attenuator designed for precise and repeatable testing of optical and electro-optical modules. It integrates a MEMS-based variable optical attenuator and embedded data processing platform, providing remote control capabilities via USB interface.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) | O band/C band/L band/Full band/others |
| Attenuation Type | Bright or Dark |
| Attenuation Range (dB) | 0~60 |
| Insertion Loss (dB) | ≤1.6 |
| Attenuation Resolution (dB) | Continuous |
| Polarization Dependent Loss (dB) | ≤0.1@0dB, ≤0.5@-20dB att. |
| Wavelength Dependent Loss (dB) | ≤0.3@0dB, ≤1.0@-20dB over 20nm span |
| Return Loss (dB) | ≥45 |
| Linearity (dB) | ±0.08 |
| Fiber Type | SMF-28e fiber |
| Response Time (ms) | ≤2 |
| Driving Voltage (V) | 0~6.5V(6V for Dark) or 0~15V(14V for Dark) |
| Driving Power (mW) | ≤2 |
| Maximum Optical Power (mW) | ≤500 |
| Operating Temperature (°C) | 0~70 |
| Storage Temperature (°C) | -40~85 |
| Weight (kg) | Approx. 5 |
| Recommended Recalibration Period | 24 months |
| Operating Humidity | 15%~95%, non-condensing |
| Maximum Operating Altitude | 2000m |
| Warm-up Time | 10 minutes |

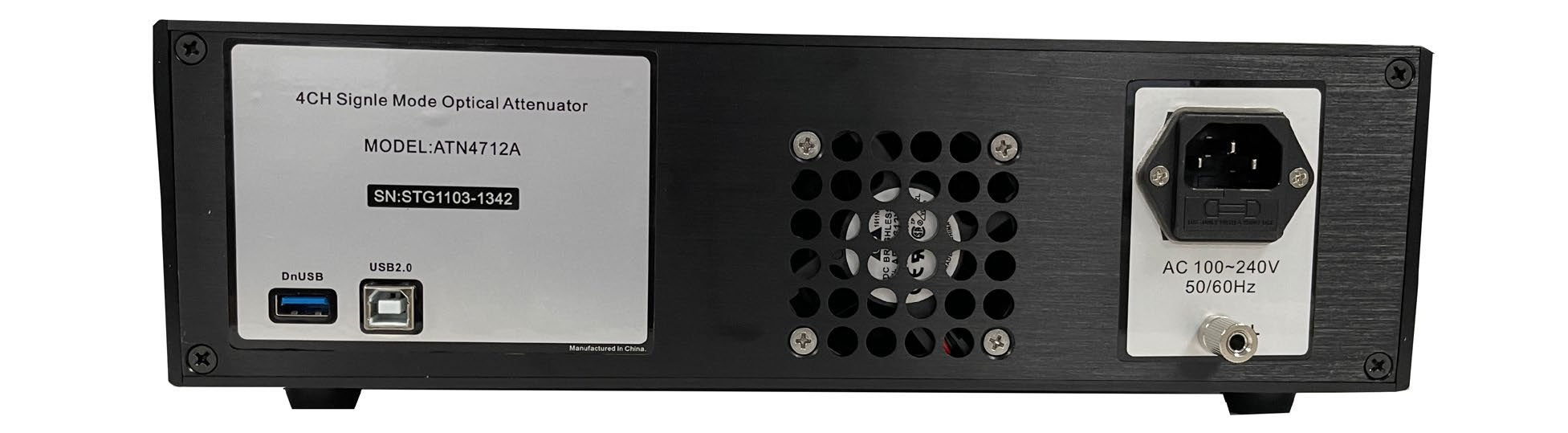

| Interfaces | USB |
| Power Consumption | AC 90~250V, 50~60Hz, 20W max. |
