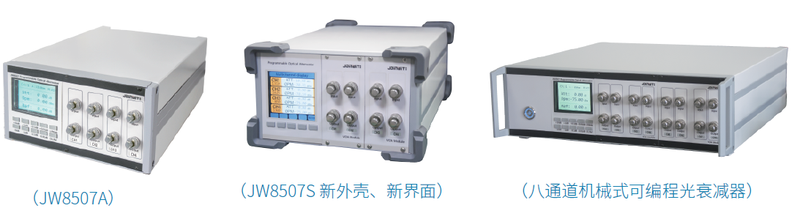

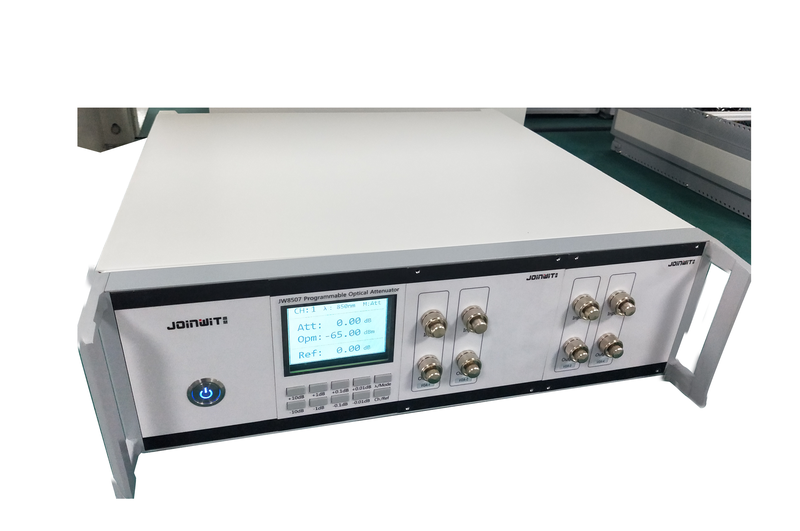

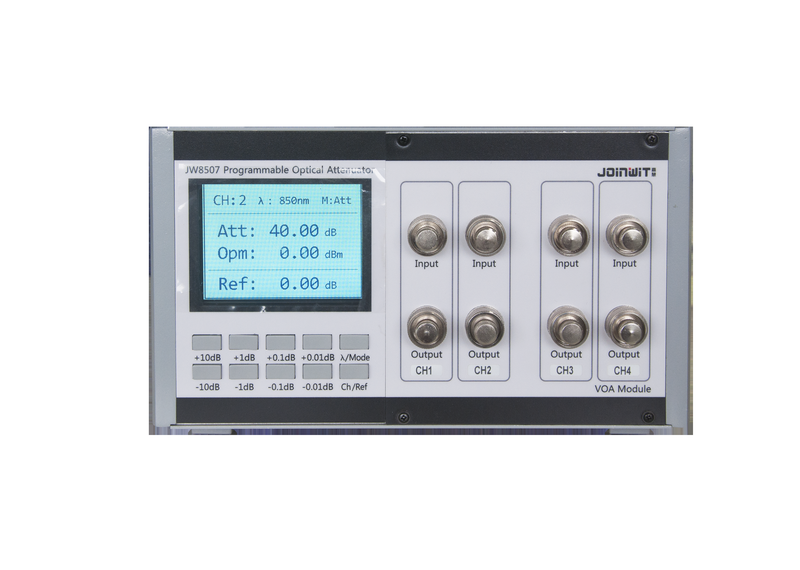

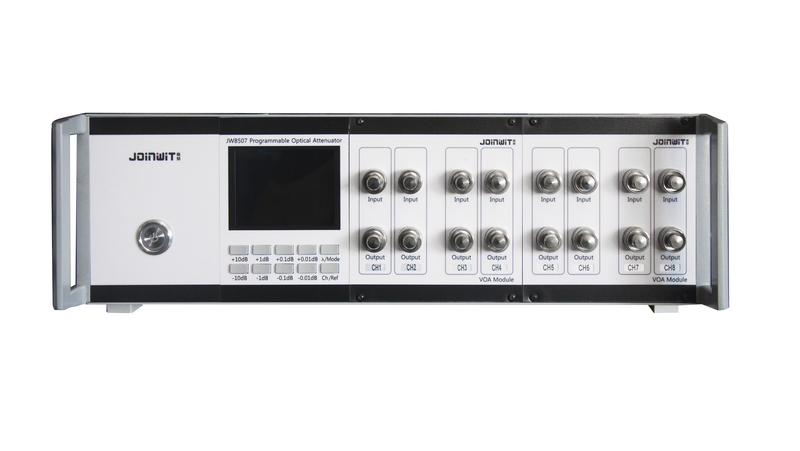

JW8507A Programmable Optical Attenuator
The JW8507A mechanical programmable optical attenuator is a mechanical attenuation solution developed by Shanghai JiaHui specifically for high-reliability, high-precision optical communication system testing. It adopts a precise mechanical tuning structure combined with an innovative circuit design, aiming to meet the stringent requirements of optical modules, fiber-optic equipment and systems for long-term stability, wide dynamic range and ultra-high precision in R&D verification and production testing. It is an ideal solution for performance verification and quality assurance of optical communication products.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range [Single-mode (S)] | 1260~1650 nm |
| Wavelength Range [Multi-mode (M)] | 850/1300 nm |
| Calibration Wavelength [Single-mode (S)] | 1310/1490/1550/1625 nm |
| Calibration Wavelength [Multi-mode (M)] | 850/1300 nm |
| Applicable Fiber Type [Single-mode (S)] | 9/125 μm |
| Applicable Fiber Type [Multi-mode (M)] | 50/125 μm or 62.5/125 μm |
| Max Attenuation [Single-mode (S)] | 60 dB |
| Max Attenuation [Multi-mode (M)] | 55 dB |
| Attenuation Linearity [Single-mode (S)] | ±0.2 dB |
| Attenuation Linearity [Multi-mode (M)] | ±0.3 dB |
| Insertion Loss [Single-mode (S)] | ≤1.5 dB |
| Insertion Loss [Multi-mode (M)] | ≤2 dB |
| Display Resolution | 0.01 dB |
| Maximum Allowable Input | +27 dBm |
| Repeatability | ±0.05 dB |
| Optical Interface Type [APC optional] | FC(SC/ST)/PC (APC optional) |
| Operating Power Supply [AC] | 220 V AC |
| Communication Interface [RJ45 optional] | RS232 (RJ45 optional) |
| Command response time | <0.2 s |
| Operating Temperature | -5~40 ℃ |
| Storage Temperature | -25~70 ℃ |
| External Dimensions | 380 mm × 235 mm × 133 mm |

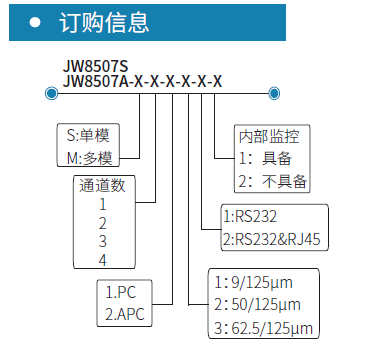

Key Features
