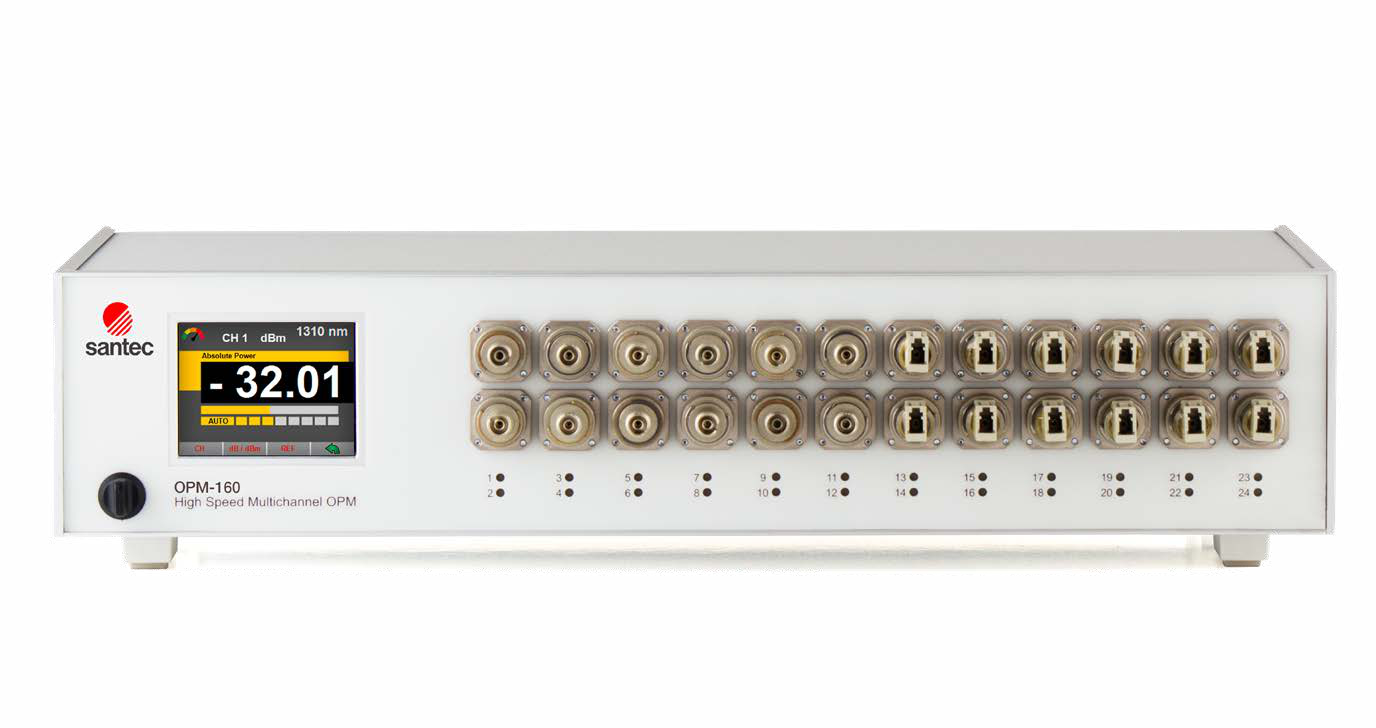

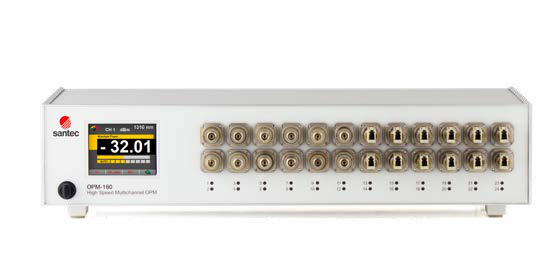

OPM-160 High-Speed Optical Power Meter
The OPM-160 is a multichannel, high-speed optical power meter designed for simultaneous monitoring of up to 24 channels. It offers a maximum sampling rate of 125,000 samples per second and supports various detector types, making it ideal for high-speed optical measurements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) 1mm InGaAs | 850 to 1700 |
| Wavelength Range (nm) 2mm HP InGaAs | 850 to 1700 |
| Wavelength Range (nm) 3mm Silicon | 400 to 1100 |
| Power Range (dBm) 1mm InGaAs | -80 to +10.2 |
| Power Range (dBm) 2mm HP InGaAs | -80 to +10.2 |
| Power Range (dBm) 3mm Silicon | -30 to +5 |
| Total Uncertainty | ±3% |
| Power Resolution (dB) | 0.002 |
| Linearity (dB) | ±0.05@-10dBm |
| Sampling Time | 8μs |
| Remote Interface | USB 3.1 |
| Display | 2.8" touch screen |
| Power Supply | Input: 90-264VAC, 47-63Hz; Output: 9VDC, 2.2A |
| Power Consumption (W) | 18 maximum |
| Max Detector Count | 24 |
| Unit Dimensions (W×H×D) (cm) | 44.2×8.8×30.3 |
| Operating Temperature (°C) | 5 to 40 |
| Humidity (non-condensing) | 5% RH to 40% RH |
