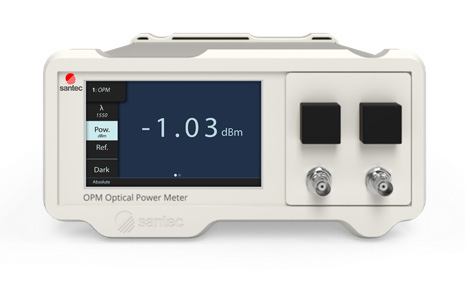

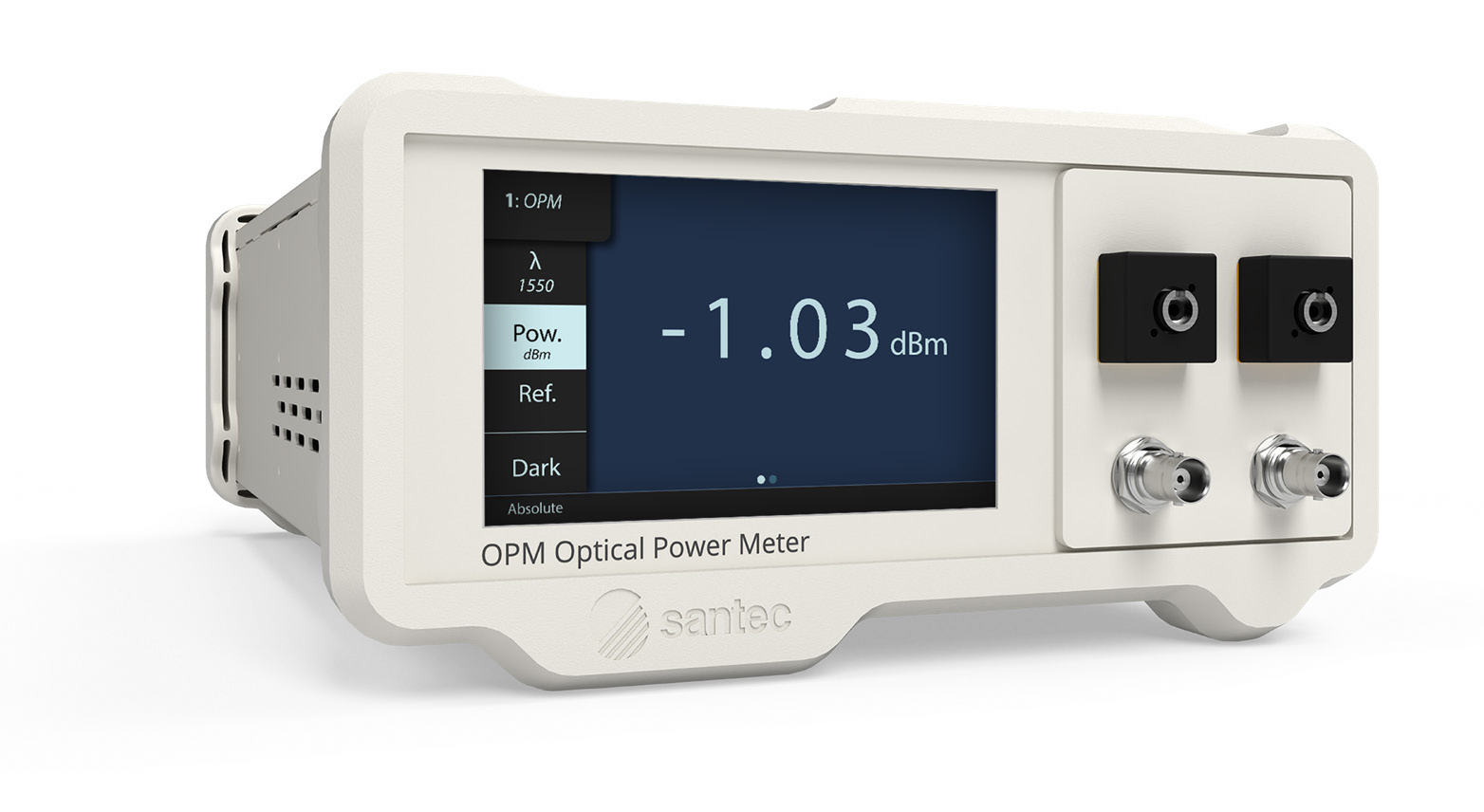

OPM-200 High-Performance Optical Power Meter

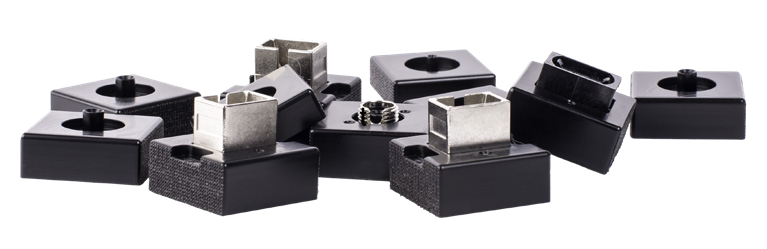

The OPM-200 High-Performance Optical Power Meter is the latest generation of Santec power meters, featuring a 2mm InGaAs detector capable of measuring power down to -80dBm and an integrating sphere detector measuring up to 30dBm over a wavelength range of 840 to 1700nm. It offers superior accuracy, selectable averaging times, and compatibility with SD Slide Detector Adapters for flexible and automated optical alignment.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Detector Type | 2mm InGaAs, Integrating sphere (InGaAs) |
| Wavelength Range (nm) | 840 to 1700 |
| Power range (dBm) | 8 to -80 (2mm InGaAs), 30 to -50 (Integrating sphere) |
| Max Safe Power (dBm) | 16 (2mm InGaAs), 30.8 (Integrating sphere) |
| Uncertainty at Ref Conditions | ±3.7% (840 to 1200nm), ±2.7% (1200 to 1650nm) |
| Power Resolution (dB) | 0.001 |
| Wavelength resolution (nm) | 0.015 |
| Linearity (dB) | ±0.03±20pW (840 to 1200nm), ±0.02±5pW (1200 to 1650nm) |
| Polarization Dependent Responsivity (dB) | 0.2 to 2.2 |
| Averaging Time | 50μs to 1s |
| Analog Output | 0 to 2.2V |
| Data Logging | 128,000 points per detector |
| Remote Interface | USB or Ethernet |
| Display | 5" touch screen |
| Input Voltage | 100-240VAC, 50-60Hz |
| Power Consumption (VA) | 60 maximum |
| Unit Dimensions W x H x D (cm) | 23.5x12x32.5 (OPM-200), 8.5x5x13.3 (RD-IN2-OPM-200), 6.8x8.5x13.3 (RD-INS-OPM-200) |
| Remote-head Mounting Hole Thread Size | M6 |
| Shipping Box Dimensions W x H x D (cm) | 36.5x39x53 |
| Unit Weight (kg) | 3 (OPM-200), 0.6 (RD-IN2-OPM-200), 0.6 (RD-INS-OPM-200) |
| Total Shipment Weight (kg) | 4 |
| Operating Temperature (°C) | 5 to 40 |
| Storage Temperature (°C) | -40 to 70 |
| Humidity (non-condensing) | Maximum 95% RH from 5 to 40°C |
