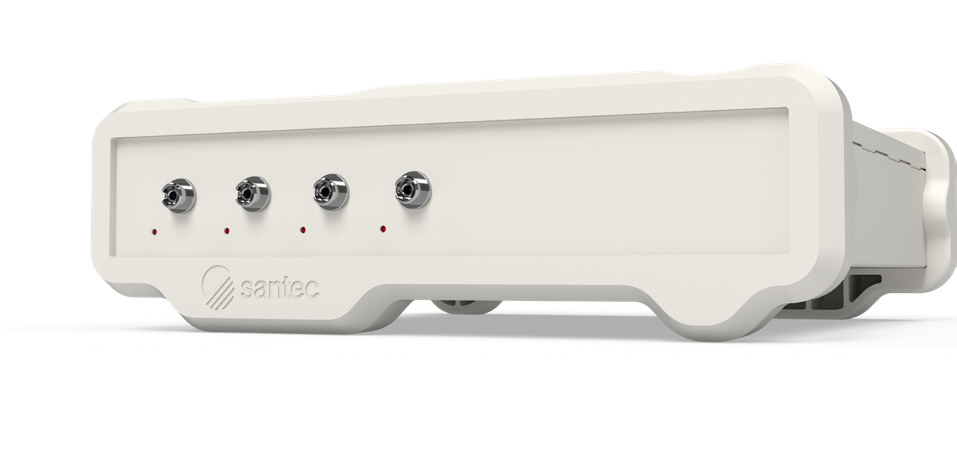

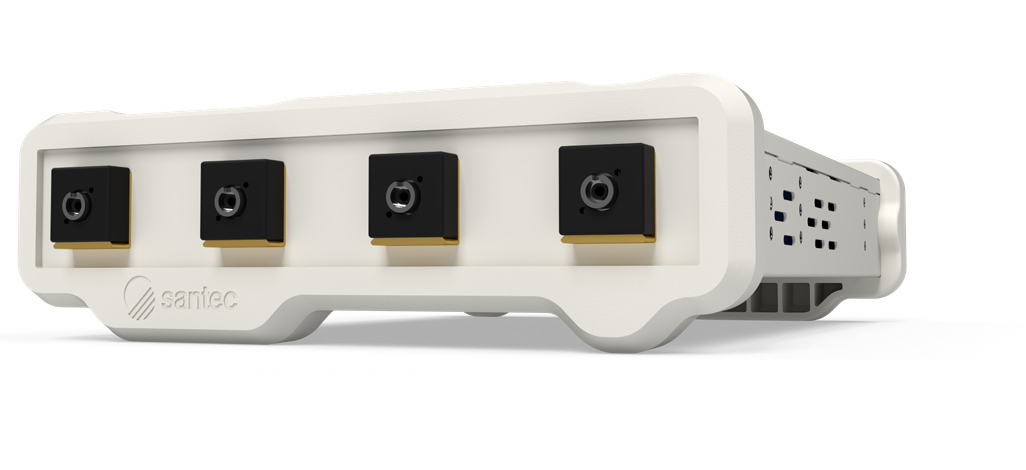

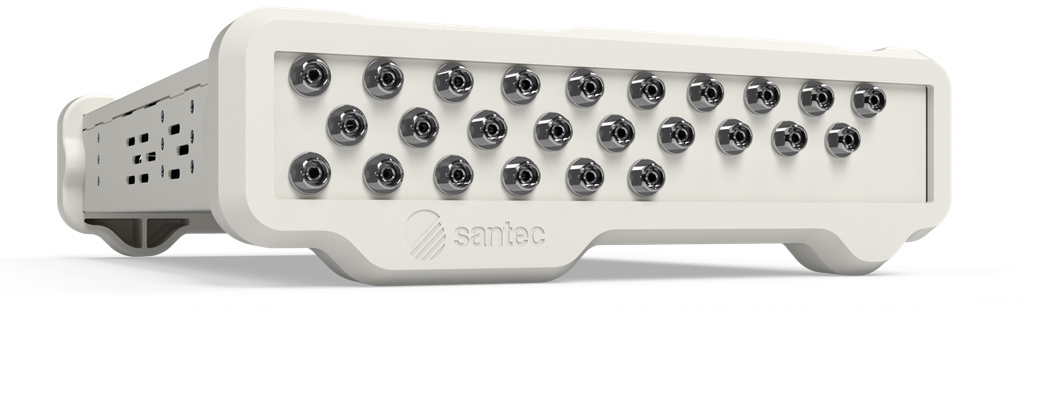

XCS Expandable Chassis System
The XCS Expandable Chassis System is a modular optical testing solution designed to adapt to evolving needs. It allows users to combine sources, switches, attenuators, and power meters for customized configurations.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type (μm) FP Laser | 9/125 |
| Fiber Type (μm) DFB | 9/125 |
| Fiber Type (μm) LED | 50/125, 62.5/125 or 105/125 |
| Nominal Wavelengths (nm) FP Laser | 1310/1490/1550/1625 |
| Nominal Wavelengths (nm) DFB | 1271 to 1611 |
| Nominal Wavelengths (nm) LED | 850/1300 |
| Center Wavelength Accuracy (nm) FP Laser | ≤15 |
| Center Wavelength Accuracy (nm) DFB | ≤3 |
| Center Wavelength Accuracy (nm) LED | ≤30 |
| Source Bandwidth (nm) FP Laser | <1 |
| Source Bandwidth (nm) DFB | <1 |
| Source Bandwidth (nm) LED | <25 |
| Output Power (typ.) (dBm) DFB | 0, 10 or 13 |
| Output Power (typ.) (dBm) LED | -18 @850nm, -21 @1300nm |
| Fiber Type (μm) Single-mode Attenuator | 9/125, Panda PM, HI1060 |
| Fiber Type (μm) Multimode Attenuator | 50/125 or 62.5/125 |
| Wavelength Range (nm) Single-mode Attenuator | 1200-1700, 1200-1700, 960-1080 |
| Wavelength Range (nm) Multimode Attenuator | 750-1700 |
| Attenuation Range (dB) Single-mode Attenuator | 60/100, 60/100, 60 |
| Attenuation Range (dB) Multimode Attenuator | 60 |
| Insertion Loss (dB) Single-mode Attenuator | 1.2/1.5, 1.7/2.0 |
| Insertion Loss (dB) Multimode Attenuator | 1.2/1.5 |
| Return Loss (dB) Single-mode Attenuator | 60, 55, 50 |
| Return Loss (dB) Multimode Attenuator | 35 |
| PER (dB) Single-mode Attenuator | N/A, 23 |
| PER (dB) Multimode Attenuator | N/A |
| Repeatability (dB) Single-mode Attenuator | ±0.01 |
| Repeatability (dB) Multimode Attenuator | ±0.01 |
| Absolute Accuracy (dB) Single-mode Attenuator | ±0.1 |
| Absolute Accuracy (dB) Multimode Attenuator | ±0.1 |
| Maximum Optical Input Power (dBm) Single-mode Attenuator | 23 |
| Maximum Optical Input Power (dBm) Multimode Attenuator | 23 |
| Beam Block (dB) Single-mode Attenuator | 100 |
| Beam Block (dB) Multimode Attenuator | 100 |
| Fiber Type (μm) Single-mode Switch | 9/125, Panda PM |
| Fiber Type (μm) Multimode Switch | 50/125 or 62/125 |
| Wavelength Range (nm) Single-mode Switch | 1250-1670 |
| Wavelength Range (nm) Multimode Switch | 840-1350 |
| Insertion Loss (dB) Single-mode Switch | ≤0.5, ≤1.0 |
| Insertion Loss (dB) Multimode Switch | ≤0.5 |
| Backreflection (dB) Single-mode Switch | ≤-60, ≤-50 |
| Backreflection (dB) Multimode Switch | ≤-40 |
| PER (dB) Single-mode Switch | N/A, ≥23 |
| PER (dB) Multimode Switch | N/A |
| Repeatability (dB) Single-mode Switch | ±0.005 |
| Repeatability (dB) Multimode Switch | ±0.005 |
| Crosstalk (dB) Single-mode Switch | <-80 |
| Crosstalk (dB) Multimode Switch | <-80 |
| Maximum Input Power (dBm) Single-mode Switch | 23 |
| Maximum Input Power (dBm) Multimode Switch | 23 |
| Switching Time (ms) Single-mode Switch | 300 |
| Switching Time (ms) Multimode Switch | 300 |
| Wavelength Range (nm) Power Meter 2mm InGaAs | 840 to 1700 |
| Wavelength Range (nm) Power Meter Integrating sphere (InGaAs) | 400 to 1650 |
| Power Range (dBm) Power Meter 2mm InGaAs | 8 to -80 |
| Power Range (dBm) Power Meter Integrating sphere (InGaAs) | 30 to -50 |
| Uncertainty at Ref Conditions Power Meter 2mm InGaAs | ±3.7% ±0.04±2nW (840 to 1200nm), ±2.7% ±0.04±5nW (1200 to 1650nm) |
| Uncertainty at Ref Conditions Power Meter Integrating sphere (InGaAs) | ±0.04±500pW (400 to 1200nm), ±0.04±5nW (1200 to 1650nm) |
| Linearity (dB) Power Meter 2mm InGaAs | ±0.03±20pW (840 to 1200nm), ±0.02±5pW (1200 to 1650nm) |
| Linearity (dB) Power Meter Integrating sphere (InGaAs) | ±0.04±500pW (400 to 1200nm), ±0.04±5nW (1200 to 1650nm) |
| Polarization Dependent Responsivity (dB) Power Meter 2mm InGaAs | 0.015 |
| Polarization Dependent Responsivity (dB) Power Meter Integrating sphere (InGaAs) | 0.015 |
| Averaging Time Power Meter 2mm InGaAs | 50μs to 1s |
| Averaging Time Power Meter Integrating sphere (InGaAs) | 50μs to 1s |
| Analog Output Power Meter 2mm InGaAs | 0 to 2.2V |
| Analog Output Power Meter Integrating sphere (InGaAs) | 0 to 2.2V |
| Data Logging Power Meter 2mm InGaAs | 128,000 points per detector |
| Data Logging Power Meter Integrating sphere (InGaAs) | 128,000 points per detector |
