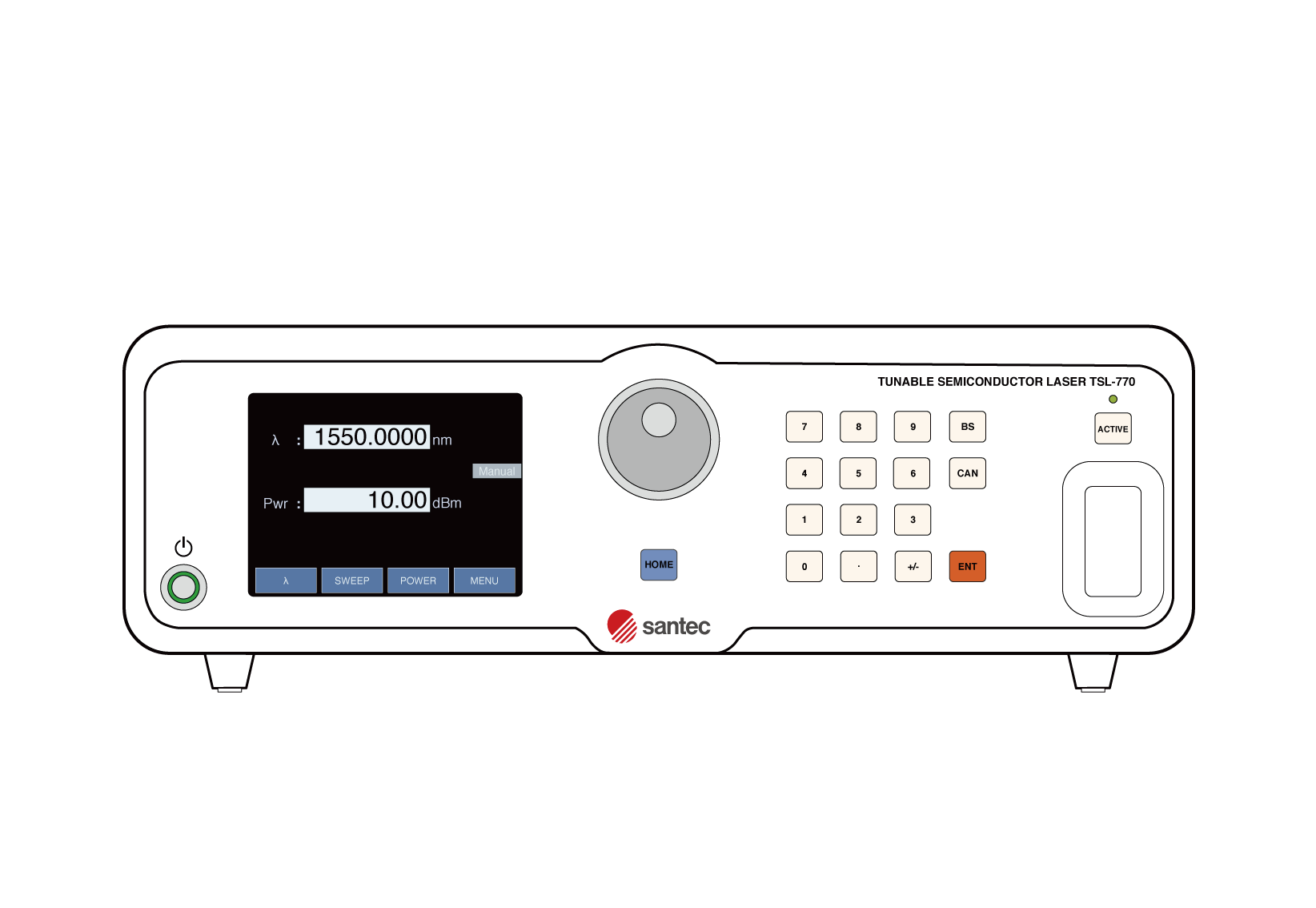

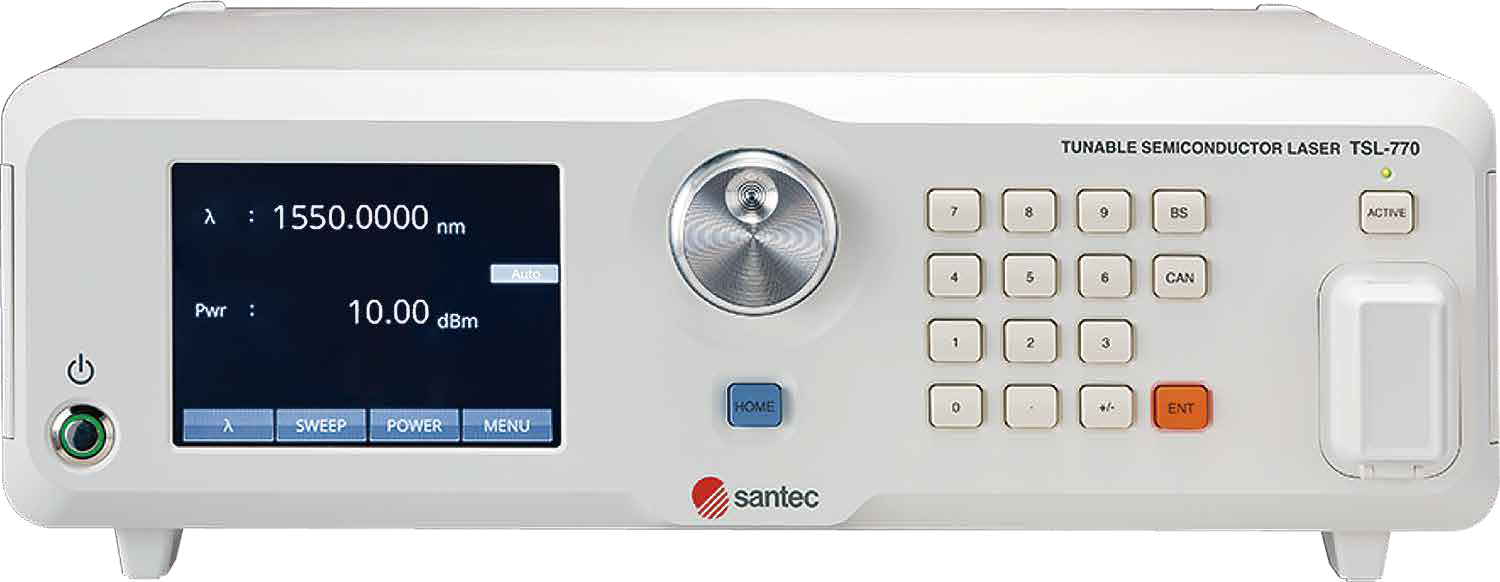

TSL-770
The TSL-770 is a high-performance tunable laser designed for advanced optical testing and research applications. It features a wide tuning range, ultra-low noise electronics, high output power, and narrow linewidth, making it suitable for precise and reliable measurements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

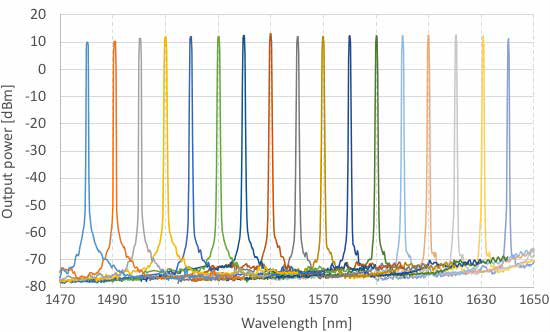

| Wavelength Tuning Range 480640 | 1480-1640nm |
| Wavelength Tuning Range 490630 | 1490-1630nm |
| Wavelength Setting Resolution | 0.1pm |

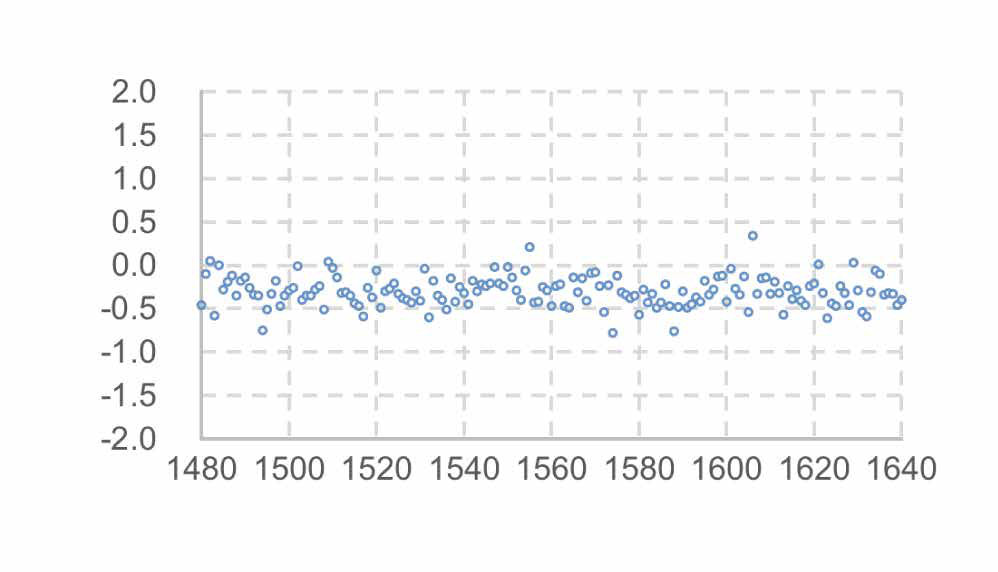

| Wavelength Absolute Accuracy (Operating Temperature) | ±1.5pm |
| Wavelength Repeatability | ±0.5±0.2pm |
| Wavelength Stability | <0.5pm (24 hours) |
| Sweep Speed | 200nm/s |
| Fine Tuning Scan Range | 10GHz |
| Output Power (Peak) | ≥13dBm |
| Output Power (Full Tuning Range) | ≥7dBm |
| Power Repeatability | ±0.01±0.002dB |
| Power Stability | ±0.01 (1 hour), ±0.02 (24 hours) dB |
| Power Flatness vs. Wavelength | ±0.2±0.05dB |
| Relative Intensity Noise (RIN) | -145dB/Hz (1MHz to 3GHz) |

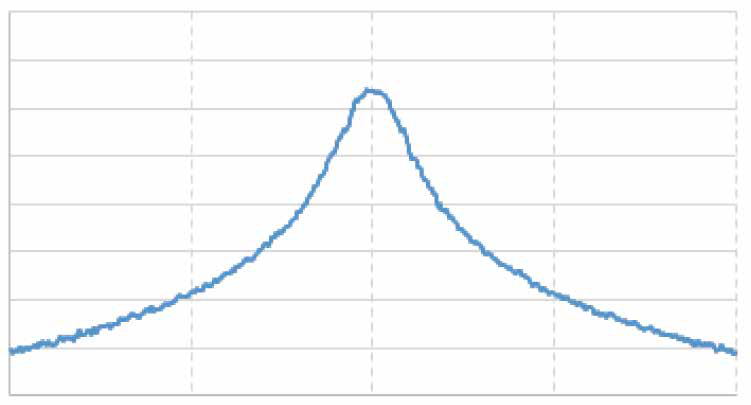

| Linewidth | <60kHz |

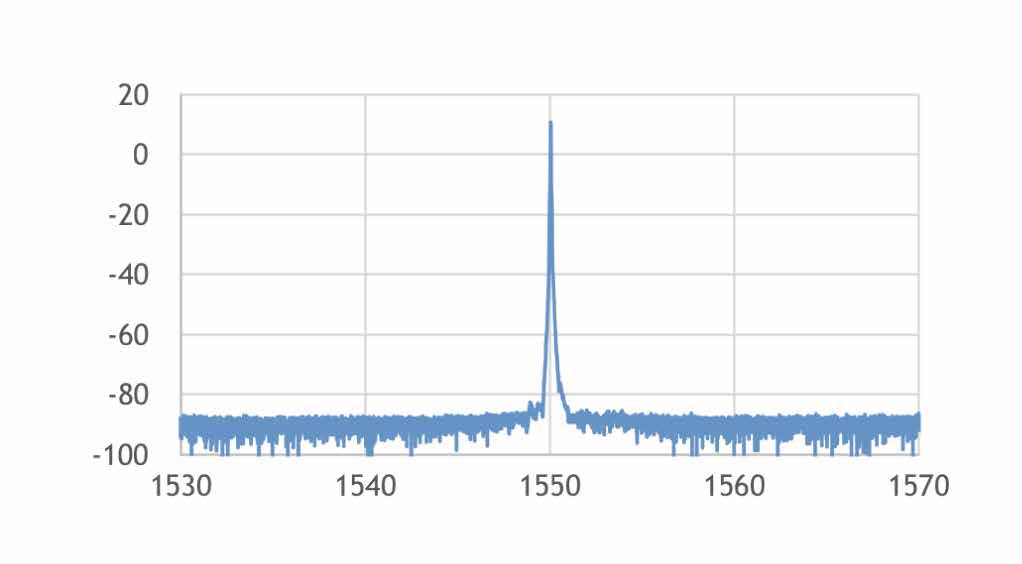

| Signal to Total Source Spontaneous Emission Ratio | ≥50dB |
| Signal to Source Spontaneous Emission Ratio | ≥80dB/nm |
| Optical Output Connector | FC or SC |
| Optical Output Connector | SPC or APC |
| Communication | GP-IB (IEEE488.2), USB, Ethernet |
| LF Modulation | DC to 400kHz |
| RF Modulation | 2 to 100kHz |
| Operating Temperature | 15 to 35°C |
| Operating Humidity | <80% (non-condensing) |
| Power Supply | AC100-240V (±10%), 50/60Hz |
| Power Consumption | 140VA |
| Dimensions (WxDxH) | 440x416x133mm |
| Weight | 16kg |
Applications
Key Features
Datasheet
