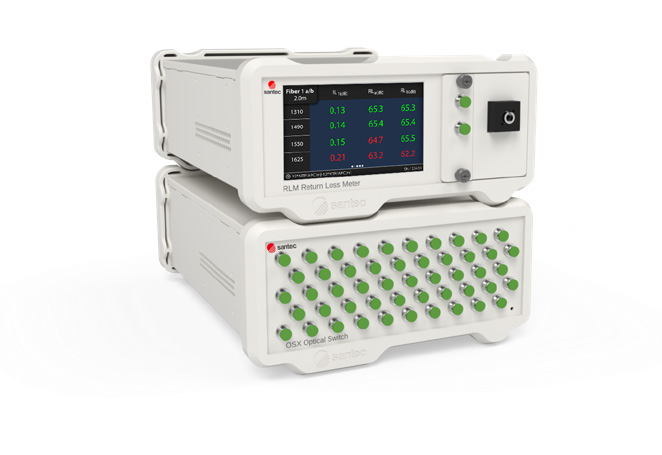

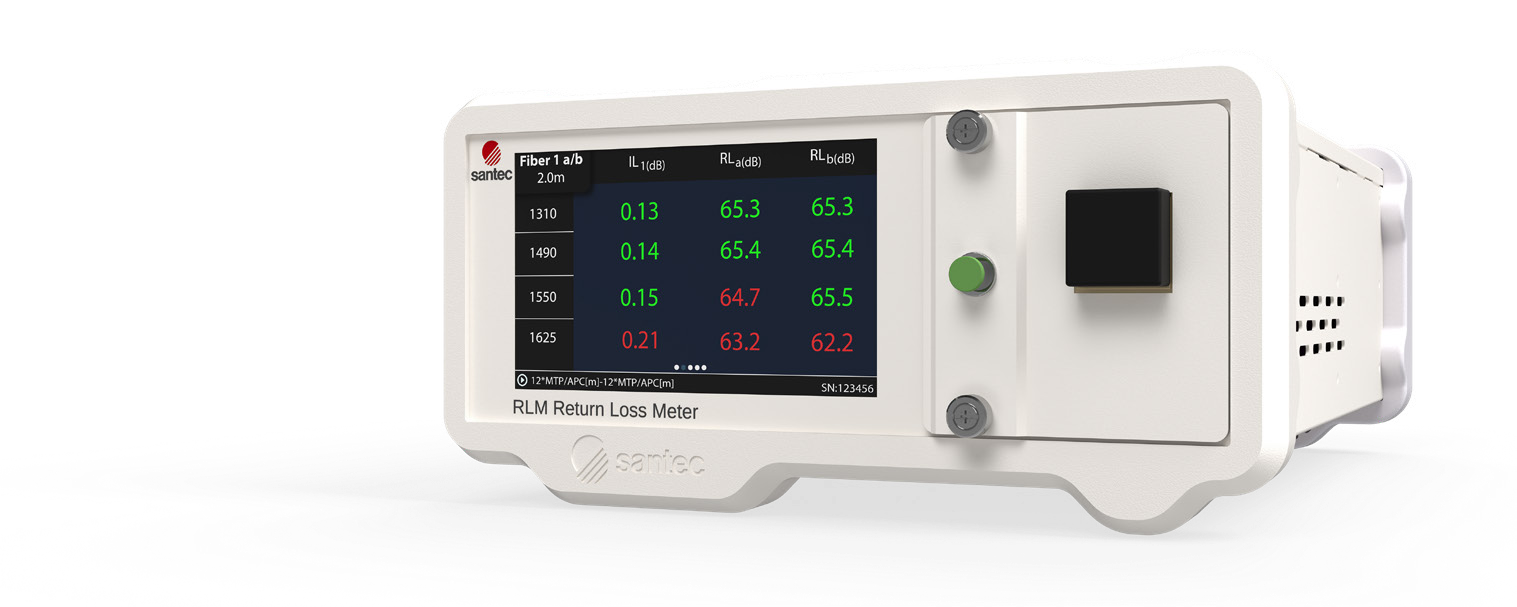

RLM-110 Return Loss Meter
The RLM-110 Return Loss Meter reflects over 25 years of leadership in the cable assembly testing market, incorporating extensive customer feedback. With ultra-fast mode, testing speed is three times faster than other premium solutions while maintaining high accuracy. It supports single-mode and multimode fiber testing, making it ideal for high-volume production and lab environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type | 9/125 (Single-mode), 50/125 and/or 62.5/125 (Multimode) |
| Encircled Flux Standard | N/A (Single-mode), IEC 61280-4-1 (Multimode) |
| Operating Wavelengths (nm) | 1310/1490/1550/1625/1650 (Single-mode), 850/1300 (Multimode) |
| Return Loss Range (dB) | 30 to 85 (Single-mode), 10 to 60 (Multimode) |
| Return Loss Accuracy (dB) | ±1.0 (30 to 70), ±1.3 (70 to 75), ±2.9 (75 to 80), ±3.9 (80 to 85) (Single-mode); ±1.4 (10 to 45), ±1.5 (45 to 50), ±2.0 (50 to 55), ±2.5 (55 to 60) (Multimode) |
| Insertion Loss Accuracy (dB) | ±0.03 (<5 dB loss), ±0.15 (>5 dB loss) |
| Testing Time (sec) | <1.0 per wavelength |
| Cable Assembly Length (m) | <4000 (Single-mode), <500 (Multimode) |
| Remote Interface | Ethernet/USB |
| Display | 5" touch screen |
| Input Voltage | 100-240VAC, 50-60Hz |
| Power Consumption (VA) | 60 maximum |
| Unit Dimensions W x H x D (cm) | 23.5 x 12 x 32.5 (2U half rack) |
| RD-S Wireless Remote-head Integrating Sphere Detector Dimensions W x H x D (cm) | 11 x 8 x 8.5 |
| Shipping Box Dimensions W x H x D (cm) | 36.5 x 39 x 53 |
| Unit Weight (kg) | 8 |
| Total Shipment Weight (kg) | 9 |
| Operating Temperature (°C) | 0 to 55 |
| Storage Temperature (°C) | -40 to 70 |
| Humidity (non-condensing) | Maximum 95% RH from 0 to 40°C |
