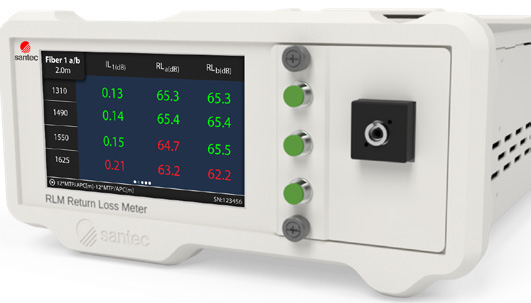

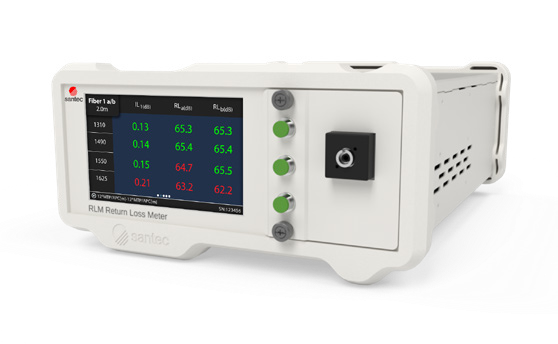

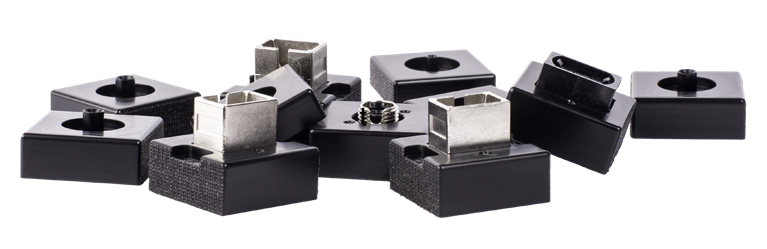

RLM-100 Return Loss Meter
The RLM-100 Return Loss Meter is a high-precision device designed for testing insertion loss (IL) and return loss (RL) in fiber optic cable assemblies. It features advanced self-calibration, fast and standard testing modes, and a redesigned integrating sphere detector for high throughput testing. The device is ideal for production environments and labs, offering ease of use with a touchscreen interface and compatibility with various fiber types and connectors.
Save to Favorites
Overview
Specifications

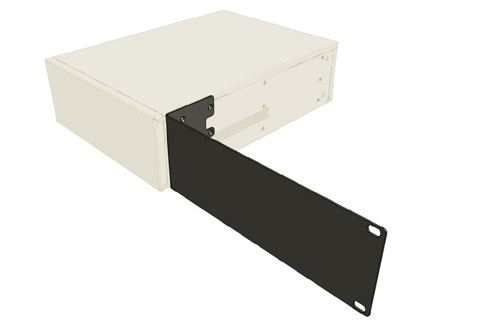

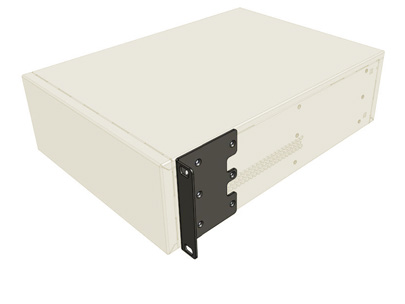

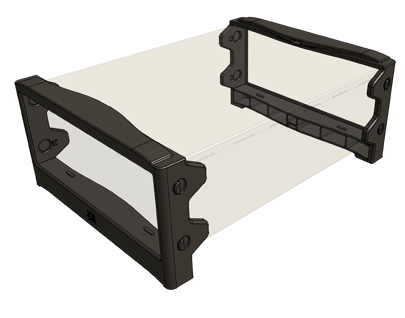

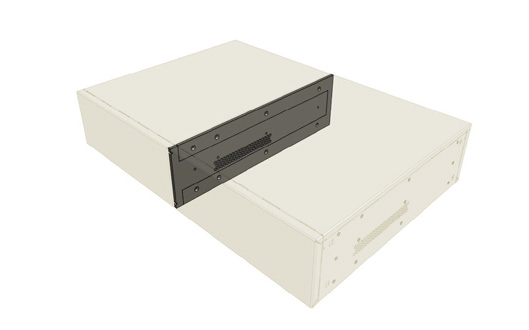

| Parameter | Value |
|---|---|
| Fiber Type Single-mode | 9/125 |
| Fiber Type Multimode | 50/125 and/or 62.5/125 |
| Encircled Flux Standard Single-mode | N/A |
| Encircled Flux Standard Multimode | IEC 61280-4-1 |
| Operating Wavelengths (nm) Single-mode | 1310/1490/1550/1625 |
| Operating Wavelengths (nm) Multimode | 850/1300 |
| Source Type Single-mode | FP Laser |
| Source Type Multimode | LEDs/FP Laser |
| Return Loss Range (dB) Single-mode | 30 to 85 |
| Return Loss Range (dB) Multimode | 10 to 60 |
| Return Loss Accuracy (dB) Single-mode | ±1.0 (30 to 70), ±1.3 (70 to 75), ±2.9 (75 to 80), ±3.9 (80 to 85) |
| Return Loss Accuracy (dB) Multimode | ±1.4 (10 to 30), ±1.9 (30 to 40), ±2.2 (40 to 43), ±4.7 (43 to 60) |
| Detector Type | Wide Area Integrating Sphere |
| Insertion Loss Accuracy (dB) | ±0.03 (<5 dB loss), ±0.15 (≥5 dB loss) |
| Testing Time (sec) Standard Mode | <5 per wavelength |
| Testing Time (sec) Fast Mode | <1.5 per wavelength |
| Cable Assembly Length (m) RL mode | <4000 |
| Cable Assembly Length (m) RL_L mode | <4000 |
| Remote Interface | Ethernet/USB |
| Display | 5" touchscreen |
| Input Voltage | 100-240VAC, 50-60Hz |
| Power Consumption | 80 maximum |
| Unit Dimensions W×H×D (cm) | 23.5×12×32.5 (2U half rack) |

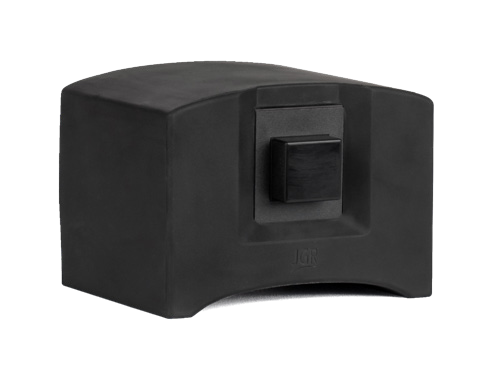

| RD-S Remote-head Integrating Sphere Detector Dimensions W×H×D (cm) | 11×8×8.5 |
| Shipping Box Dimensions W×H×D (cm) | 36.5×39×53 |
| Unit Weight (kg) | 8 |
| Total Shipment Weight (kg) | 9 |
| Operating Temperature (°C) | 0 to 55 |
| Storage Temperature (°C) | -40 to 70 |
| Humidity (non-condensing) | Maximum 95% RH from 0 to 40°C |
